Snapper FRP216012E (82401) - 21" Walk-Behind Mower, 6 HP, Steel Deck, Electric Start, Series 12 Handles & Controls (Swivel Wheel Model) Ricambi

SCHRAUBE, 5/16-18X .75WD

Articolo numero:
BS9357MA
Posizione:
49
5.15 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

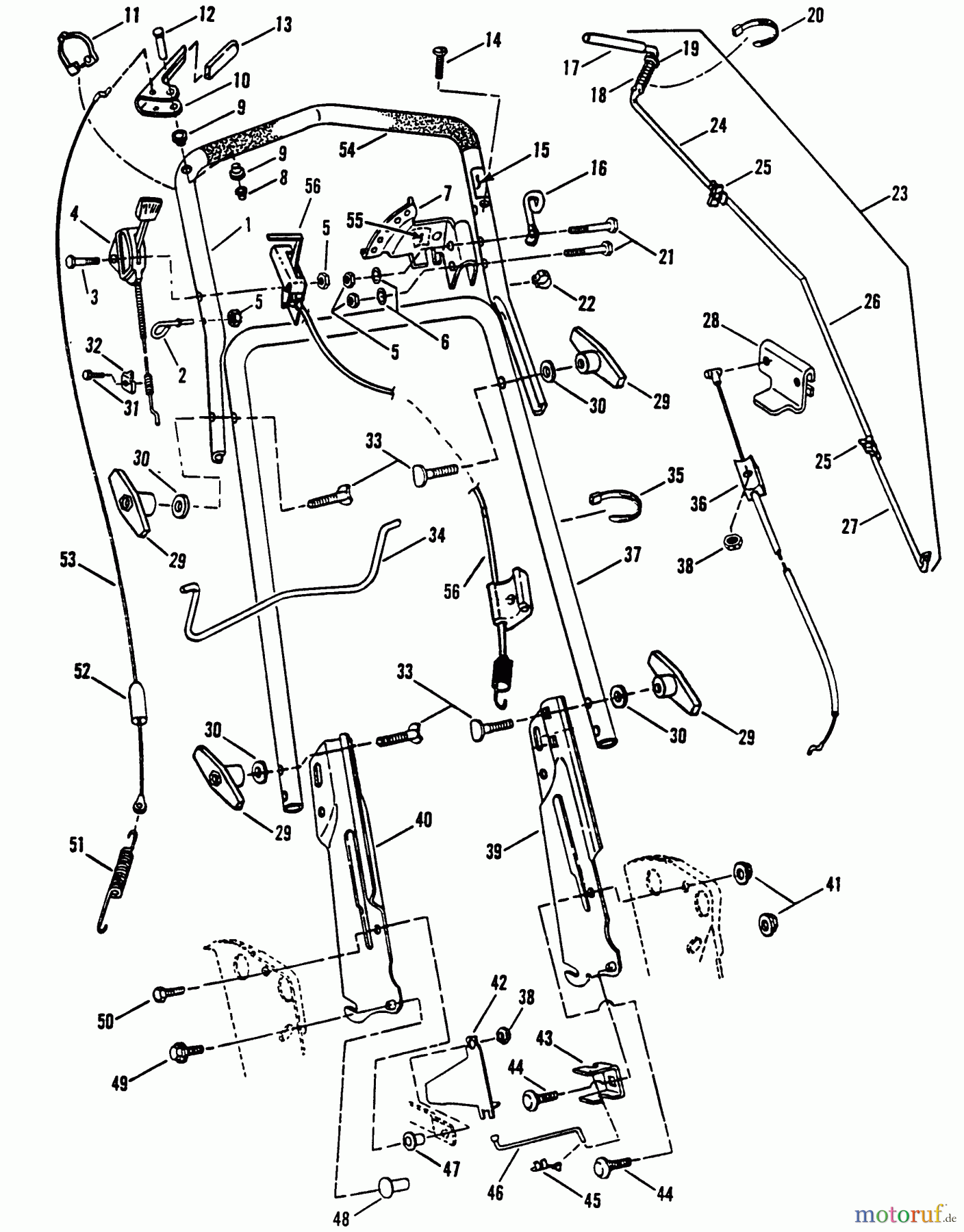

Snapper Rasenmäher FRP216012E (82401) - Snapper 21
PosizioneArticolo numeroDescrizione
1 BS7046914YPHANDLE, UPPER, SWIVEL
2 BS7046465SMROPE GUIDE
3 BS7091813SMCAPSCREW, HEX HD
4 BS7029036YPTHROTTLE CONTROL
5 BS703127MUTTER
6 BS703462U.-SCHEIBE, 1/4
7 BS7038478YPSECTOR, SPEED
8 BS704005PUSHNUT, CAP, 1/4
9 BS7014343YPLAGERBUCHSE
10 BS7074473BMYPHANDLE, CLUTCH
11 BS7026219YPCLAMP, DOUBLE CABLE
12 BS7023792YPPIN
13 BS7014307YPGRIFF
14 BS7090545YPRHMS, 5/16F X1-1/2 GR
15 BS7024211YPDECAL, BLADE CONTROL
16 BS7022779YPBRKT, PULL ROPE
17 BS7023801YPGRIP
18 BS7012093YPFEDER, V21
19 BS703350U-SCHEIBE, 5/16
20 BS7024649YPWIRE TIE, 11 INCH STD
21 BS7079577YPHHCS, 1/4C X1-1/2
22 BS7023813SMCLIP, WIRING HARNESS
23 BS7029217YPROD ASMY, CONT,W/H
24 BS7029217
25 BS7029161YPWING NUT, 1/4"-20 (BL
26 BS7029217
27 BS7029217
28 BS7033904YPCLIP, ZONE CONTROL
29 BS703065WINGKNOB, 5/16-18
30 BS703587WASHER, 5/16
31 BS7023154YPSCREW, B&S, 94694
32 BS7023153YPCLAMP, B&S, 213146
33 BS1960723SMBOLT - RD HD
34 BS7024978YPBAIL, BRAKE
35 BS7024641YPKABELVERBINDUNG
36 BS7025036YPCONTROL, ZONE
37 BS7024890YPHANDLE, MID, 21S
38 BS7091606SMHCLN, 5/16F YZ
39 BS7033985AYPHANDLE, LOWER, LH
40 BS7033986AYPHANDLE, LOWER, RH
41 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
42 BS7032408YPBELT GUIDE
43 BS7034892YPLEVER, ANCHOR, YELLOW
44 BS7090799SMRHSSNB, 5/16C X5/8 GR
45 BS7010937YPCLIP
46 BS7023790YPROD, TRANSFER
47 BS7012114SMBUSHING, DIFF.
48 BS7090895YPT-NUT, 5/16C
49 BS9357MASCHRAUBE, 5/16-18X .75WD
50 BS7090238SMHHCS, 5/16F X1 GR5 BZ
51 BS7012122YPFEDER
52 BS7012121
53 BS7025013YPCABLE, CLUTCH ASMY
54 BS7022460YPFOAM GRIP, 21 BBC
55 BS7024087
56 BS7072023YPCONTROL, SWIVEL
