Snapper V21XP - 21" Walk-Behind Mower, 3.5 HP, Cast Deck, Side Discharge, Series VX Transmission Assembly Ricambi

Name: WHEEL ARM,FRONT
Price: 10.92 EUR

WHEEL ARM,FRONT

Articolo numero:

BS7031017YP

Posizione:

10.92 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

in magazzino

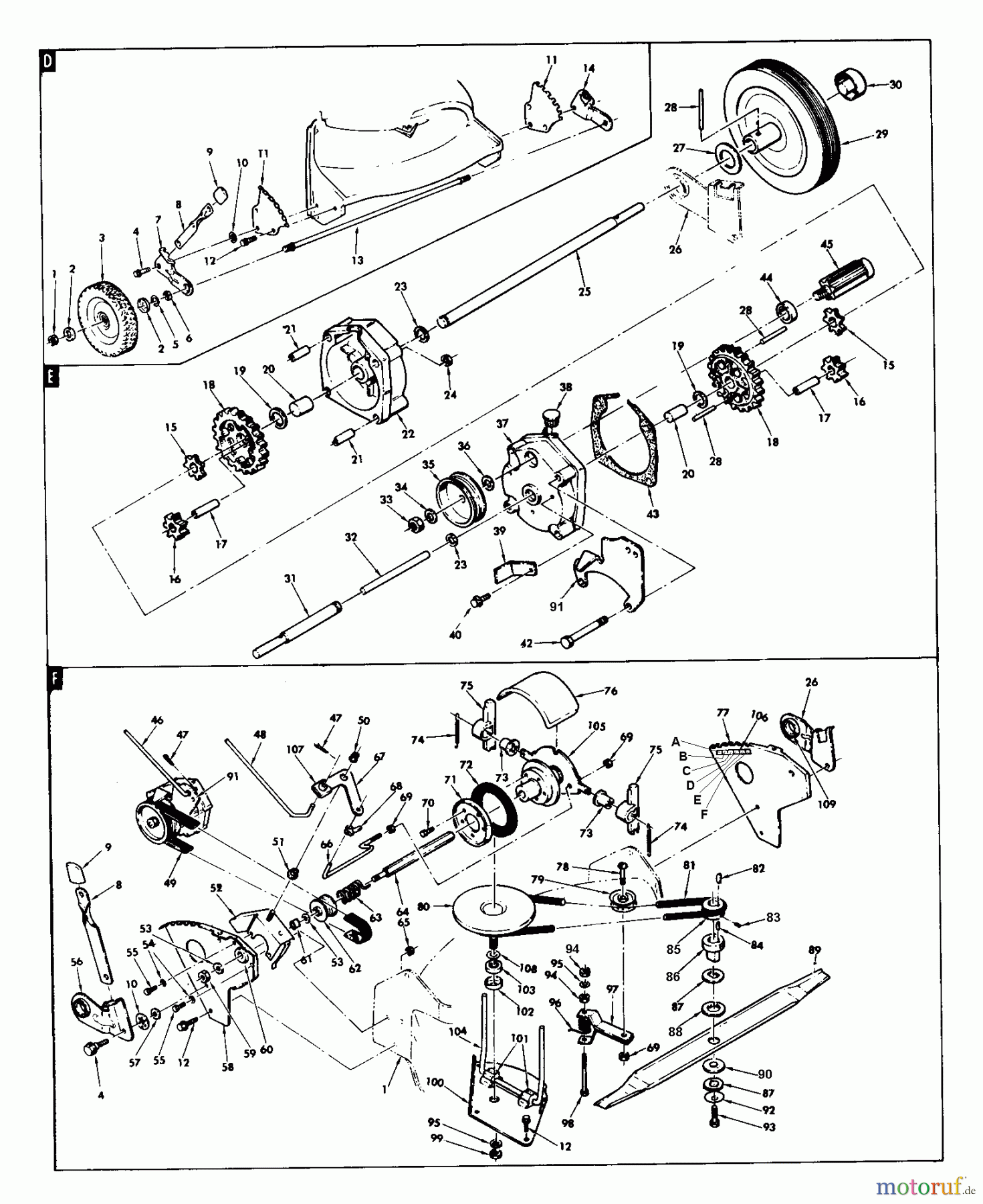

Posizione	Articolo numero	Descrizione
1	BS703348	MUTTER,7/16-20
2	BS7031121YP	HUBCAP, V21
3	BS10183
4	BS703840	BOLT,SHLDR 5/16-18X1
5	BS7011079YP	WASHER, CURVED, .45X.
6	BS7011103YP	SPACER, .545 OD X .43
7	BS7031017YP	WHEEL ARM,FRONT
8	BS10921
9	BS7011093YP	GRIP, HT V21 #
10	BS703297	RETAINER, GR5, 5/16
11	BS7037300YP	WHEEL BRKT F
12	BS703949	SCHRAUBE, 5/16-18.625
13	BS7021119YP	AXLE, V21
14	BS7031016YP	WHEEL ARM, FRONT LH
	BS7050263YP	LONG AXLE ASSY ##
15	BS7021116
16	BS7021115YP	GEAR, DIFF. PINION
17	BS7011110YP	SHAFT, V21
18	BS10919
19	BS7020938YP	WASHER, SHIM, 5/8
20	BS7010932YP	BEARING, BRONZE
21	BS7010826
	BS7057249YP	OB HOUSING
22	BS18050
23	BS7011179YP	DICHTUNG
24	BS703972	NUT, HEX TOP, 1/4-28
25	BS21131
26	BS7031019YP	WHEEL ARM, RL, V21
27	BS7010935SM	FW, .77X1.13X.06
28	BS7010172YP	ROLL PIN
29	BS7010945YP	STAHLRAD
30	BS7011113YP	HUBCAP, REAR
	BS7050262YP	SHORT AXLE ASSY
31	BS21130
32	BS7021132YP	SHAFT, V21
33	BS7090377
34	BS7011079
35	BS7010936YP	PULLEY, TRANSMISSION,
36	BS703940	U.-SCHEIBE, .445IDX.78OD
	BS7057250YP	IB HOUSING
37	BS18048
38	BS703931	PLUG, TRANSMISSION
39	BS31289
40	BS703054	SCHRAUBE, 1/4-20X0.625
?41	BS37340
42	BS7090487
43	BS7011774YP	DICHTUNG, V21
44	BS7073963YP	BEARING, BALL
45	BS7050767YP	INPUT GEAR ASSY.
46	BS11799
47	BS7091598SM	COTTER PIN, 1/8X3/4 Y
48	BS11801
49	BS7011117YP	ANTRIEBSRIEMEN, PV200J6
50	BS7010969YP	MUTTER, 5/16F ZP
51	BS11114
52	BS47352
53	BS7011731
54	BS90051
55	BS7091819
56	BS7032722YP	WHEEL ARM, REAR RH
57	BS703350	U-SCHEIBE, 5/16
58	BS7037308YP	WHEEL BKT RR
59	BS703458	MUTTER, 3/8-24
60	BS7010756YP	KUGELLAGER
61	BS7011726YP	SPACER, FLEX
62	BS21114
63	BS11118
64	BS7021117YP	SHAFT, HEX
65	BS7090197YP	HJN, 5/16C ZP #
66	BS10930
67	BS31015
68	BS7010937YP	CLIP
69	BS7090303
70	BS704060	SCREW,HEX, #10-24X.5
71	BS7031013YP	PLATE, SIDE, DR TIRE
72	BS704059	RING, 3IDX4ODX.56THK
73	BS11115
74	BS7011126YP	SPRING, EXTENSION
75	BS11109
76	BS7011119YP	ABDECKUNG, V21P
77	BS7037309YP	WHEEL BKT LR
78	BS7090387YP	FHMS, 1/4F X1-1/4
79	BS1716615SM	PULLEY, IDLER
80	BS7050634YP	DRIVE DISC V21
81	BS7010849YP	BELT, V21P
82	BS7010783YP	KEIL, HI-PRO, #505
83	BS7090471YP	HRSS, 1/4C X5/16
84	BS7010008YP	KEY, WOODRUFF, 5/32X5
85	BS21170
86	BS21018
87	BS7031122YP	WASHER, CLUTCH
88	BS7011796YP	WASHER, FIBER
89	BS7018193
90	BS7011102YP	WASHER, FIBER
91	BS37340
92	BS7011132YP	U.-SCHEIBE
93	BS703999	CAPSCREW, 3/8-24X2
94	BS7090289
95	BS703930	WASHER, INT LCK, 3/8
96	BS10947
97	BS7031936YP	IDLER, DECK
98	BS7090174
99	BS703895	NUT, HEX, 3/8-24
100	BS37310
101	BS10955
102	BS7031122
103	BS7011032YP	DICHTUNGSFILZSTREIFEN
104	BS11112
105	BS7050300YP	DRIVEN DISC ASY
106	BS11810
107	BS11116
108	BS703878	WASHER, FLAT
109	BS7026693YP	BEARING, 3/4" BORE
	BS7038391YP	SHIELD, MUFFLER
	BS7090457YP	ITLW, 13/16
	BS7011167YP	KEY, IGNITION V21, PA
	BS31141
	BS11770
	BS11789
	BS11790
	BS57081
	BS7011141
	BS7050620
