Snapper PPU140KVE - Wide-Area Walk-Behind Mower, 14 HP, Mid-Size Gear Drive, Series 0 48" Mower, Front Deck Ricambi

Name: (C) IDLER WELD, ENGIN
Price: 66.68 EUR

(C) IDLER WELD, ENGIN

Articolo numero:

BS7040655YP

Posizione:

66.68 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

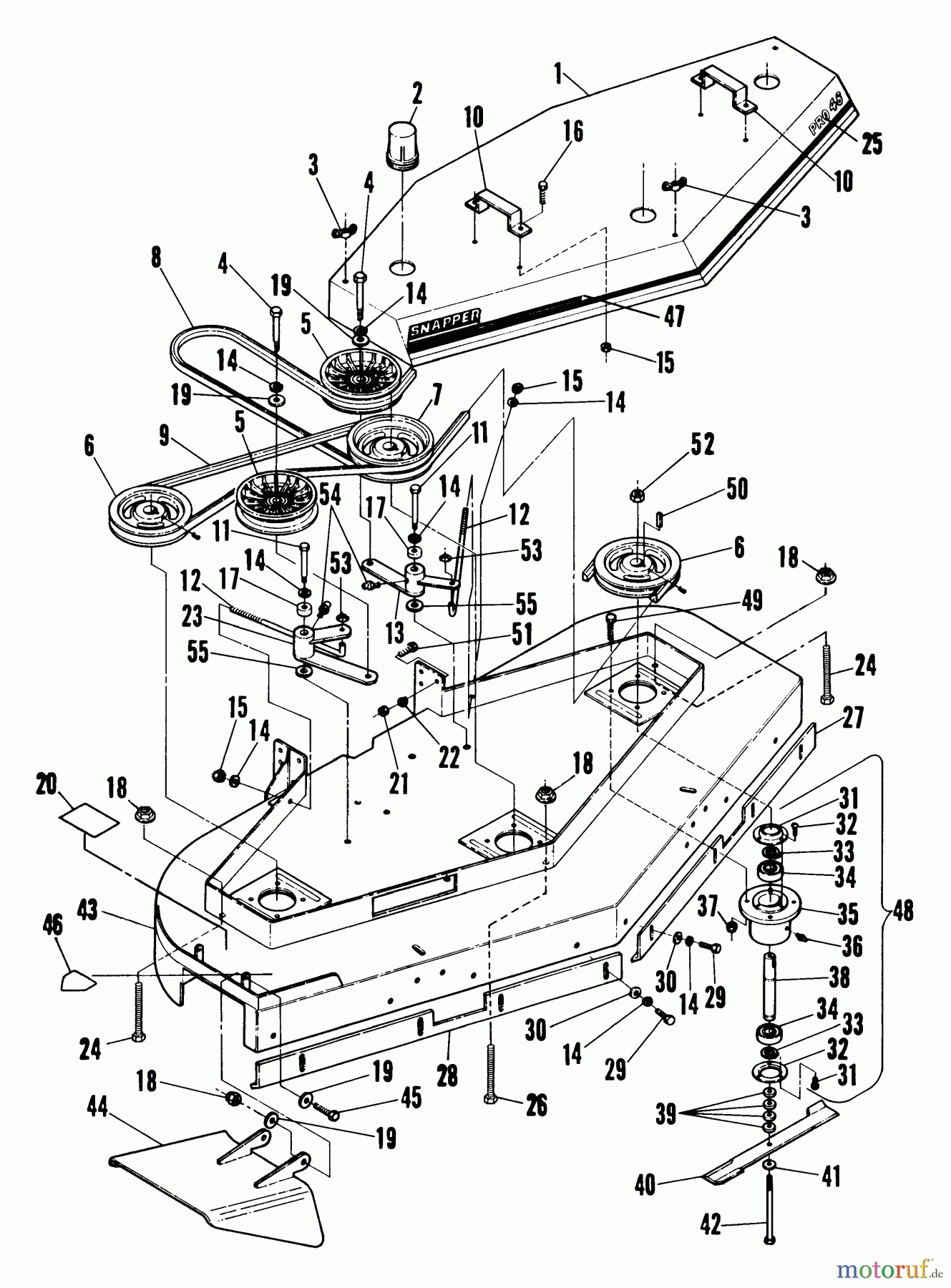

Snapper Rasenmäher für Großflächen PPU140KVE - Snapper Wide-Area Walk-Behind Mower, 14 HP, Mid-Size Gear Drive, Series 0 48

Posizione	Articolo numero	Descrizione
1	BS7052441
2	BS7019248YP	(C) CAP, SPINDLE
3	BS7091049SM	FLUGELMUTTER .375-16 NYLO
4	BS7091111YP	(C) HHCS, 3/8C X1-3/4
5	BS7024761YP	(C) PULLEY, IDLER, 5.
6	BS7019317YP	(C) PULLEY, 5.95 BS
7	BS7019320YP	(C) PULLEY, 5.95 BD
8	BS7029908YP	BELT, ENGINE TO 36"
9	BS7019205YP	(C) BELT, B/B 48
10	BS7033189
11	BS7091044
12	BS7016172YP	(C) ROD, 10-1/2
13	BS7040655YP	(C) IDLER WELD, ENGIN
14	BS703454	LOCKWASHER, SPLIT 3/8
15	BS7076978SM	HLN, 1/4C BZ
16	BS001X38MA	BOLT,HEX .25-20X0.62
17	BS7016173YP	DISTANZSCHEIBE
18	BS703333	MUTTER, 3/8-16
19	BS7090517SM	FW, .438X1X.084 YZ
20	BS7076533YP	DCL, CAUTION
21	BS7091316YP	HN, 1/2C GR.B YZ
22	BS90252
23	BS7040654YP	IDLER WLD B/B
24	BS7027169YP	(C) HHCS, 3/8C X5 GR5
25	BS7016909
26	BS7091131YP	(C) BOLT, TAP, 3/8C X
27	BS7032957
28	BS7032958
29	BS7091086YP	SCHRAUBE, 3/8-16 X 3/4
30	BS7091047YP	(C) FW, .406X1.5X.12
31	BS7019096YP	(C) CAP, CUTTER HOUSI
32	BS704060	SCREW,HEX, #10-24X.5
33	BS7023548YP	RETAINING RING
34	BS7019125YP	(C) BEARING
35	BS7027685YP	(C) HOUSING, CUTTER
36	BS7076997
37	BS703117	MUTTER
38	BS7019189YP	(C) SPINDLE, CUTTER
39	BS7076436YP	SPACER, 1.0 OD X.640
40	BS7017043YP	BLADE, 16.5 ML
41	BS7016440SM	SCHEIBE 656X1.875X.086
42	BS7016447YP	(C) HHCS, 5/8F X8-1/2
43	BS7040647
44	BS7040659YP	(C) WELD, DEFLECTOR ,
45	BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
46	BS7013010SM	DECAL-DANGER, CUT FIN
47	BS7017822
48	BS7052569
49	BS703871	KOPFSCHRAUBE,3/8-16X1.25
50	BS7091033YP	(C) KEY, SQUARE, 1/4X
51	BS7090622YP	HFLB, 1/2C X1-1/4 ZP
52	BS7076980YP	HN, 5/8C
53	BS7013946YP	ARRETIERUNG, RAD
54	BS703153	ZERK,GREASE FITTING
55	BS7016561YP	BUSHNG, MCH 1 X 1-1/2
