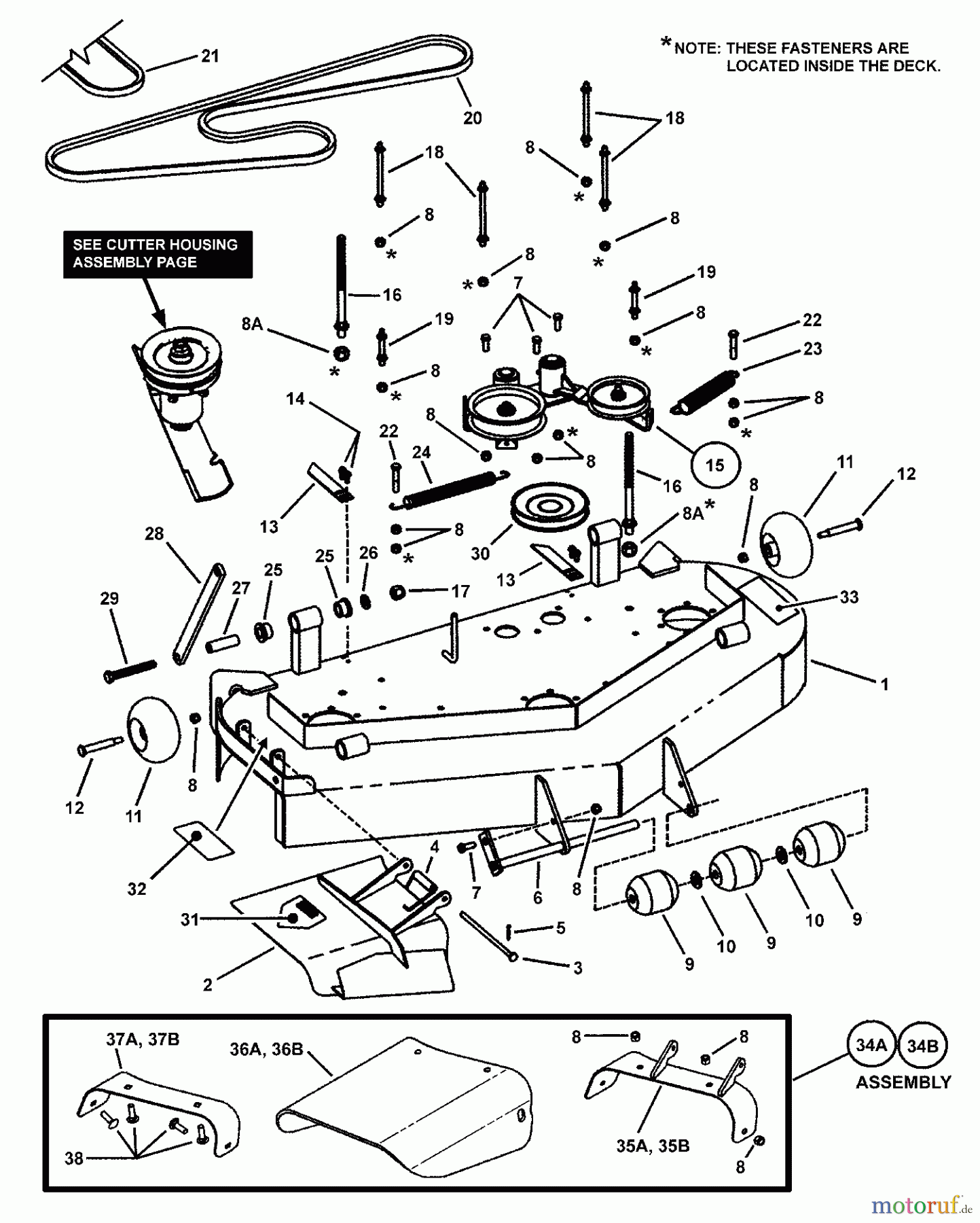

Snapper SPLH231KHE (84618) - Wide-Area Walk-Behind Mower, 23 HP, Hydro Drive, Loop Handle, Series 1 48", 52" & 61" MOWER DECK ASSY (Adj. Height) Pt.1 Ricambi

Name: SCHRAUBE, 1/4-20X0.625
Price: 4.94 EUR

SCHRAUBE, 1/4-20X0.625

Articolo numero:

BS703054

Posizione:

4.94 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

in magazzino

Posizione	Articolo numero	Descrizione
1	BS7063205YP	WELD, DECK, ADJUSTABL
1	BS7045133YP	(C) WELD, 52" DECK
1	BS7045165YP	61" DECK
2	BS7058873YP	(C) WELD, CHUTE, 48",
2	BS7044806YP	WELD, DISCHARGE CHUTE
2	BS7058291YP	CHUTE, DISCHARGE
3	BS7029277YP	PIN, HINGE, CHUTE
4	BS7027950YP	SPRING, CHUTE
5	BS7091313YP	SPLINT
6	BS7027327YP	(C) WELD, PIVOT PIN,
7	BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
8	BS703117	MUTTER
8A	BS703894	NUT, CNTR LCK, 1/2-13
9	BS7073142YP	ROLLER, DECK, BLACK
10	BS7027344SM	FW, .668X1.324X.098 Y
11	BS1700184SM	RAD - 2.60 BREIT 4.9
12	BS7029265SM	SCHRAUBBOLZEN, 3/8-16X3
13	BS7034965YP	(C) POINTER, H-O-C, Y
14	BS703054	SCHRAUBE, 1/4-20X0.625
15	BS7054023YP	(C) IDLER ASSY.
15	BS7054420
16	BS5600284YP	HUBSTANGE, KOMPL.
17	BS7091325YP	HLN, NYLON, 1/2C YZ
18	BS7029281YP	(C) STAND OFF, COVER,
19	BS7029280YP	(C) STAND OFF, COVER,
20	BS7029261YP	V-BELT, SECON 48
20	BS7029266YP	V-BELT, SECON 52
20	BS7029268YP	V-BELT, SECON 61
21	BS7029262YP	V-BELT, PRIMARY, 48
21	BS7042813YP	V-BELT, SPA520
21	BS7042735YP	(C) V-BELT, PRIMARY,
22	BS7091305SM	HHCS, 3/8C X2 GR5 YZ
23	BS7029278YP	(C) SPRING, IDLER
24	BS7072915YP	(C) SPRING, EXT, 10"
24	BS7029272SM	SPRING, IDLER PRIMARY
25	BS7029258YP	BUSHING, SUSPENSION
26	BS7091587SM	UNTERLAGSCHEIBE, .531X1.062X.1
27	BS7029263YP	SLEEVE, SUSPENSION
28	BS7034964YP	(C) ARM, SUSPENSION,
28	BS7034979YP	(C) ARM, SUSPENSION,
29	BS7029355YP	HHCS, 1/2C X3-3/4
30	BS7029249YP	PULLEY, DRIVEN, 52
30	BS7029250YP	(C) PULLEY, DRIVEN, 6
31	BS7013010SM	DECAL-DANGER, CUT FIN
32	BS7073647YP	(C) DECAL, CAUTION
33	BS7024156
	BS7054011YP	SPINDLE ASMY
34A	BS7050513
34B	BS7500231
35A	BS7050590YP	WELD, CHUTE, 48
35B	BS7400008YP	WELD, DISCHARGE CHUTE
36A	BS7100621YP	CHUTE, 48
36B	BS7100623YP	CHUTE, 52
37A	BS7078133YP	DEFLECTOR, BOTTOM
37B	BS7300036YP	DEFLECTOR, BOTTOM, 52
38	BS703130	BOLZEN
