Articolo numero:
BS7018957
Posizione:
34
non più disponibile

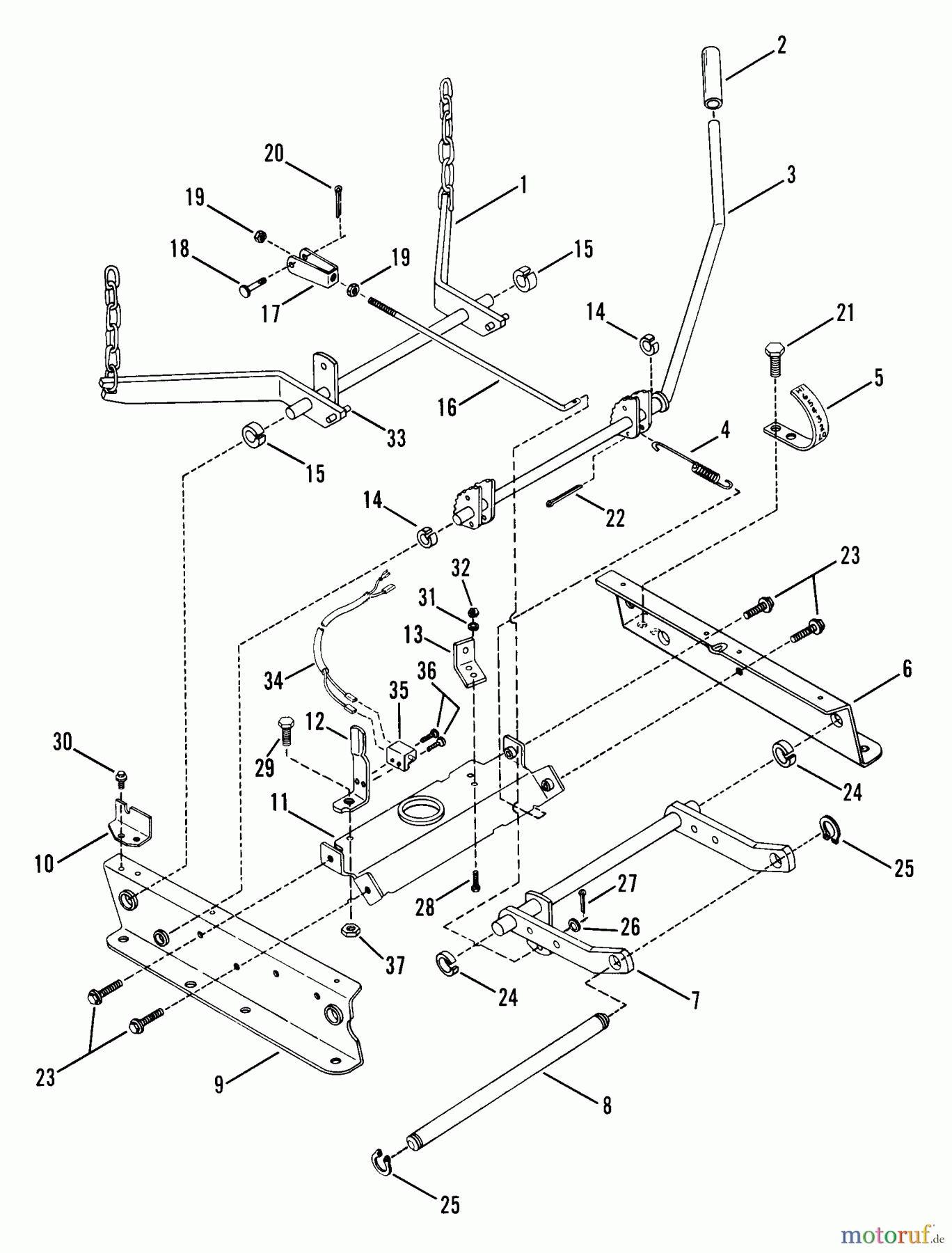

Snapper Rasenmäher für Großflächen Y30080 (88027) - Snapper 30
PosizioneArticolo numeroDescrizione
1 BS7057283YPREAR LIFT ARM ASSY, 2
2 BS7010684YPGRIP, DECK LEVER
3 BS7042641YPWELD, CAM, DECK LIFT
4 BS7011074
5 BS7031975YPPLATE, INDICATOR
6 BS7037709YPRAIL, SIDE, LH
7 BS7047710YPWELD, FRONT LIFT ARM,
8 BS7020882YPROD, SUPPORT
9 BS7037710YPRAIL, SIDE, RH
10 BS7032561YPBRKT, CABLE
11 BS7031838BMYPBRACE, TOP ECOAT
12 BS7032600YPBELT GUIDE
13 BS7032243YPSICHERUNGSBOLZEN
14 BS7023791YPRING, SPLIT
15 BS7012068YPRING, HEBEARM HINTEN
16 BS7012030YPROD, TIMING
17 BS7031837YPCONTROL, CLEVIS, CLEA
18 BS7029687YPCLEVIS PIN, 3/8X1-1/1
19 BS703895NUT, HEX, 3/8-24
20 BS703312PIN, COTTER, 3/32X.75
21 BS7090292YPHHCS, 3/8F X3/4 ZP
22 BS7091516SMSPLINT, 5/32X1 YZ
23 BS7090324SMHWST, 3/8C X1 BZ
24 BS7012067YPRING, HEBEARM VORN
25 BS7010739SMRETAINING RING, EXT,
26 BS703878WASHER, FLAT
27 BS7091598SMCOTTER PIN, 1/8X3/4 Y
28 BS7090233YPHHCS, 5/16F X3/4 GR5
29 BS9357MASCHRAUBE, 5/16-18X .75WD
30 BS7091122
31 BS703587WASHER, 5/16
32 BS703331MUTTER, 5/16-24
33 BS7010737YPROLL PIN, 3/8X1-1/4
34 BS7018957
35 BS7014847YPSWITCH (NO)
36 BS704060SCREW,HEX, #10-24X.5
37 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
