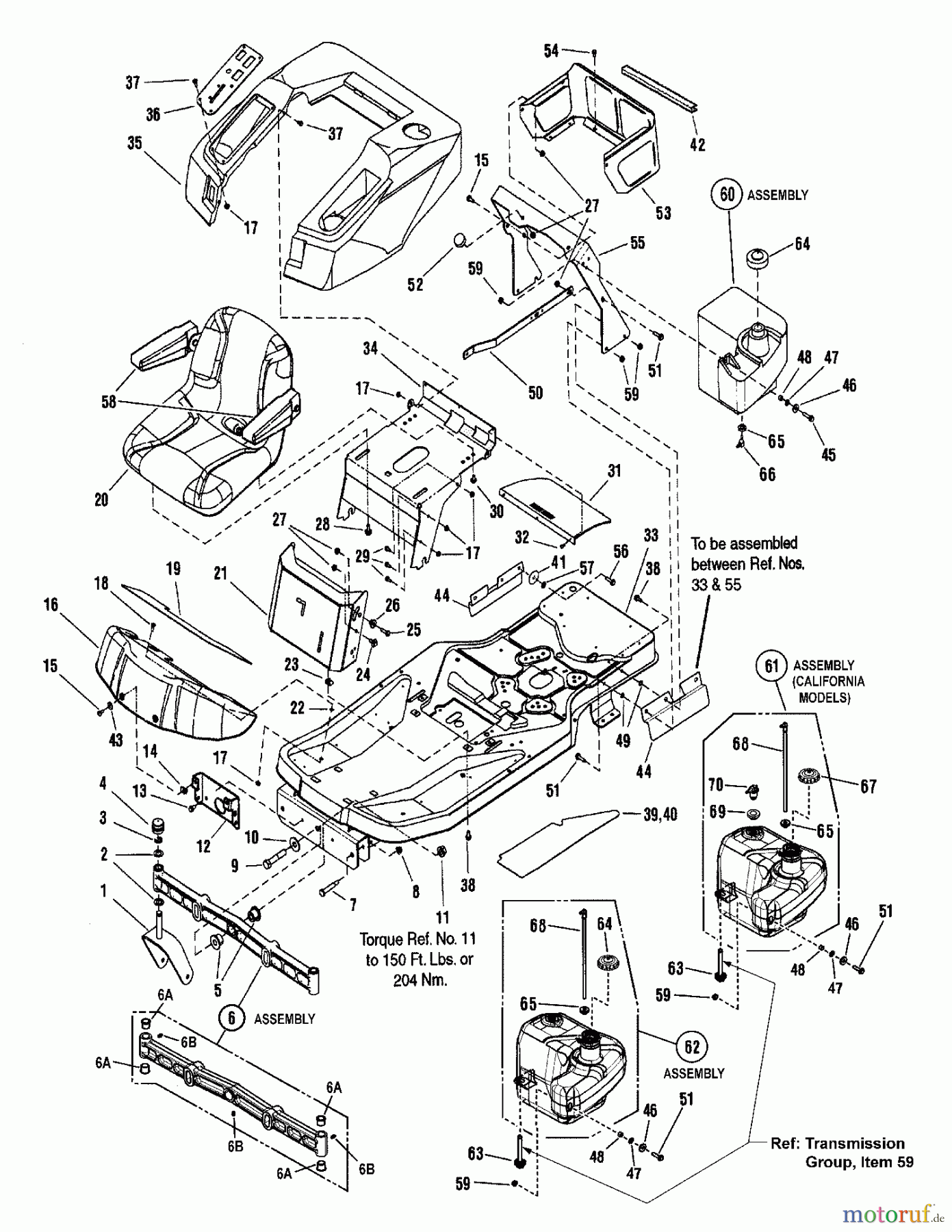

Snapper Nullwendekreismäher, Zero-Turn SC18533 (7800269) - Snapper 33

Posizione	Articolo numero	Descrizione
1	BS1733448BMYP	CASTER ASSY
2	BS1960160SM	WASHER-0.750(0.75IDX1
3	BS1611710SM	RING-KLIPRING EXT FOR
4	BS1734135SM	KAPPE - BUCHSE 1.48ID.62LG
5	BS1730186SM	ACHSBUCHSE
6	BS1733426A
6A	BS2176440SM	BUCHSE-0.765IDX
6B	BS1704314SM	SCHMIERNIPPEL 250 DR
7	BS1733571SM	SCHULTERBOLZEN
8	BS703158	MUTTER
9	BS2860744SM	VERSCHLUSSCHRAUBE HD 5/8
10	BS1960035SM	SCHEIBE 0.625(0641DX1
11	BS2860646SM	BUNDMUTTER HD 5/8-11
12	BS1733304ASM	HALTER VORN
13	BS703949	SCHRAUBE, 5/16-18.625
14	BS1960368SM	NUT-SPEED 1/4-20 LUG
15	BS703585	CAPSCREW, 5/16-18X1
16	BS1726025DSM	PANEL-FOOTREST 18GA Z
17	BS1960694SM	NUT-HEX FLANGE 1/4-2
18	BS1931317
19	BS1726306SM	FU?MATTE
20	BS1726018SM	SITZ KOMPL.
21	BS7300752AYP	PANEL, VORN-MANUELL
22	BS703826	BOLT, PUSHNUT 1/4
23	BS1935255SM	NUT, SPEED, 5/16-18 L
24	BS009X67MA	ANSATZBOLZEN
25	BS1960223SM	BOLZENACHSE HD SH SQ NK5
26	BS1728086SM	HAUBENSTIFT METALL
27	BS703409	MUTTER, 5/16-18, GR5
28	BS1716654SM	BOLZEN 5/16-18.0
29	BS1960715SM	SCHRAUBE - TRUSS HD
30	BS9357MA	SCHRAUBE, 5/16-18X .75WD
31	BS7102141SM	ABSCHIERMUNG SITZ DECK
32	BS1673320SM	POPNIET 188D. 617L
33	BS1735028AYP
33	BS1733227ASM	RAHMEN KOMPL.
34	BS1733965ASM	AUFSATZ SITZ
35	BS1734145SM	SEAT DECK - PLASTIC
36	BS1734252ASM	BEDIENPLATTE
36	BS7301055BMYP	PLATE, CONTROL
37	BS1960715
37	BS1935450SM	CAPSCREW-HEX WSHR HD
38	BS7091591SM	BOLZEN, /16C X1 GR5 YZ
39	BS1728986SM	FU?MATTE RECHTS SCHWARZ
40	BS1728987SM	FU?MATTE LINKS SCHWARZ
41	BS1960534SM	SCHEIBE-0.375(0.41IDX1
42	BS1735680SM	ZIERLEISTE, 8"
43	BS703138	U-SCHEIBE
44	BS1734392ASM	FREMDKORBERSCHUTZ
45	BS7091540YP	SECHSK.SCHRAUBE, 5/16-18
46	BS703298	U-SCHEIBE, GR5, 5/16
47	BS703936	WASHER, .325IDX.850OD
48	BS7024340SM	DISTANZSTUCK
49	BS703297	RETAINER, GR5, 5/16
50	BS1734323ASM	HALTEBAND KRAFTSTOFFT.
51	BS1921977SM	CAPSCREW - HEX HD
52	BS1726390SM	GUMMIPUFFER 1.50DIA
53	BS7301146AYP	HALTER, ABDECKBL. HINTEN
54	BS1925003
55	BS1733393ASM	AUFSATZ SITZ
56	BS703871	KOPFSCHRAUBE,3/8-16X1.25
57	BS1931942SM	NUT-PUSH PAL .375 DIA
58	BS1687021SM	ARMLEHNE KIT-MICHIGAN
59	BS703115	MUTTER
60	BS7102860YP	BENZINTANK
61	BS7102688
62	BS7102378SM	TANK KOMPL.
63	BS703873	KOPFSCHRAUBE,3/8-16X2.5
64	BS1734320SM	CAP, FUEL
65	BS1654930SM	VENTILDECKEL
66	BS1674792SM	KRUMMER GAS
67	BS7102956YP	CAP ASSY, RATCHET
68	BS7102690YP	TUBE, PICKUP
69	BS209043
70	BS7104263
