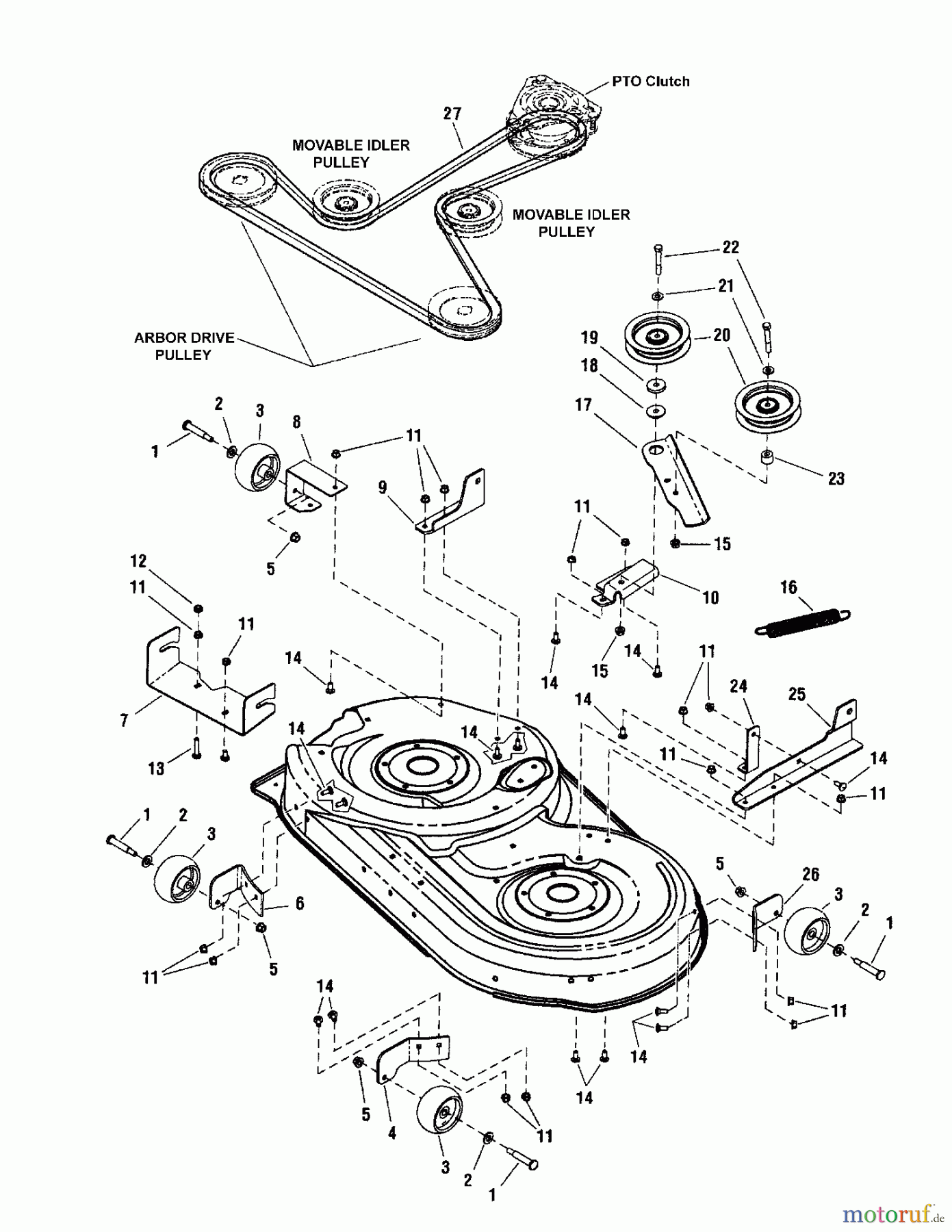

Snapper SC2450 (7800391) - 50" Zero-Turn Mower, 24HP, Twin Stick, ZTR 150Z Series 42" Mower Deck - Clutch & Support Group Ricambi

Name: MUTTER
Price: 4.94 EUR

MUTTER

Articolo numero:

BS703158

Posizione:

4.94 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

Posizione	Articolo numero	Descrizione
1	BS2108765SM	RADBOLZEN 3/8-16X2.7
2	BS703853	WASHER, 0.516IDX1OD
3	BS1714760SM	RAD AUFNAHME
4	BS1732258BMYP	HALTER, LAUFROLLENRAD VORN LIN
5	BS703158	MUTTER
6	BS1734344BMYP	HALTER, LAUFROLLENRAD VORN REC
7	BS1733578BMYP	ANHANGUNG, VORN 42
8	BS1734185BMYP	HALTER, JUSTIER.RAD
9	BS1733576BMYP	AUFNAHME, MAHER 42 RECHTS
10	BS1734242BMYP	BRKT, FIXED IDLER
11	BS703409	MUTTER, 5/16-18, GR5
12	BS704067	NUT, HEX FLNG,5/16-18
13	BS002X97MA	BOLT, CARR 5/16
14	BS703185	RHSSNB
15	BS703333	MUTTER, 3/8-16
16	BS1733844SM	FEDER 1.03 ODX
17	BS1734243BMYP	ARM, IDLER
18	BS1714255SM	DISTANZSTUCK-0.406ID 1.50 O
19	BS1960534SM	SCHEIBE-0.375(0.41IDX1
20	BS1732360SM	PULLEY-IDLER 04.00 OD
21	BS703878	WASHER, FLAT
22	BS703872	KOPFSCHRAUBE,3/8-16X2.25
23	BS1667812SM	DISTANZBUCHSE
24	BS1733577BMYP	SUPPORT, BRACE
25	BS1733575BMYP	SUPPORT, MOWER REAR,
26	BS1731403ASM	RADAUFNAHME
27	BS1732966SM	KEILRIEMEN 98.00
