Snapper Z2003K (80464) - 20 HP Zero-Turn Mower, Hydro Drive, ZTR Series 3 Seat Support Assembly & Body Cover Parts Ricambi

(C) BUSHING, PLASTIC,

Articolo numero:
BS7079191YP
Posizione:
33
4.94 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

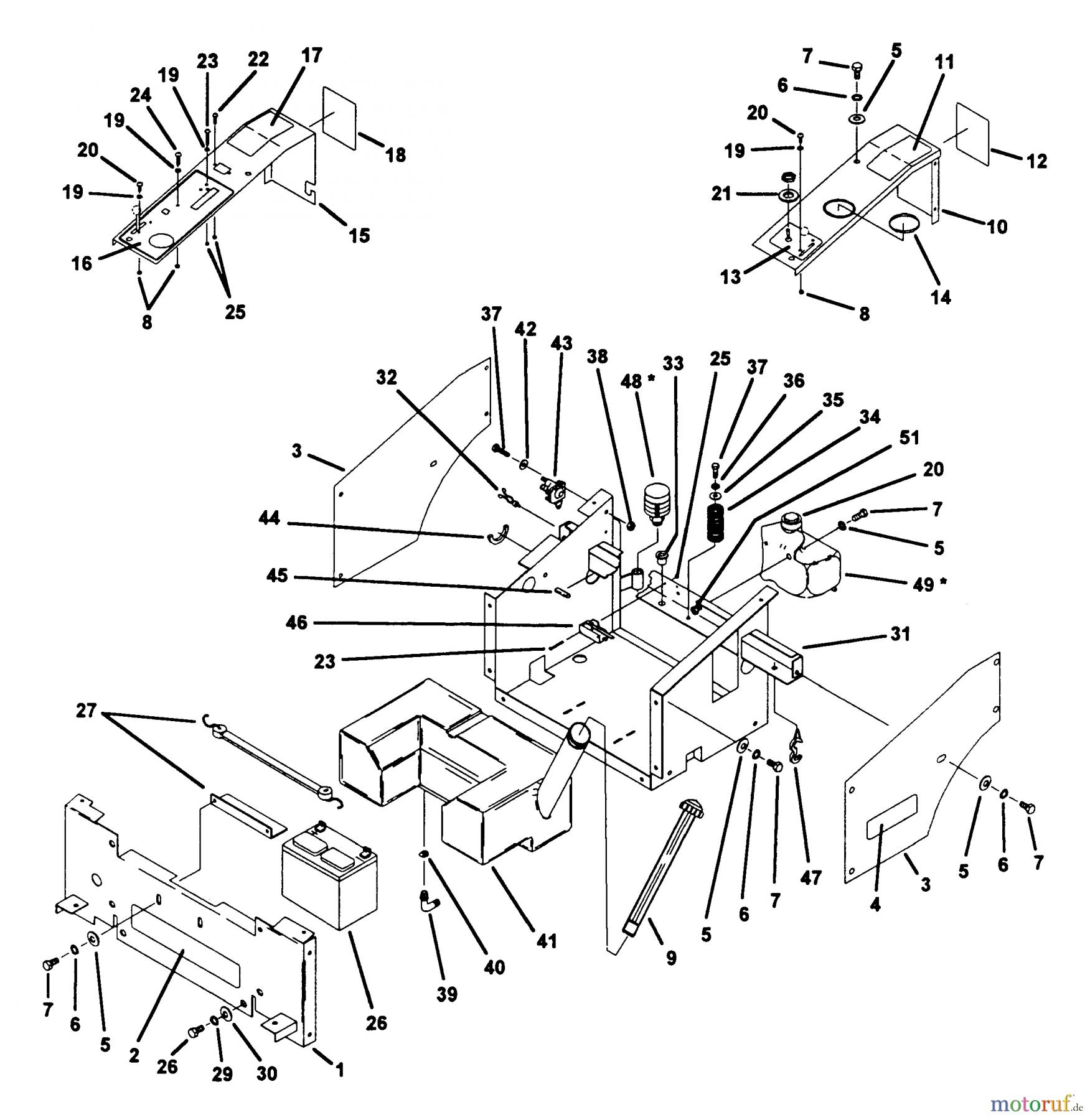

Snapper Nullwendekreismäher, Zero-Turn Z2003K (80464) - Snapper 20 HP Zero-Turn Mower, Hydro Drive, ZTR Series 3 Seat Support Assembly & Body Cover Parts
PosizioneArticolo numeroDescrizione
1 BS7079895
2 BS79643
3 BS7079676
4 BS7062041
4 BS7062042
4 BS7062043
4 BS7062044
4 BS7062301
4 BS7062300
4 BS7062299YP(C) DECAL, MODEL # Z1
4 BS7062298
5 BS703350U-SCHEIBE, 5/16
6 BS7079267YP(C) LOCKWASHER, 5/16
7 BS7076934YP(C) HHCS, 5/16C X3/4
8 BS7079828
9 BS7079858YP(C) CAP, FUEL GAUGE
10 BS7062054
10 BS7062056
11 BS7079238
12 BS7079916
13 BS7079917YPDCL, BLADE
13 BS7079913
14 BS7062058YP(C) TRIM, U-CHANNEL,
15 BS7062055
15 BS7062057
16 BS7079918
16 BS7079914
17 BS7079239
18 BS7062312YP(C) DECAL, BELT TENSI
19 BS7079826
20 BS7079848
21 BS7079890
22 BS7079825YP(C) SCREW, MACH, #6C
23 BS7079281YP(C) RHSS, #6C X1
24 BS7079849
25 BS7079310
26 BS7079482
27 BS7079698YP(C) ANGLE, BATTERY CL
27 BS7079911
?28 BS7091086YPSCHRAUBE, 3/8-16 X 3/4
29 BS7079268YPSLW, 3/8 HEAVY ZP
30 BS7090517SMFW, .438X1X.084 YZ
31 BS7079686
32 BS7079864YP(C) BLIND HOLE KURLY-
33 BS7079191YP(C) BUSHING, PLASTIC,
34 BS7079857
35 BS7079694YP(C) WASHER
36 BS7090052SMSLW, .256X.487X.062 Z
37 BS703925CAPSCREW, 1/4-20X.75
38 BS7076978SMHLN, 1/4C BZ
39 BS7079853YP(C) ELBOW, 90D 1/4NPT
40 BS7079870
41 BS7079856YP(C) FUEL TANK
42 BS7091294
43 BS7079193YPSOLENOID STARTER
44 BS7062053
45 BS7079897
46 BS7079194YPSW,ENCL,SPDT,HINGED
47 BS7079854YP(C) FITTING, 1/2 ROSE
48 BS79789
49 BS7062235
49 BS7062295YP(C) OIL TANK, 1.5 QT.
?50 BS7012155YPGAS CAP
51 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
