Snapper 11327E (1694604) - 32" Snowthrower, 11 HP, Two-Stage Large Frame, 2005, Series 7 Handles and Controls Group Ricambi

Name: MUTTER, 1/4-20, NYLOCK
Price: 4.84 EUR

MUTTER, 1/4-20, NYLOCK

Articolo numero:

BS703232

Posizione:

4.84 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

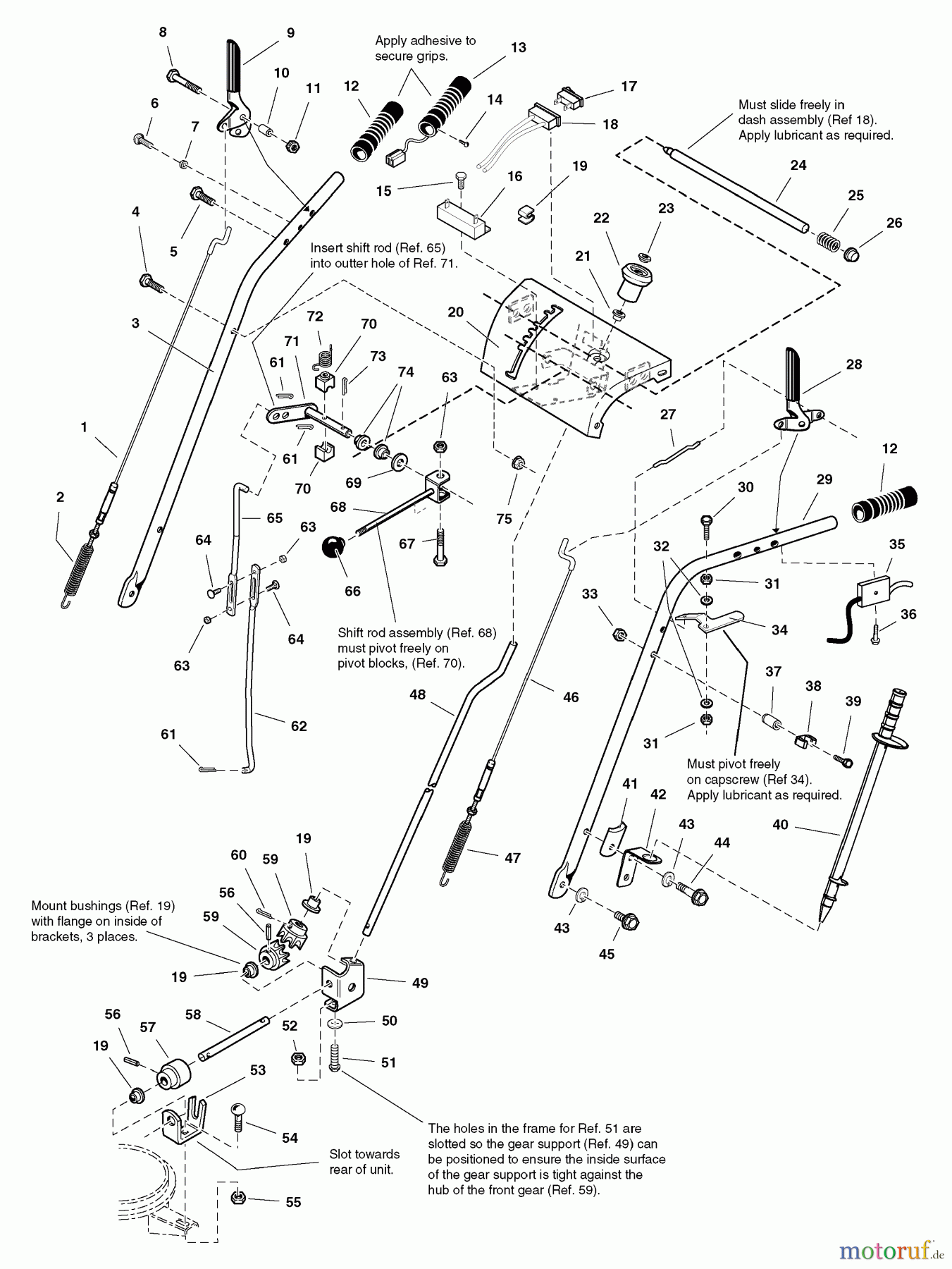

Snapper Schneefräsen 11327E (1694604) - Snapper 32

Posizione	Articolo numero	Descrizione
1	BS1726833SM	CABLE & SPRING ASMY-
2	BS1701996SM	FEDER-EXTN 0.714ODX
3	BS1727087ASM
4	BS704288
5	BS7091540YP	SECHSK.SCHRAUBE, 5/16-18
6	BS1960671SM	SCREW - PAN HD
7	BS1715654SM	SPACER, HANDLE
8	BS51374YP	KOPFSCHRAUBE
9	BS1722638SM	LEVER, CLUTCH - RH
10	BS1715655SM	SPACER, HANDLE
11	BS1923358SM	NUT, LOCK
12	BS1726317SM	GRIP, FOAM
13	BS1723965SM	HAND GRIP - HEATED
14	BS1726422SM
15	BS703925	CAPSCREW, 1/4-20X.75
16	BS1724037SM	RESISTOR BLOCK
17	BS1723967SM	SWITCH, HANDWARMER
18	BS1725409SM
19	BS1715956SM	CLIP - WIRE
20	BS1726983ASM
21	BS1667588SM	BUSHING
22	BS1714084SM	KNOB, SPINNER
23	BS703948	DRUCKMUTTER, 3/8
24	BS1722633SM
25	BS1722690SM
26	BS703179	PUSHNUT, CAP TYPE
27	BS1722630SM	ROD, HOLD DOWN
28	BS1722667SM	LEVER, CLUTCH - LH
29	BS1727086ASM
30	BS1960662SM
31	BS703232	MUTTER, 1/4-20, NYLOCK
32	BS1921319
33	BS703412	NUT, NYLOCK, 10-24
34	BS1722631ASM
35	BS1718791SM	CABLE & HANDLE ASMY
36	BS1725702SM	SCHRAUBE
37	BS1726995SM
38	BS1501672MA	CLIP/KLAMMER,HALTERUNG YZ
39	BS1960727SM
40	BS1736094YP	STAB-ENTLEERUNG W/BURSTE
41	BS1720452SM	CLAMP
42	BS1726727ASM
43	BS703116	LCKWSHR
44	BS7027174SM	HHCS, 5/16C X 2 GR5
45	BS9357MA	SCHRAUBE, 5/16-18X .75WD
46	BS1726832SM	CABLE & SPRING ASMY-
47	BS1707452SM	SPRING-EXTN 0.605ODX
48	BS1727088SM
49	BS1718793A
50	BS703826	BOLT, PUSHNUT 1/4
51	BS1960252SM	BOLT-RD HD SH SQ NK 1
52	BS703233	MUTTER, 1/4-20, GR5
53	BS1611911
54	BS703185	RHSSNB
55	BS703222	MUTTER, 5/16-18
56	BS2816168SM	PIN - SPRING
57	BS1668186SM	WORM, CHUTE
58	BS1725283SM
59	BS1718593SM	GEAR, UNIVERSAL
60	BS1918452
61	BS1722460SM	PIN-QUICK .080WIRE 1.
62	BS1666255SM	ROD, SHIFT, LOWER
63	BS703061	NUT, HEX KEPS, 1/4-20
64	BS1931317
65	BS1726304SM	ROD-.375DIA 11.38 LG
66	BS1726734SM	KNOB, TAPERED, 3/8C,
67	BS1960705SM	SCREW-HEX WZ LOCK FL
68	BS703053	PLEUEL KOMPL.
69	BS7091587SM	UNTERLAGSCHEIBE, .531X1.062X.1
70	BS703050	BLOCK, PIVOT
71	BS1720240SM
72	BS1715123SM
73	BS703300	PIN, 3/32 X 1.6
74	BS1668185SM	BUSHING-0.500IDX0.750
75	BS703115	MUTTER
