Snapper 115328E (1694996) - 32" Snowthrower, 11.5 HP, Two-Stage Large Frame, Series 8 Traction Drive Group - EZ Turn - 28" Model Ricambi

Name: VERBINDUNGSFEDER
Price: 20.58 EUR

VERBINDUNGSFEDER

Articolo numero:

BS703328

Posizione:

20.58 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

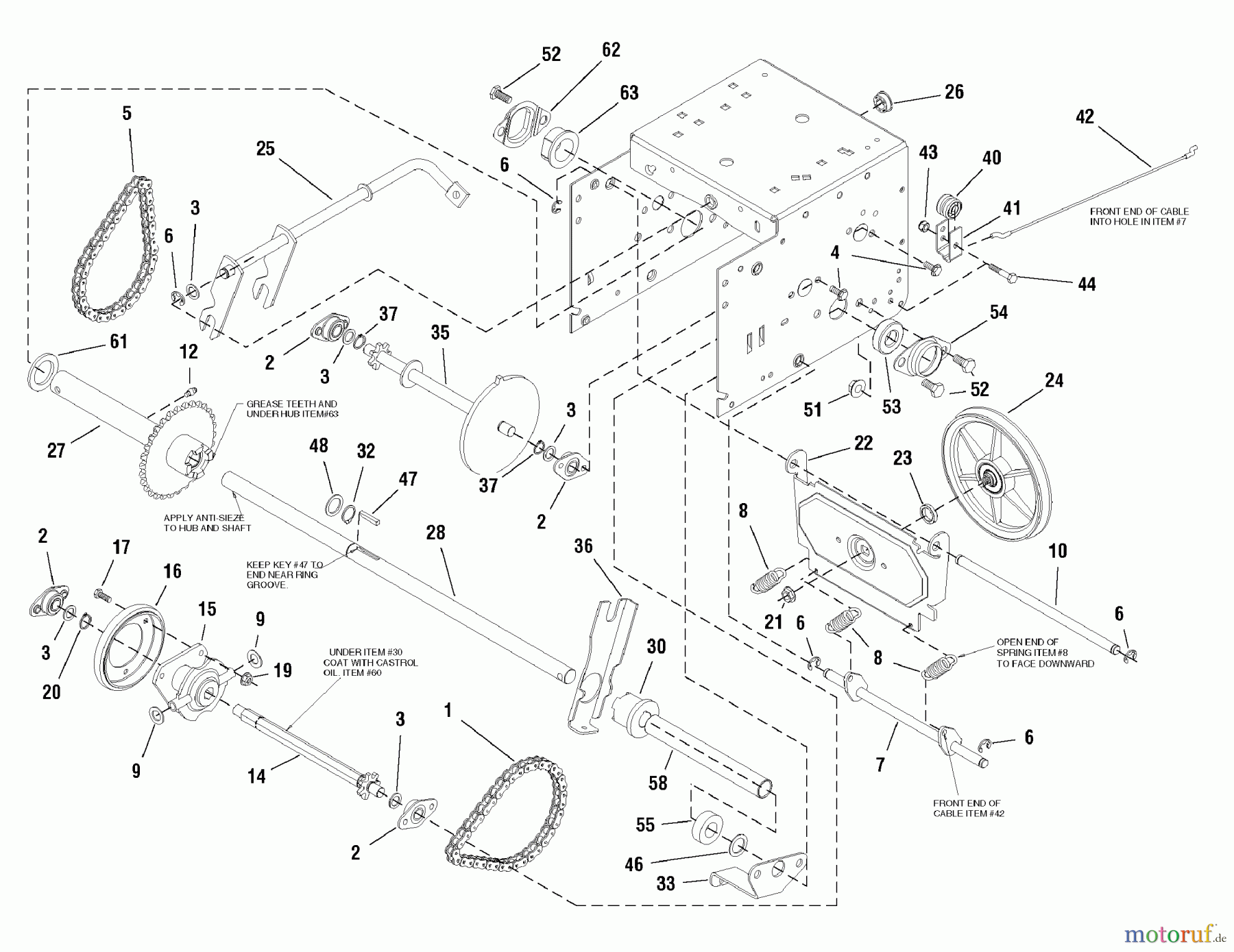

Posizione	Articolo numero	Descrizione
1	BS579851MA	ROLLKETTE 420X19.
2	BS334163MA	BEARING & RETAINER, A
3	BS579858MA	UNTERLEGSCHEIBE.502-0.75-.06 F
4	BS1924856SM	SCREW - HEX WASHER HD
5	BS579868MA	CHAIN,ROLLER 420X18.0
6	BS11X30MA	RETAINER, RING 7/16 Y
7	BS1502105YZMA	SPRING LINK ASY STD
8	BS1736469YP	FEDER
9	BS1960027SM	ABZIEHER-SCHEIBE
10	BS703328	VERBINDUNGSFEDER
12	BS2812808SM	FITTING-LUBE .250-28T
14	BS1501100MA	HEX SHAFT
15	BS1739282YP	LAGERZAPFEN KOMPL.
16	BS1501435MA	REIBRAD 4.3 RU
17	BS001X38MA	BOLT,HEX .25-20X0.62
19	BS1928372SM	NUT - HEX KEPS
20	BS1733326SM	RING-RET EXT # 63 0.6
21	BS15X114MA	BUCHSE,FLANSCHVERSCHLUSS
22	BS1501057YZMA	PLATE,SWINGING
23	BS1501158MA	DISTANZSTUCK,FRIKTION RIEMENSC
24	BS1501115MA	FRICTION PULLEY ASY
25	BS1501110YZMA	GANGWAHL ASY
26	BS579944MA	LAGER FLANSCH .500ID X .88
27	BS1733085SM	SPROCKET & HUB ASMY-W
28	BS1732381SM	AXLE-0.748DIA 22.75 L
30	BS1732382SM	GEAR-CLUTCHING 0.754I
32	BS2827732SM	RING-RET EXT # 74 0.7
33	BS1751336AYP	KABELHALTER
35	BS1732389SM	SPROCKET & SHAFT ASMY
36	BS1732383ASM	ARM-CLUTCH 12GA HT TR
37	BS2860386SM	RING-RET EXT # 50 0.5
40	BS579860MA	SPOOL CABLE,AUGER CTR
41	BS1501059YZMA	KONSOLE,KABEL SPULE
42	BS1501122MA	KABEL,FR ANTRIEB UNTEN
43	BS703232	MUTTER, 1/4-20, NYLOCK
44	BS51374YP	KOPFSCHRAUBE
46	BS712120MA	WASHER, FLAT .765X1.1
47	BS1667622SM	KEY-HI PRO .187X1.140
48	BS703151	U-SCHEIBE
51	BS1928352SM	NUT - HEX FLANGE
52	BS703237	CAPSCREW, 3/8-16X.75
53	BS53263MA	BRNG,BALL.750IDX1.630
54	BS50648MA	LAGERHALTERUNG 420T
55	BS1501620MA	COLLAR,LOCKING
58	BS1720298SM	SPRING-COMP 0.780IDX
61	BS2860169SM	WASHER-1.188(1.22IDX1
62	BS1733101SM	RETAINER-BUSHING 1.63
63	BS1720305SM	BUSHING-1.135IDX1.62
