Snapper 13387E (1694859) - 38" Snowthrower, 13 HP, Two-Stage Large Frame, 2006, Series 7 Traction Drive Group Ricambi

Name: FITTING-LUBE .250-28T
Price: 5.31 EUR

FITTING-LUBE .250-28T

Articolo numero:

BS2812808SM

Posizione:

5.31 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

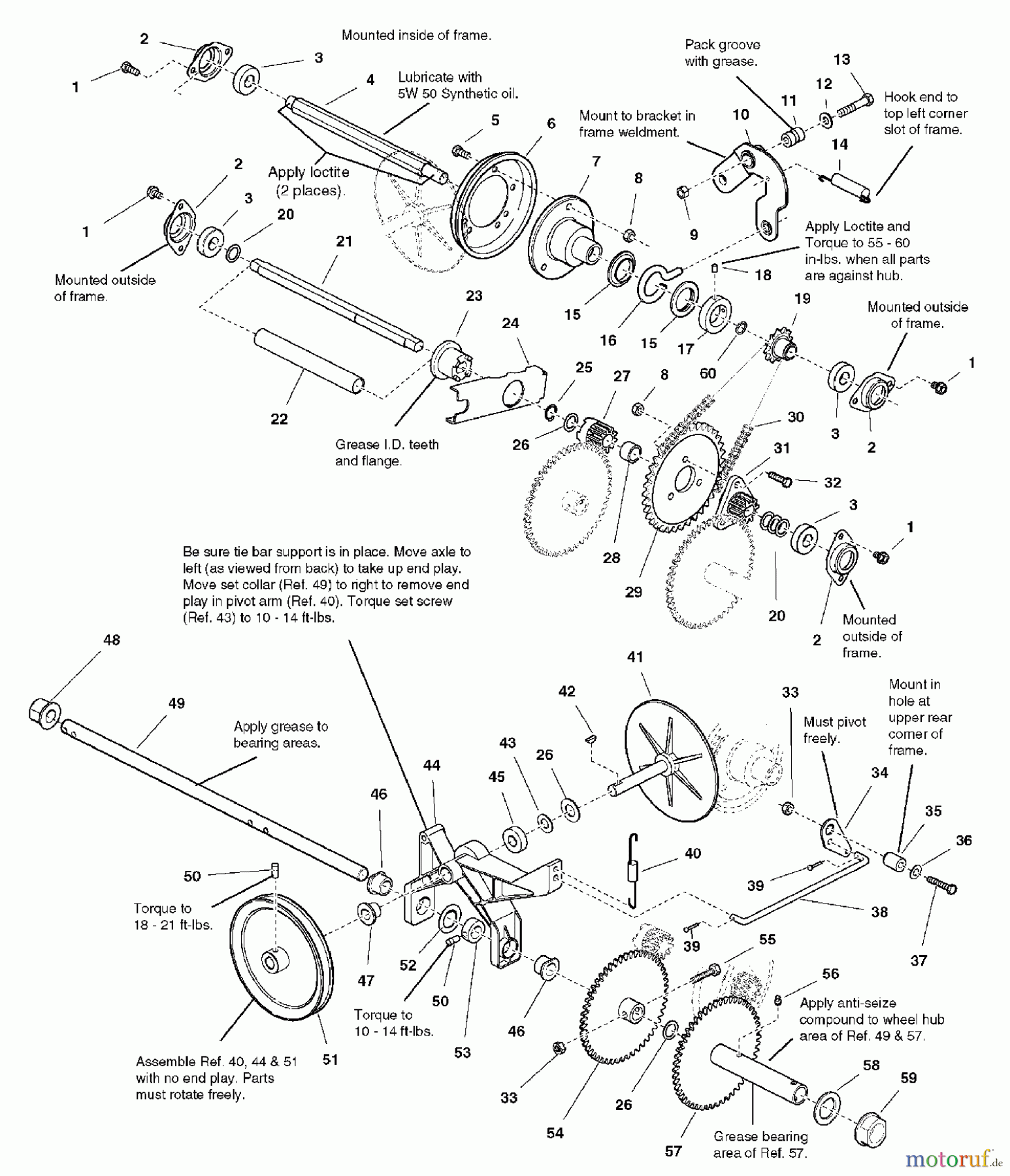

Snapper Schneefräsen 13387E (1694859) - Snapper 38

Posizione	Articolo numero	Descrizione
1	BS703949	SCHRAUBE, 5/16-18.625
2	BS703155	LAGERHALTERING
3	BS1705897SM	BEARING, BALL 11/16X1
4	BS1736100SM	SHAFT-HEX 0.750A/F 1
5	BS1921332SM	CAPSCREW - HEX HD
6	BS1725428SM	DISC, FRICTION
7	BS1665995SM	HUB, FRICTION DISC
8	BS703222	MUTTER, 5/16-18
9	BS703158	MUTTER
10	BS1669256SM	SHIFT ARM / BUSHING A
11	BS703140	BUCHSE
12	BS703878	WASHER, FLAT
13	BS703589	CAPSCREW, 3/8-16X2
14	BS703157	FEDER-EXTN
15	BS1678956SM	COLLAR, THRUST
16	BS1666207SM	PIN-LOOP .375DIA X 2.
17	BS1667335SM	COLLAR, SET, 1.251 X
18	BS703139	SET SCREW
19	BS1726931SM	SPROCKET-10T LF SNOW
20	BS2860164SM	WASHER-0.625(0.69IDX1
21	BS1718752SM	JACKSHAFT-DOUBLE D 12
22	BS1720298SM	SPRING-COMP 0.780IDX
23	BS1718689SM	CLUTCH-SLIDING 1.5OD
24	BS1720078ASM	ARM-CLUTCH LF SNOW B
25	BS2827732SM	RING-RET EXT # 74 0.7
26	BS703151	U-SCHEIBE
27	BS1718688SM	GEAR-STATIONARY CLUT
28	BS703154	DISTANZSCHEIBE
29	BS1667330SM	SPROCKET-36T 6.020O
30	BS1666980SM	CHAIN-ROLLER #40 22.
31	BS1718687SM	GEAR-10T DBL D LF S
32	BS703585	CAPSCREW, 5/16-18X1
33	BS703115	MUTTER
34	BS1700473SM	BELLCRANK, BLACK
35	BS703121	BUCHSE
36	BS1921319SM	ABZIEHER-SCHEIBE
37	BS1922127
38	BS1726467SM	ROD-.306DIA 09.51 LG
39	BS1722460SM	PIN-QUICK .080WIRE 1.
40	BS703148	FEDER
41	BS1719879SM	DISC, DRIVE, W/ SPIND
42	BS2818312SM	KEY, WOODRUFF
43	BS1924366SM	WASHER-0.625(0.66IDX1
44	BS1755734YP	PIVOT ARM
45	BS1665521SM	BEARING, BALL
46	BS1666425SM	BUSHING
47	BS1666855SM	BUSHING-0.627IDX0.816
48	BS1666001SM	BUSHING, 1" LONG
49	BS1720299SM	AXLE-0.749DIA 22.80LG
50	BS1928721SM	SET SCREW
51	BS703147	WELDMENT, PULLEY ASSY
52	BS703149	U-SCHEIBE
53	BS703150	KLEMMSCHELLE
54	BS1720300SM	GEAR & HUB ASMY-LF SN
55	BS1930570SM	CAPSCREW-HEX HD 5/16
56	BS2812808SM	FITTING-LUBE .250-28T
57	BS1755727YP	GEAR & HUB ASMY W/BUS
58	BS2860169SM	WASHER-1.188(1.22IDX1
59	BS1720305SM	BUSHING-1.135IDX1.62
60	BS2172206SM	RING-RET EXT # 87 0.8
