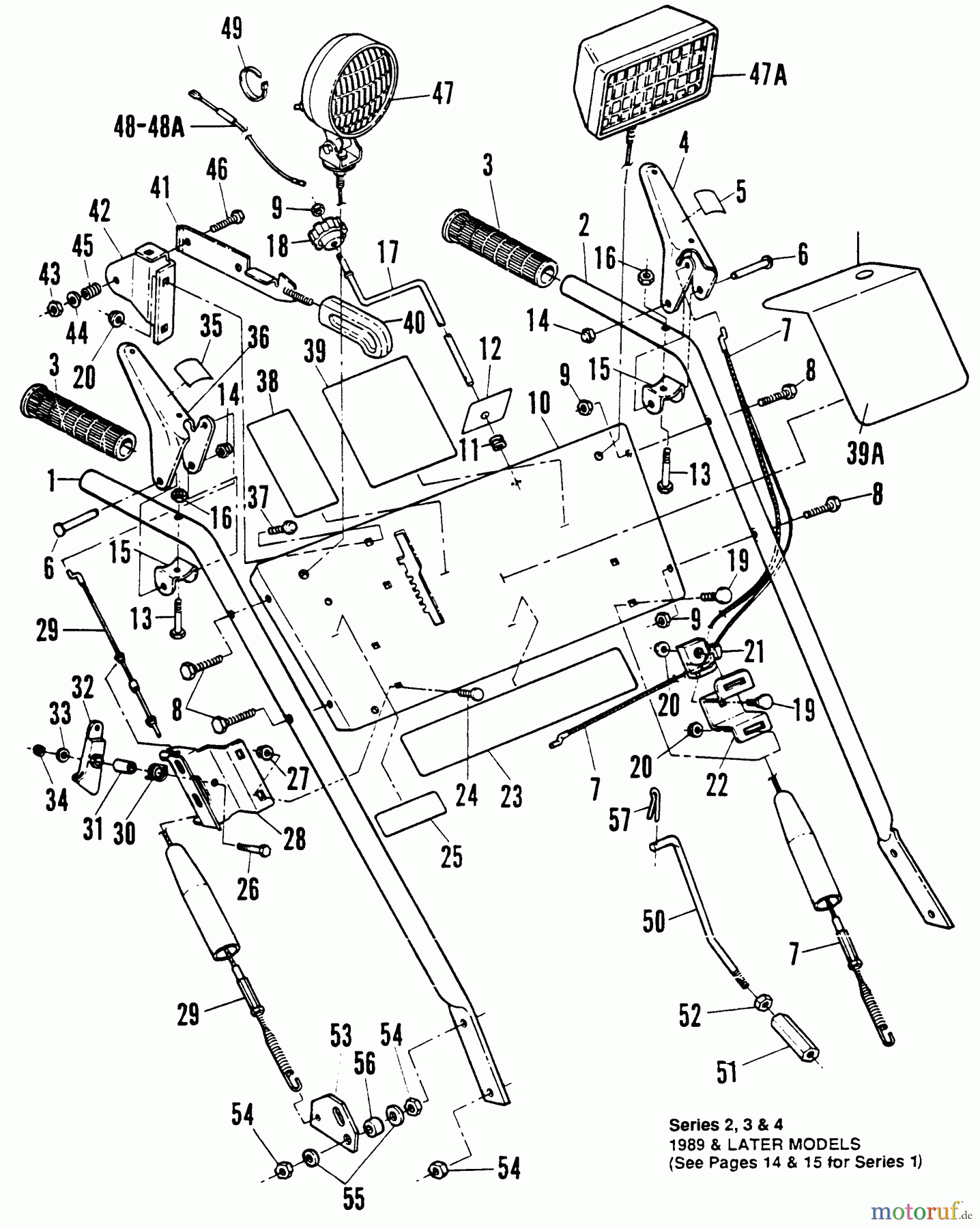

Snapper 8243E - 24" Snowthrower, 8 HP, Two Stage, Large Frame, Series 3 Handle, Controls (Series 2 & Later) Ricambi

Name: PUSHNUT, CAP, 1/4
Price: 4.62 EUR

PUSHNUT, CAP, 1/4

Articolo numero:

BS704005

Posizione:

4.62 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

Posizione	Articolo numero	Descrizione
1	BS7052028YP	HANDLE ASMY, RH
1	BS7032922
2	BS7052029YP	(S) HANDLE ASSY, LH
2	BS7032923
3	BS1726317SM	GRIP, FOAM
4	BS7032907YP	(S) HANDLE, IST, LH
5	BS7013925
5	BS7016573
6	BS7016297YP	(S) CLEVIS PIN, 1/4X1
6	BS7016297
7	BS7016311YP	CABLE, CLUTCH, LFST
7	BS7016311
8	BS7091540YP	SECHSK.SCHRAUBE, 5/16-18
9	BS703164	MUTTER
10	BS7035124YP	PANEL, CONTROL
10	BS30009
	BS30006
11	BS7012117SM	BUSHING, 3/8 PLASTIC
12	BS7014630YP	(S) DECAL, CHUTE CONT
13	BS7090552YP	HHCS, 1/4FX1-3/8 GR5
13	BS7091025YP	HHCS, 1/4F X1-3/8 GR5
14	BS704005	PUSHNUT, CAP, 1/4
15	BS7032921YP	(S) BRKT, HANDLE
16	BS703972	NUT, HEX TOP, 1/4-28
17	BS7014298YP	(S) CRANK, CHUTE #
17	BS7016305
18	BS7013901YP	GRIFF, GERIFFELT
19	BS1931317SM	BOLT - RD HD
19	BS7091064YP	SCHRAUBE SCHIEBEGR., 1/4C X 1/
20	BS703233	MUTTER, 1/4-20, GR5
21	BS7015960YP	(S) GUIDE, CABLE
22	BS7032651YP	(S) BRKT, CABLE GUIDE
23	BS7019295YP	DECAL, SNAPPER
24	BS7091085YP	FHSNB, #10C X1/2 YZ
25	BS7015389YP	(S) DECAL, 8241
10	BS7015390YP	(S) DECAL, 826
10	BS7015391
	BS7052028
	BS7052029
26	BS7027230SM	(C) HHCS, 1/4C X1 GR5
27	BS7090623SM	HFLN, #10C ZP
28	BS7038352YP	(S) BRKT, CAM, YELLOW
29	BS7016310YP	CABLE, AUGER DRIVE
30	BS7015966YP	(S) SPRING, CAM LOCK
31	BS7015969YP	(S) SPACER, .343OD X.
32	BS7018980YP	(S) LOCK, CAM
33	BS7091294
34	BS703954
35	BS7013926YP	(S) DECAL, BLOWER CLU
35	BS7016574YP	(S) DECAL, BLOWER CLU
36	BS7032908YP	(S) HANDLE, IST, RH
37	BS7091604YP	RHSSNB, 1/4C X1/2 GR5
38	BS7013927
39	BS7073461SM
39A	BS7024771
39A	BS7024772
40	BS7012659
40	BS7016334YP	(S) LEVER, SHIFT HAND
41	BS7040503YP	(S) HANDLE, SHIFT
41	BS7040660YP	(S) WELD, SHIFT HANDL
42	BS7037962YP	(S) BRKT, PANEL ASSY
43	BS7090222YP	HLN, 5/16F
43	BS7091606SM	HCLN, 5/16F YZ
44	BS703350	U-SCHEIBE, 5/16
44	BS7091076
45	BS7023933YP	(S) SPRING, .40X1.0X.
46	BS330434MA	SCREW.31-24X1.50 HHC
47	BS7018698
47A	BS24492
48	BS7014936YP	(S) WIRE HARNESS
48A	BS	Eingangswelle UE 600
49	BS7014940
50	BS7016312YP	(S) ROD, UPPER SHIFT
51	BS7016304YP	(S) NUT, CONNECTOR, 3
52	BS7091302SM	HN, 3/8C GR5 YZ
53	BS7032131YP	(S) LEVER, CLUTCH, CL
53	BS7032910YP	(S) LEVER, CLUTCH, BL
54	BS703409	MUTTER, 5/16-18, GR5
55	BS7016314YP	FW, .33X1.25X.09 BZ
56	BS703970	DISTANZSTUCK
57	BS7091598SM	COTTER PIN, 1/8X3/4 Y
