Snapper G11302B - 30" Snowthrower, 11 HP, Two Stage, Large Frame, Series 2 Collector Housing, Discharge Chute Ricambi

Name: (S) SCRAPER BLADE, 24
Price: 38.75 EUR

(S) SCRAPER BLADE, 24

Articolo numero:

BS7036122YP

Posizione:

38.75 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

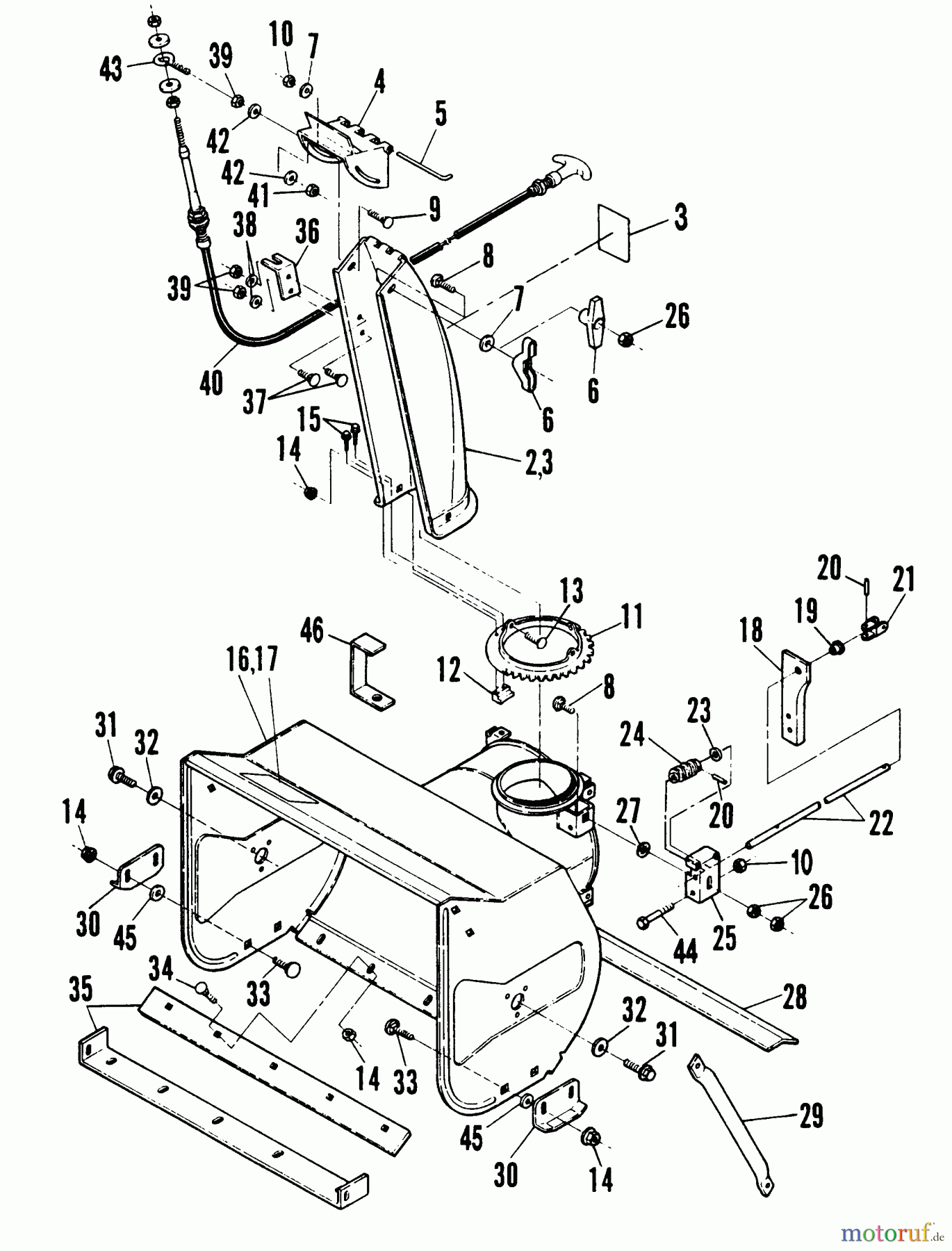

Snapper Schneefräsen G11302B - Snapper 30

Posizione	Articolo numero	Descrizione
2	BS7072850SM	CHUTE / DEFLECTOR ASS
2	BS7072881SM	REMOTE CHUTE / DEFLEC
3	BS7024773YP	(S) DECAL, HAND DANGE
4	BS7019767
4	BS17066
5	BS7015138
6	BS703065	WINGKNOB, 5/16-18
6	BS7035744
7	BS703350	U-SCHEIBE, 5/16
7	BS7091076
8	BS7091303YP	RHSSNB, 5/16CX1 GR5
8	BS7090316SM	RHSNB, 5/16C X3/4 GR5
9	BS7090233YP	HHCS, 5/16F X3/4 GR5
9	BS7091021YP	HHCS, 5/16F X3/4
10	BS7090222YP	HLN, 5/16F
10	BS7091606SM	HCLN, 5/16F YZ
11	BS7039765SM	(S) RING, CHUTE
12	BS7011938SM	RETAINER, SPOUT
13	BS7090316
13	BS7091077YP	BOLZEN,5/16-18X5/8
14	BS703409	MUTTER, 5/16-18, GR5
15	BS7091075SM	SCHRAUBE, SELF TAPPING
16	BS7052006
16	BS7052134YP	(S) 24" BLOWER/DECAL
16	BS7052008
16	BS7052135YP	BLWR/DCL ASSY, 26
16	BS7052009
16	BS7053421
17	BS1716532SM	DECAL - DANGER AUGER
18	BS7032125YP	(S) BRKT, SUPPORT
19	BS7012117SM	BUSHING, 3/8 PLASTIC
20	BS7014001SM
21	BS7032126
22	BS7013879
22	BS7017281YP	(S) SHAFT, WORM, 12.9
23	BS7011079YP	WASHER, CURVED, .45X.
24	BS7028348SM
25	BS7037963YP	(S) BRKT, WORM
26	BS7091511SM	MUTTER, 5/16C GR5 YZ
27	BS703297	RETAINER, GR5, 5/16
28	BS7038009
29	BS7038041YP	(S) BRACE, 51501
30	BS7037982YP	SKID SHOE
31	BS7090815YP	SCHRAUBE, 3/8-16 X 3/4
32	BS7013866YP	FW, .39X1.5X.11 ZP
33	BS703185	RHSSNB
34	BS703798	BOLT, 5/16-18X0.50
35	BS7036122YP	(S) SCRAPER BLADE, 24
35	BS7039770YP	(S) SCRAPER BLADE, 26
35	BS7036006YP	(S) SCRAPER BLADE, 30
36	BS7032813SM	(S) MOUNT, CABLE, BLA
37	BS7091064YP	SCHRAUBE SCHIEBEGR., 1/4C X 1/
38	BS703462	U.-SCHEIBE, 1/4
39	BS703127	MUTTER
40	BS7045172SM	(S) CABLE, CONTROL
41	BS703954
42	BS703302	U-SCHEIBE, 5/16
43	BS7023798SM
44	BS7090246YP	HHCS, 5/16F X2-1/2 GR
45	BS7091076
46	BS7033035YP	(S) GUIDE, CABLE
