Snapper L1528E (1695848) - 28" Snowthrower, 14.5 HP, Two Stage, Large Frame Chute & Rotation Group - Electric Ricambi

Name: GUARD-CHUTE .188ROD S
Price: 17.22 EUR

GUARD-CHUTE .188ROD S

Articolo numero:

BS1733475SM

Posizione:

0530

17.22 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

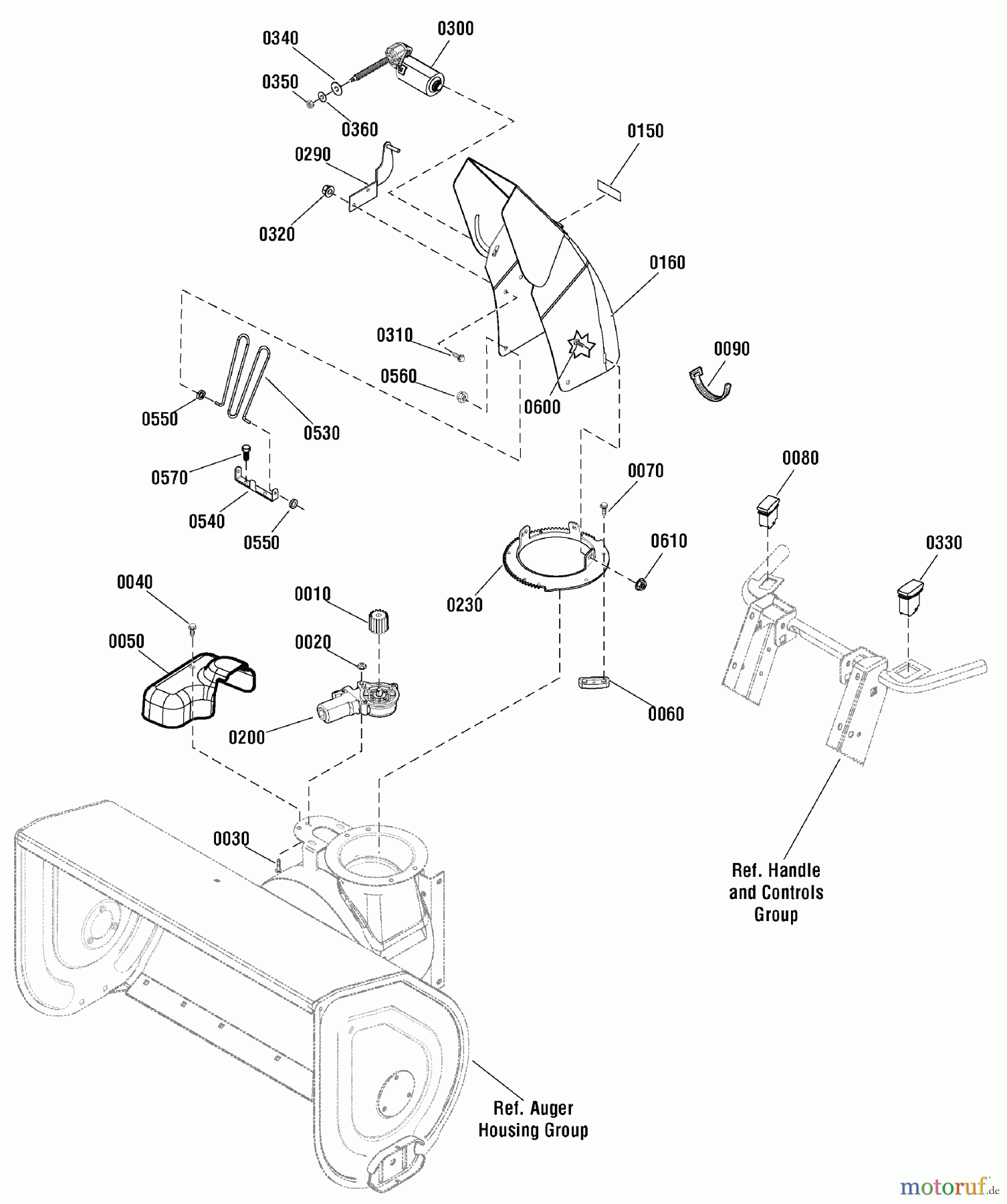

Posizione	Articolo numero	Descrizione
0010	BS1728967SM	PINION-1.417OD 0.296S
0020	BS703917	NUT, HEX FLNG, 10-24
0030	BS2860604SM	SCHRAUBE - HEX WASHER HD
0040	BS703466	BOLT, GR5, 1/4X.0750
0050	BS1737455YP	ABDECKUNG, ELEKTR.SCHACHT
0060	BS7011938SM	RETAINER, SPOUT
0070	BS703062	SCHRAUBE, 10-14
0080	BS1738243YP	SCHALTER, SCHACHT ROTATION
0090	BS1701011SM	TIE, SELF LOCKING .18
0150	BS1733601SM	DECAL
0160	BS1738231H
0200	BS1728965SM	MOTOR-SPOUT ROTATOR 3
0230	BS1737962BMYP	GETRIEBE
0290	BS1738267BMYP	HALTER, BOLZEN
0300	BS1737941YP	MOTOR, SCHACHT DEFL
0310	BS1960715SM	SCHRAUBE - TRUSS HD
0320	BS1960694SM	NUT-HEX FLANGE 1/4-2
0330	BS1738242YP	SCHALTER, DEFLEKTOR KONTR.
0340	BS1738244YP	GUMMISCHEIBE
0350	BS703143	MUTTER
0360	BS5025154
0530	BS1733475SM	GUARD-CHUTE .188ROD S
0540	BS1737683AYP	HALTER, SCHACHTSCHUTZ
0550	BS1738174YP	DURCHFUHRUNG, SCHACHTSCHUTZ
0560	BS1960140SM	NUT-PUSH FOR .188 DIA
0570	BS1925003
0600	BS720386
0610	BS703061	NUT, HEX KEPS, 1/4-20
