Snapper L824E (1696171-00) - 24" Snowthrower, 8 HP, Two Stage Intermediate Engine Group Ricambi

Name: AUGER IDLER
Price: 57.33 EUR

AUGER IDLER

Articolo numero:

BS1752397YP

Posizione:

0230

57.33 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

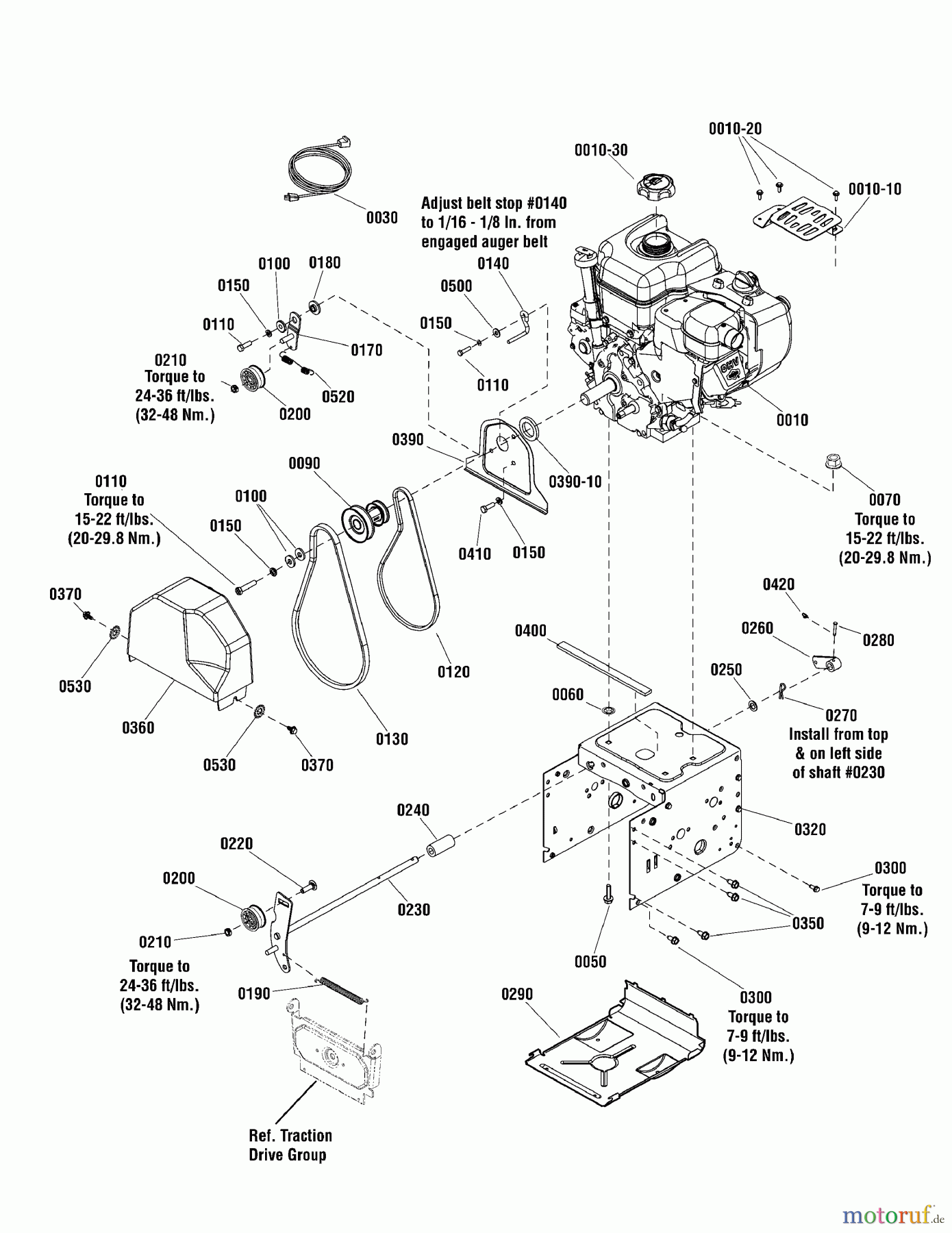

Posizione	Articolo numero	Descrizione
0010	BS12A107-0169-F8
0010-10	BS797003	SCHALLDAMPFERSCHUTZ
0010-20	BS699854	SCHRAUBE
0010-30	BS792647	KRAFTSTOFFTANKDECKEL
0030	BS6219MA	CORD, STARTER MOTOR
0050	BS703296	BOLZEN, 5/16-18X1.5
0060	BS703297	RETAINER, GR5, 5/16
0070	BS703409	MUTTER, 5/16-18, GR5
0090	BS1501109MA	PULLEY,ENGINE
0100	BS703298	U-SCHEIBE, GR5, 5/16
0110	BS1921982SM
0120	BS1733324SM	BELT, DRIVE
0130	BS1751417YP	BELT, AUGER
0140	BS1739070YP	KEILR.SCHUTZ
0150	BS018X15MA	SCHLITZSCHEIBE.31.58X.07 SPLI
0170	BS1501112YZMA	LEITKONSOLE ASY,ANTRIEBSRIEMEN
0180	BS1501065MA	BUCHSE,LEITKONSOLE
0190	BS165X164MA	SPRING,EXT IDLER 8-13
0200	BS1502120MA	UMLENKROLLE
0210	BS1960251SM	MUTTER
0220	BS703227	BOLZEN, 3/8-16 X 1.25
0230	BS1752397YP	AUGER IDLER
0240	BS1501200MA	DISTANZSTUCK/SCHRAUBE KONSOLE
0250	BS1960027SM	ABZIEHER-SCHEIBE
0260	BS1733451SM	ARM - CONTROL
0270	BS725367
0280	BS703313	PIN, CLEVIS, ZINC
0290	BS1753969BMYP	COVER, BOTTOM
0300	BS1927429SM	SCREW - HEX WASHER HD
0320	BS1754891D
0350	BS703228	SCHRAUBE, 5/16-18 X .75
0360	BS1753893YP	COVER, BELT
0370	BS1751355YP	SCREW, 1/4-20 X 3/4
0390	BS1733868BMYP	MET.DICHTUNG
0390-10	BS1733898SM	SEAL-FOAM 1.30ID 2.00
0400	BS1750172YP	DICHTLEISTE
0410	BS910828MA	SCHRAUBE, 5/16-24X1.00 H
0420	BS7023590SM
0500	BS703302	U-SCHEIBE, 5/16
0530	BS7091890SM	IETLW, 1/4 BZ
