Snapper M1227EX (1696002) - 27" Snowthrower, 11.5 HP, Two Stage Intermediate Traction Drive Group - Standard Ricambi

Name: SECHSKANTBOLZEN-HEX.25-20X1.75
Price: 3.57 EUR

SECHSKANTBOLZEN-HEX.25-20X1.75

Articolo numero:

BS01X193MA

Posizione:

0350

3.57 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

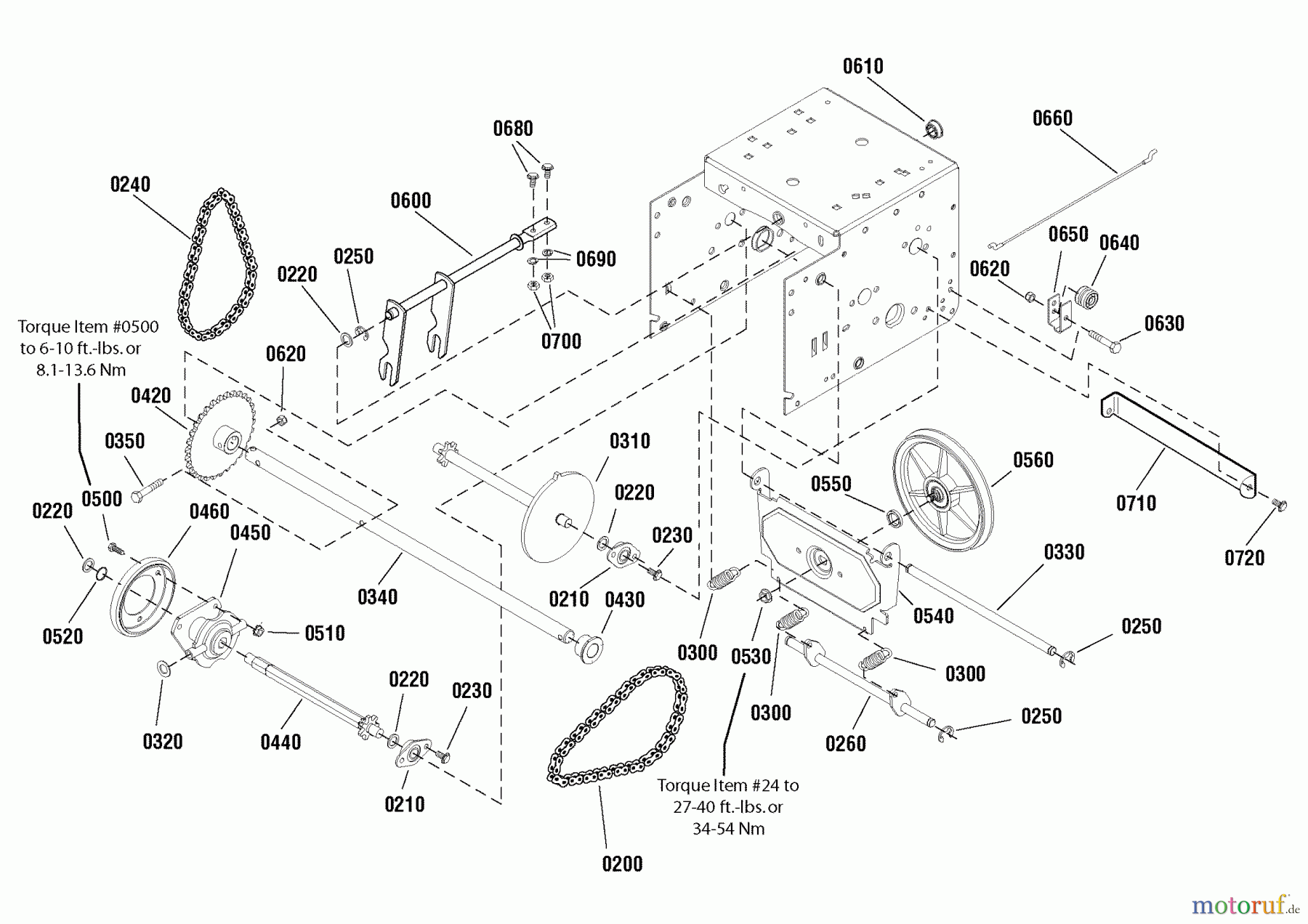

Posizione	Articolo numero	Descrizione
0200	BS579851MA	ROLLKETTE 420X19.
0210	BS334163MA	BEARING & RETAINER, A
0220	BS579858MA	UNTERLEGSCHEIBE.502-0.75-.06 F
0230	BS1924856SM	SCREW - HEX WASHER HD
0240	BS579868MA	CHAIN,ROLLER 420X18.0
0250	BS11X30MA	RETAINER, RING 7/16 Y
0260	BS1502105YZMA	SPRING LINK ASY STD
0300	BS1736469YP	FEDER
0310	BS1501090MA	SPROCKET,SET 33>7 STD
0320	BS703128	WASHER
0330	BS1501092YZMA	SCHWINGACHSE BLECH
0340	BS1501563MA	ACHSE 23.14LK1 BUCHSE 16
0350	BS01X193MA	SECHSKANTBOLZEN-HEX.25-20X1.75
0420	BS1501089MA	SPROCKET,AXLE=WF
0430	BS1501114MA	ACHSENLAGER
0440	BS1501100MA	HEX SHAFT
0450	BS1739282YP	LAGERZAPFEN KOMPL.
0460	BS1501435MA	REIBRAD 4.3 RU
0500	BS1921959SM	CAPSCREW - HEX HD
0510	BS703914	MUTTER, KEPS,1/4-20
0520	BS1733326SM	RING-RET EXT # 63 0.6
0530	BS15X114MA	BUCHSE,FLANSCHVERSCHLUSS
0540	BS1501057YZMA	PLATE,SWINGING
0550	BS1501158MA	DISTANZSTUCK,FRIKTION RIEMENSC
0560	BS1501115MA	FRICTION PULLEY ASY
0600	BS1501110YZMA	GANGWAHL ASY
0610	BS579944MA	LAGER FLANSCH .500ID X .88
0620	BS1920397SM	NUT - HEX LOCK
0630	BS1922837SM	CAPSCREW
0640	BS579860MA	SPOOL CABLE,AUGER CTR
0650	BS1750398YP	HALTER, KABELROLLE
0660	BS1750403YP	SEILZUG, VORDERRADANTR.
0680	BS001X38MA	BOLT,HEX .25-20X0.62
0690	BS703127	MUTTER
0700	BS1916964SM	SICHERUNGSSCHEIBE, FEDER
0710	BS1502030YZMA	STUTZKONSOLE STR-B
0720	BS703054	SCHRAUBE, 1/4-20X0.625
