Snapper M1529E (1695909) - 29" Snowthrower, 14.5 HP, Two Stage, Intermediate Frame Handles & Controls Group Ricambi

Name: ABSTANDSHULSE ABGESETZT
Price: 4.73 EUR

ABSTANDSHULSE ABGESETZT

Articolo numero:

BS703223

Posizione:

0440

4.73 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

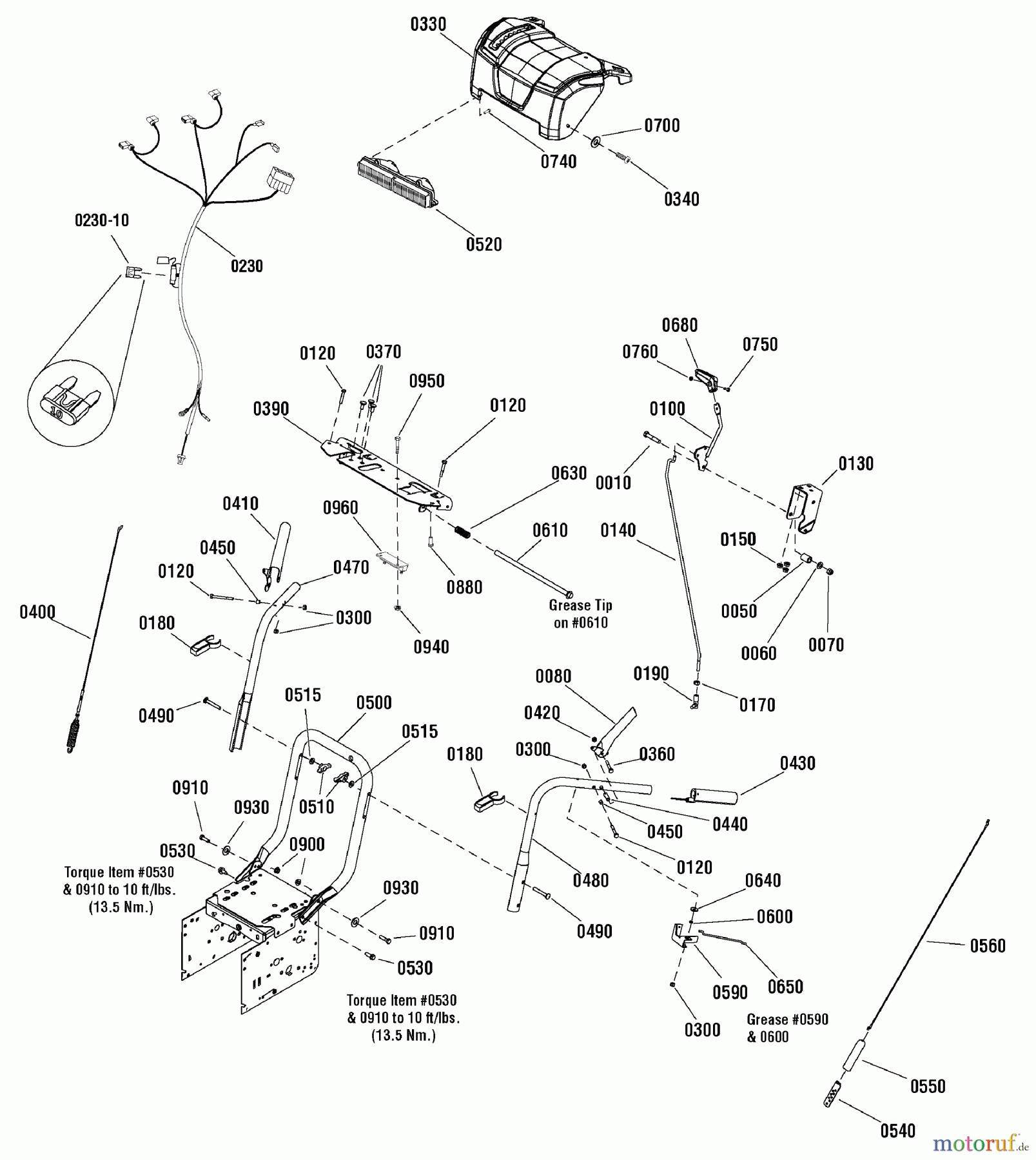

Snapper Schneefräsen M1529E (1695909) - Snapper 29

Posizione	Articolo numero	Descrizione
0010	BS703589	CAPSCREW, 3/8-16X2
0050	BS50786MA	SPRING,.509 DIA X0.75
0060	BS71072MA	WASHER, FLAT .406X.81
0070	BS1919439SM	NUT - HEX LOCK
0080	BS1739782BMYP	KUPPLUNGSHEBEL LINKS
0100	BS1736836YP	DREHZAHLREG.HEBEL KOMPL.
0120	BS1921971SM	KOPFSCHRAUBE, SECHSK. HD 3/8
0130	BS1737684YP	HALTER, BEDIENTEIL
0140	BS1751543YP	VERBINDUNGSSTANGE
0150	BS703409	MUTTER, 5/16-18, GR5
0170	BS703331	MUTTER, 5/16-24
0180	BS1739487YP	HALTER, BEDIENTEIL
0190	BS50782MA	KUGELGELENK,STAHL YZ
0230	BS1738240YP	KABELBAUM
0230-10	BS	Eingangswelle UE 600
0300	BS703232	MUTTER, 1/4-20, NYLOCK
0330	BS1738330YP	ARMATURENBRETT KOMPL. DOPPEL L
0340	BS703062	SCHRAUBE, 10-14
0360	BS1750554YP	SCHULTERBOLZEN
0370	BS703185	RHSSNB
0390	BS1739500AYP	AUFNAHME, ARMATURENTRAGER
0400	BS1732471SM	CABLE & SPRING ASSY
0410	BS1739783BMYP	KUPPLUNGSHEBEL RECHTS
0420	BS703412	NUT, NYLOCK, 10-24
0430	BS1723965SM	HAND GRIP - HEATED
0440	BS703223	ABSTANDSHULSE ABGESETZT
0450	BS703137	SPACER
0470	BS1734587ASM	HANDLE - UPPER RH
0480	BS1734586ASM	HANDLE - UPPER LH
0490	BS703168	CHSNB
0500	BS1737759AYP	HANDGRIFF, UNTEN
0510	BS703065	WINGKNOB, 5/16-18
0515	BS703587	WASHER, 5/16
0520	BS1736176YP	SCHEINWERFER KOMPL.
--	BS	Eingangswelle UE 600
--	BS1736180YP	SOCKET, LIGHT, W/GASKET
--	BS1736180
0530	BS703228	SCHRAUBE, 5/16-18 X .75
0540	BS313441MA	BRACKET, CABLE ADJ BL
0550	BS308146MA	BOOT, CLUTCH SPRING
0560	BS1502113MA	CABLE,FR-DR P7 5-13B
0590	BS1733505BMYP	HALTER
0600	BS703124	DISTANZSTUCK
0610	BS1733509SM	ROD & SPRING ASSY
0630	BS2108360SM	SPRING
0640	BS1960353SM	ABZIEHER-SCHEIBE
0650	BS1736360YP	GESTANGE
0680	BS1733192SM	KNOB-SLOT SPEED BLACK
0700	BS1921319
0740	BS7091105YP	SCHRAUBE
0750	BS1960589SM	SCREW-RD HD PHILLIPS
0760	BS1933896
0880	BS7091081SM	HWST, 1/4-15X3/4 BZ
0900	BS704067	NUT, HEX FLNG,5/16-18
0910	BS703585	CAPSCREW, 5/16-18X1
0930	BS71071MA	UNTERLEGSCHEIBE
0940	BS703061	NUT, HEX KEPS, 1/4-20
0950	BS1931317
0960	BS1724037SM	RESISTOR BLOCK
