Snapper M924E (1696000) - 24" Snowthrower, 9 HP, Two Stage Intermediate Handles & Controls Group Ricambi

Name: MUTTER, 1/4-20, NYLOCK
Price: 4.84 EUR

MUTTER, 1/4-20, NYLOCK

Articolo numero:

BS703232

Posizione:

0300

4.84 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

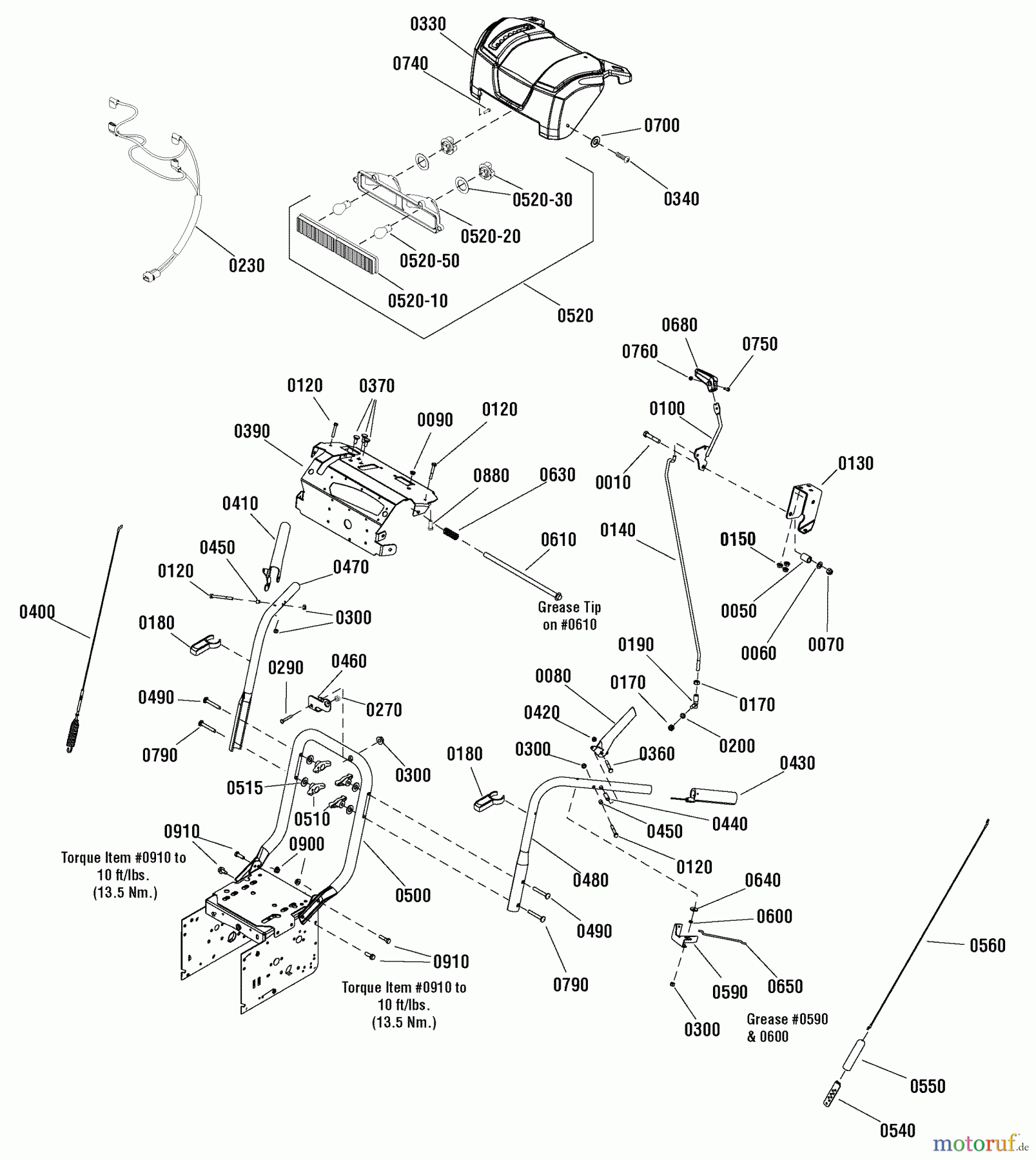

Snapper Schneefräsen M924E (1696000) - Snapper 24

Posizione	Articolo numero	Descrizione
0010	BS703589	CAPSCREW, 3/8-16X2
0050	BS50786MA	SPRING,.509 DIA X0.75
0060	BS71072MA	WASHER, FLAT .406X.81
0070	BS1919439SM	NUT - HEX LOCK
0080	BS1739782AYP	KUPPL.HEBEL. LINKS
0090	BS1667588SM	BUSHING
0100	BS1736836YP	DREHZAHLREG.HEBEL KOMPL.
0120	BS1921971SM	KOPFSCHRAUBE, SECHSK. HD 3/8
0130	BS1737684YP	HALTER, BEDIENTEIL
0140	BS1751543YP	VERBINDUNGSSTANGE
0150	BS703409	MUTTER, 5/16-18, GR5
0170	BS703331	MUTTER, 5/16-24
0180	BS1739487YP	HALTER, BEDIENTEIL
0190	BS50782MA	KUGELGELENK,STAHL YZ
0200	BS703116	LCKWSHR
0230	BS1738286YP	KABELSTRANG, SCHEINWERFER
0270	BS1501874MA	BUCHSE, SCHACHT KURBEL
0290	BS1931323SM	BOLT-RD HD SH SQ NK
0300	BS703232	MUTTER, 1/4-20, NYLOCK
0330	BS1757551YP
0340	BS703062	SCHRAUBE, 10-14
0360	BS1750554YP	SCHULTERBOLZEN
0370	BS340720MA	BOLT,5/16-18X.75 CARR
0390	BS1739500AYP	AUFNAHME, ARMATURENTRAGER
0400	BS703221	CABLE & SPRING ASSEMB
0410	BS1739783AYP	KUPPL.HEBEL. RECHTS
0420	BS703412	NUT, NYLOCK, 10-24
0430	BS1726317SM	GRIP, FOAM
0440	BS703223	ABSTANDSHULSE ABGESETZT
0450	BS703137	SPACER
0460	BS1735589YP	HALTER
0470	BS1734587ASM	HANDLE - UPPER RH
0480	BS1734586ASM	HANDLE - UPPER LH
0490	BS703168	CHSNB
0500	BS1737274AYP	HANDGRIFF, UNTER
0510	BS703065	WINGKNOB, 5/16-18
0515	BS703587	WASHER, 5/16
0520	BS1736176YP	SCHEINWERFER KOMPL.
0520-10	BS	Eingangswelle UE 600
0520-20	BS	Eingangswelle UE 600
0520-30	BS1736180YP	SOCKET, LIGHT, W/GASKET
0520-50	BS	Eingangswelle UE 600
0540	BS313441MA	BRACKET, CABLE ADJ BL
0550	BS308146MA	BOOT, CLUTCH SPRING
0560	BS1502113MA	CABLE,FR-DR P7 5-13B
0590	BS1733505BMYP	HALTER
0600	BS703124	DISTANZSTUCK
0610	BS1733509SM	ROD & SPRING ASSY
0630	BS2108360SM	SPRING
0640	BS1960353SM	ABZIEHER-SCHEIBE
0650	BS1736360YP	GESTANGE
0680	BS1733192SM	KNOB-SLOT SPEED BLACK
0700	BS1921319
0740	BS7091105YP	SCHRAUBE
0750	BS1960589SM	SCREW-RD HD PHILLIPS
0760	BS1933896
0790	BS703059	BOLZEN, 5/16-18X2
0880	BS7091081SM	HWST, 1/4-15X3/4 BZ
0900	BS703222	MUTTER, 5/16-18
0910	BS723873
