Snapper P2132E (1696179-01) - 32" Snowthrower, 21 HP, Large Frame Traction Drive Group Ricambi

Name: MUTTER, 5/16-18
Price: 8.53 EUR

MUTTER, 5/16-18

Articolo numero:

BS703222

Posizione:

0330

8.53 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

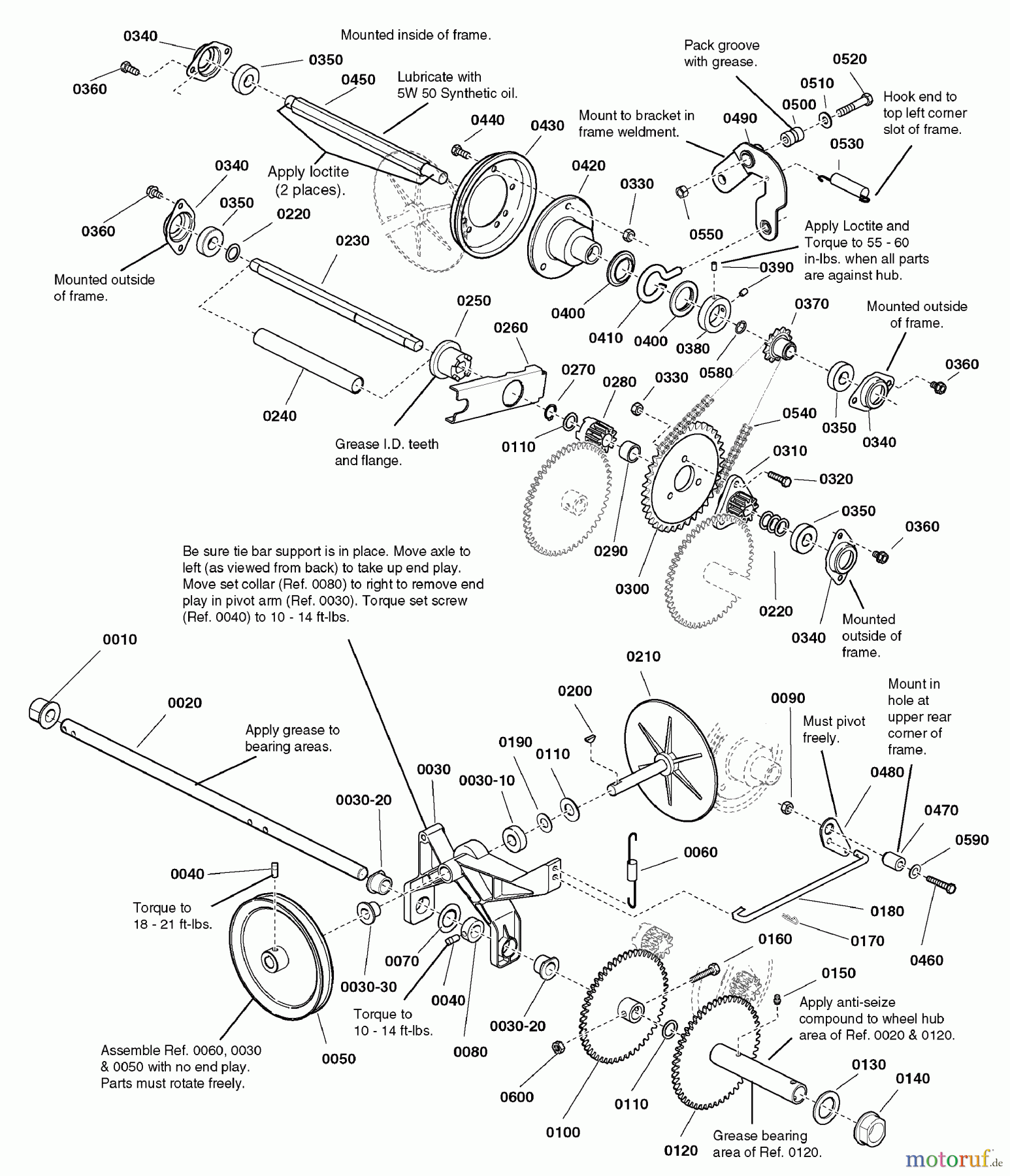

Snapper Schneefräsen P2132E (1696179-01) - Snapper 32

Posizione	Articolo numero	Descrizione
0010	BS1666001SM	BUSHING, 1" LONG
0020	BS1736641YP	ACHSE
0030	BS1755734YP	PIVOT ARM
0030-10	BS1665521SM	BEARING, BALL
0030-20	BS1666425SM	BUSHING
0030-30	BS1666855SM	BUSHING-0.627IDX0.816
0040	BS1928721SM	SET SCREW
0050	BS1672595SM	PULLEY & HUB ASMY-W/
0060	BS703148	FEDER
0070	BS703149	U-SCHEIBE
0080	BS703150	KLEMMSCHELLE
0090	BS1960686SM	NUT, HEX
0100	BS1736639YP	ZAHNRAD KOMPL.
0110	BS703151	U-SCHEIBE
0120	BS1755727YP	GEAR & HUB ASMY W/BUS
0130	BS2860169SM	WASHER-1.188(1.22IDX1
0140	BS1720305SM	BUSHING-1.135IDX1.62
0150	BS7076998SM	ZERK - STRAIGHT 1/4
0160	BS51374YP	KOPFSCHRAUBE
0170	BS1722460SM	PIN-QUICK .080WIRE 1.
0180	BS1726467SM	ROD-.306DIA 09.51 LG
0190	BS703580	WASHER, 5/8
0200	BS703891	KEIL, 3/16X.625
0210	BS1719879SM	DISC, DRIVE, W/ SPIND
0220	BS2860164SM	WASHER-0.625(0.69IDX1
0230	BS1718752SM	JACKSHAFT-DOUBLE D 12
0240	BS1720298SM	SPRING-COMP 0.780IDX
0250	BS1718689SM	CLUTCH-SLIDING 1.5OD
0260	BS1720078ASM	ARM-CLUTCH LF SNOW B
0270	BS703979	RETAINER, EXT, 3/4
0280	BS1718688SM	GEAR-STATIONARY CLUT
0290	BS1679556SM	SPACER-0.766IDX1.00
0300	BS1667330SM	SPROCKET-36T 6.020O
0310	BS1718687SM	GEAR-10T DBL D LF S
0320	BS703585	CAPSCREW, 5/16-18X1
0330	BS703222	MUTTER, 5/16-18
0340	BS1667341SM	RETAINER, BEARING, BZ
0350	BS1705897SM	BEARING, BALL 11/16X1
0360	BS703949	SCHRAUBE, 5/16-18.625
0370	BS1726931SM	SPROCKET-10T LF SNOW
0380	BS1667335SM	COLLAR, SET, 1.251 X
0390	BS1960348SM	SCREW-SET HEX SKT CUP
0400	BS1678956SM	COLLAR, THRUST
0410	BS1666207SM	PIN-LOOP .375DIA X 2.
0420	BS1665995SM	HUB, FRICTION DISC
0430	BS1725428SM	DISC, FRICTION
0440	BS704287
0450	BS1736100SM	SHAFT-HEX 0.750A/F 1
0460	BS1735776YP	KOPFSCHRAUBE, STECKD. HD
0470	BS1666106SM	BUSHING
0480	BS1700473SM	BELLCRANK, BLACK
0490	BS1669256SM	SHIFT ARM / BUSHING A
0500	BS1666114SM	BUSHING, YELLOW
0510	BS703878	WASHER, FLAT
0520	BS703589	CAPSCREW, 3/8-16X2
0530	BS703157	FEDER-EXTN
0540	BS1666980SM	CHAIN-ROLLER #40 22.
0550	BS703158	MUTTER
0580	BS1736222YP	HALTERING
0590	BS1919326SM	SCHEIBE - 0.312(0.34IDX
0600	BS95661YP	SECHSKANTMUTTER
