Snapper NIR5003B (82425) - 16.5" Intermediate Rear Tine Tiller (CR), 5 HP, Series 3 MAIN CASE/GEARS (Series 3) Ricambi

Name: WELD, AXLE, YELLOW
Price: 151.31 EUR

WELD, AXLE, YELLOW

Articolo numero:

BS7040609YP

Posizione:

151.31 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

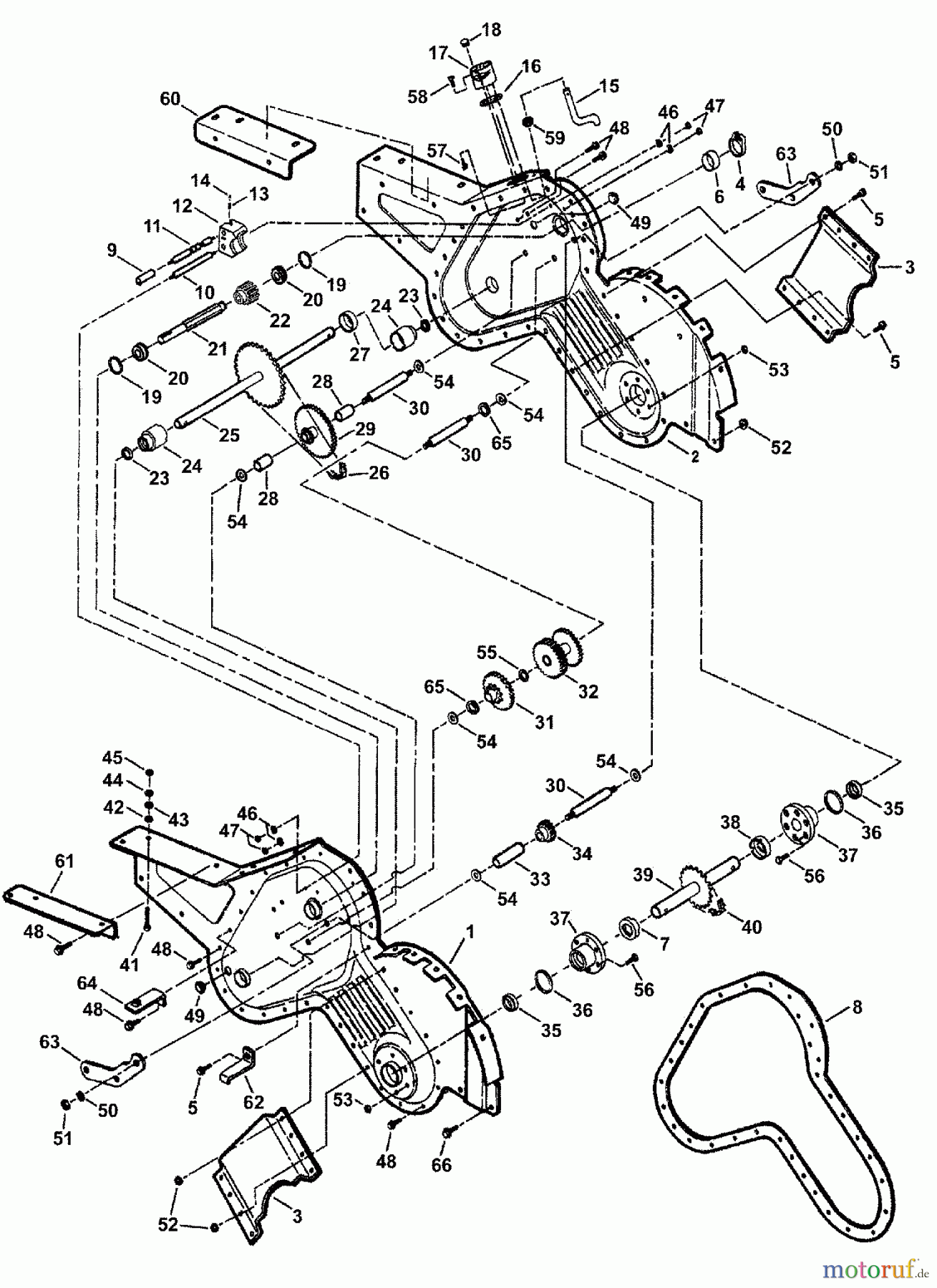

Snapper Motorhacken und Kultivierer NIR5003B (82425) - Snapper 16.5

Posizione	Articolo numero	Descrizione
	BS7061821YP	CASE KIT, IR5003B
1	BS7034681
2	BS7034682YP	CASE HALF, RH
3	BS7034677YP	STIFFENER, PLATE, RH
4	BS7015597
5	BS7091681YP	CPSCW, HXFL, 5/16 X 1
6	BS7015598YP	VERSCHLU?DECKEL
7	BS7028672YP	SPACER, SHORT IRT
8	BS7028753YP	GASKET, MAIN CASE
9	BS7045130YP	SPACER, .500 OD X.388
10	BS7021977
11	BS7022512YP	SHAFT, MAIN DETENT
12	BS7046604YP	FORK, SHIFT PRIMARY
13	BS7023252YP	SPRING, HI-LO SHIFT
14	BS7014469YP	BALL, DETENT
15	BS7015405YP	UMLENKHEBEL
16	BS7015679YP	GASKET, SHIFT ARM PIV
17	BS7015313YP	PIVOT, SHIFT ARM
18	BS7015409YP	PLUG, BUTTON, 1/2
19	BS7015350YP	O-RING
20	BS7010756YP	KUGELLAGER
21	BS7023849YP	SHAFT, INPUT
22	BS7028717YP	PINION, INPUT
23	BS7015136YP	DICHTUNG, OEL
24	BS7015319YP	ACHSLAGER
25	BS7040609YP	WELD, AXLE, YELLOW
26	BS7015347YP	CHAIN, TRACTION, #40
27	BS7015318YP	SPACER, WHEEL SHAFT
28	BS7015348YP	SPACER, .791 OD X .64
29	BS7018790YP	GEAR & SPROCKET
30	BS7045127YP	SHAFT, HEAT TREATED G
31	BS7053826YP	(C) TINE DRIVE GEAR A
32	BS7054412
33	BS7042764YP	SPACER, .816 OD X.647
34	BS7051653YP	REVERSE IDLER ASMY
35	BS7015342YP	DICHTUNG, OEL
36	BS7015343YP	O-RING
37	BS7018869
38	BS7029890YP	SPACER, TINE SHAFT LO
39	BS7041726YP	WELD, TINE SHAFT
40	BS7028476YP	CHAIN, ENDLESS ROLLER
41	BS7091513YP	SCHRAUBE, 5/16-24X1-3/4
42	BS703297	RETAINER, GR5, 5/16
43	BS703350	U-SCHEIBE, 5/16
44	BS7091690YP	SLW, .321X.586X.078 B
45	BS703331	MUTTER, 5/16-24
46	BS703462	U.-SCHEIBE, 1/4
47	BS7090095YP	NUT, HEX, 1/4
49	BS7011024YP	STOPFEN
48	BS7091946YP	HWST, 5/16C X5/8 BP
50	BS7090873YP	ITLW, 7/16 BZ
51	BS7090460SM
52	BS703409	MUTTER, 5/16-18, GR5
53	BS703233	MUTTER, 1/4-20, GR5
54	BS7090953YP	WASHER, SHIM
55	BS7020938YP	WASHER, SHIM, 5/8
56	BS001X38MA	BOLT,HEX .25-20X0.62
57	BS7091122
58	BS703054	SCHRAUBE, 1/4-20X0.625
59	BS7023514YP	O-RING, O12
60	BS7038647YP	REINFORCEMENT, FRAME,
61	BS7038648YP	REINFORCEMENT, FRAME,
62	BS7034680YP	BRACE, BELT COVER
63	BS7061174
64	BS7033962YP	BRKT, BELT COVER
65	BS7033531YP	WASHER, SHIM
66	BS7090606SM	HFLB, 5/16C X5/8 ZP
