Toro 74813 (Z4800) - TITAN Z4800 Zero-Turn-Radius Riding Mower, 2008 (280000001-280999999) LH TRANSMISSION ASSEMBLY NO. 109-3372 Ricambi

104-5311

Articolo numero:
TR103-7441
Posizione:
23
85.05 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

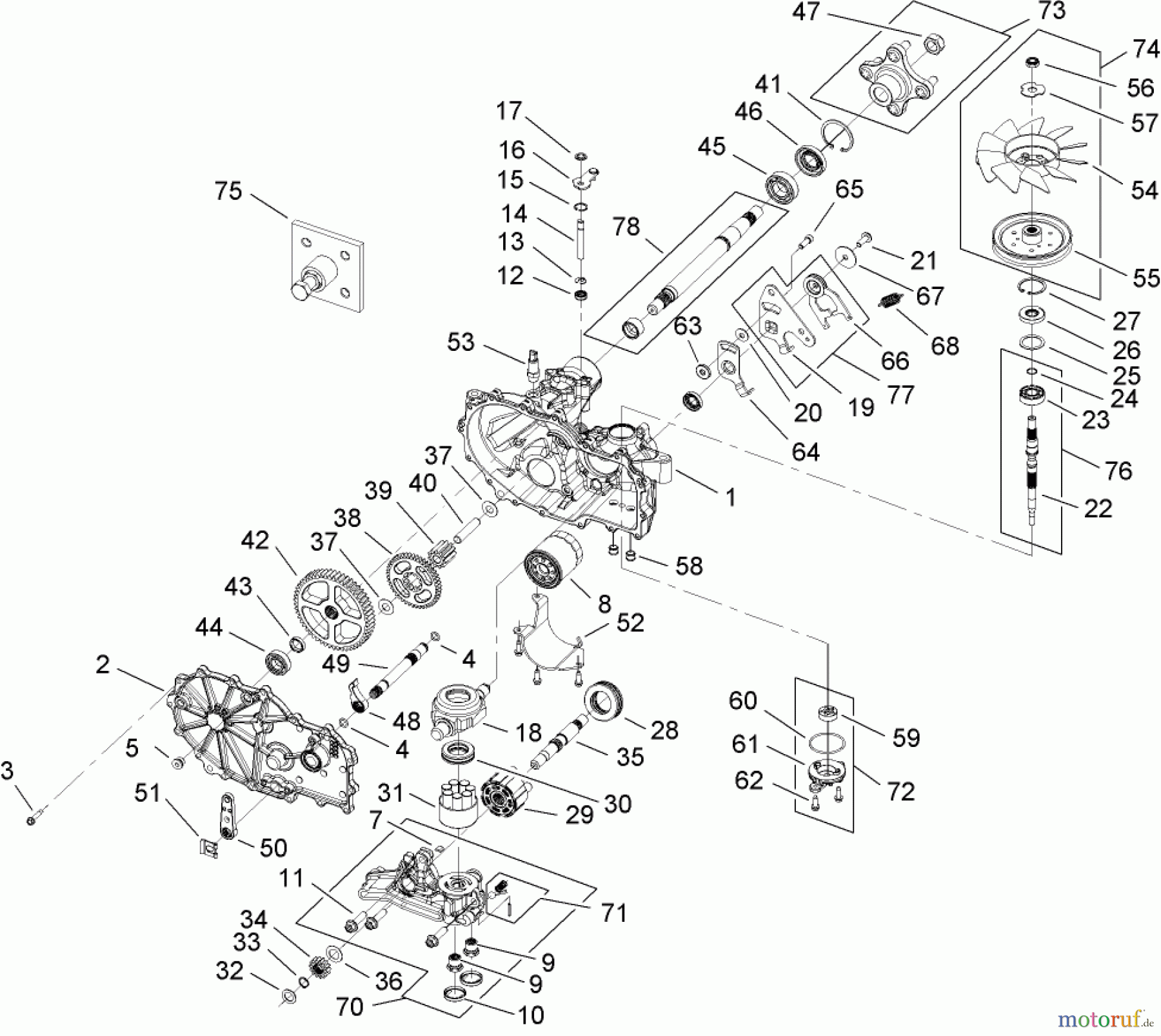

Toro Neu Mowers, Zero-Turn 74813 (Z4800) - Toro TITAN Z4800 Zero-Turn-Radius Riding Mower, 2008 (280000001-280999999) LH TRANSMISSION ASSEMBLY NO. 109-3372
PosizioneArticolo numeroDescrizione
1 TR114-8471MAIN HOUSING KIT
2 TR114-8472SIDE COVER KIT
3 TR104-5305Schraube
4 TR114-1678O-RING
5 TR112-9850104-2189
6 TR114-1679
7 TR114-1680PLATE-BYPASS
8 TR109-3321ELEMENT-OIL FILTER, HYD
9 TR114-1682CHECK PLUG
10 TR114-1683SEAL-PLUG
11 TR114-1684SCREW-HFHC
12 TR106-8676SEAL-LIP
13 TR106-8677Sicherungsring
14 TR114-1685ROD-BYPASS
15 TR106-8679RING-RETAINING, INT
16 TR107-2490Schaltarm
17 TR106-8681RING-RETAINING, EXT
18 TR104-5304SWASHPLATE-TRUNNION
19 TR114-1686ARM-CONTROL, RH
20 TR114-8491WASHER
21 TR107-2488Schraube
22 TR114-1687SHAFT-INPUT
23 TR103-7441104-5311
24 TR104-5307RING-RETAINING
25 TR104-5308Distanzscheibe
26 TR104-5310SEAL-LIP
27 TR104-5309Seegerring
28 TR114-1688BEARING-THRUST
29 TR114-1689MOTOR CYLINDER BLOCK KIT
30 TR94-6922BEARING-THRUST
31 TR110-8561PUMP BLOCK ASM
32 TR104-5339SCHEIBE
33 TR104-5340RING-RETAINING
34 TR114-1690GEAR-14T
35 TR114-1691SHAFT-MOTOR
36 TR104-5360WASHER
37 TR94-1933SCHEIBE
38 TR114-1692GEAR-45T
39 TR114-1693GEAR-11T
40 TR104-5329PIN-JACKSHAFT
41 TR104-2169RING-RETAINING
42 TR114-1694GEAR-54T
43 TR114-1695SPACER
44 TR114-1696BEARING-BALL
45 TR104-2143Kugellager
46 TR104-2144SEAL
47 TR105-1895NUT
48 TR114-1697PAWL-BRAKE
49 TR114-1698SHAFT-INBOARD BRAKE
50 TR114-1699HANDLE-BRAKE
51 TR114-8450CLIP-RETAINING
52 TR114-8473GUARD-FILTER, LH
53 TR109-3278ADAPTER-STRAIGHT
53:1 TR1-603921237-42
54 TR114-8453FAN-7.0
55 TR109-5938FAN AND PULLEY KIT
56 TR105-1875NUT-LOCK
57 TR107-9122WASHER-SLOTTED
58 TR114-8455TUBE-CONNECTING
59 TR104-2122GEROTOR ASM
60 TR109-3540O-RING, SEAL
61 TR114-8457COVER-CHARGE PUMP
62 TR104-2120SCHRAUBE
63 TR114-8458SPACER
64 TR114-8474ARM-NEUTRAL, LEFT
65 TR106-8682SCREW-SH
66 TR114-8475RTN CCW ASM
67 TR114-8478WASHER
68 TR109-5592SPRING-EXTENSION
69 TR109-3537COMPLETE SEAL KIT
70 TR114-8476LH CENTER SECTION KIT
71 TR114-8464CHARGE RELIEF KIT
72 TR114-8465CHARGE KIT
73 TR109-5939HUB KIT
73:2 TR
74 TR109-5938FAN AND PULLEY KIT
75 TR114-8467HUB-PULLER, 4 BOLT
76 TR114-8468INPUT SHAFT KIT
77 TR114-8477RTN CCW KIT
78 TR114-8470AXLE SHAFT KIT
