Toro 38674 (1028 OXE) - Power Max Heavy Duty 1028 OXE Snowthrower, 2013 (SN 313000001-312999999) MUFFLER, CYLINDERHEAD AND CARBURETOR ENGINE ASSEMBLY Ricambi

BREATHER TUBE KIT

Articolo numero:

TR121-0340

Posizione:

11.03 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

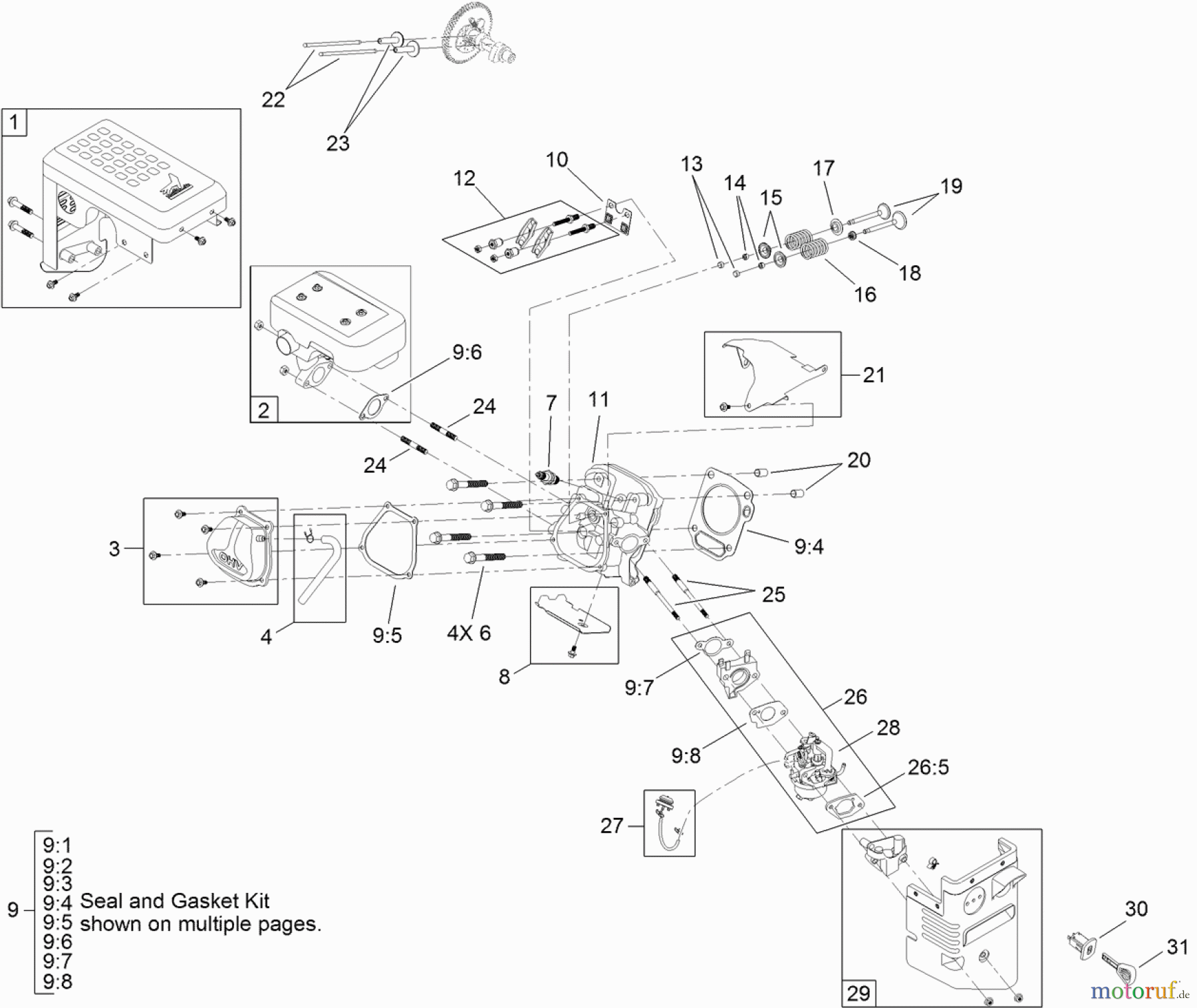

Posizione	Articolo numero	Descrizione
1	TR121-4101	MUFFLER SHIELD KIT
2	TR121-4100	MUFFLER KIT
3	TR121-0343	VALVE COVER KIT
4	TR121-0340	BREATHER TUBE KIT
6	TR121-0302	SCREW-HHF
7	TR119-1901	81-3250
8	TR121-0348	LOWER HEAT SHROUD KIT
9	TR121-0358	SEAL AND GASKET KIT
9:1	TR
9:2	TR
9:3	TR121-0228	GASKET-COVER, CRANKCASE
9:4	TR121-0231	GASKET-HEAD, CYLINDER
9:5	TR121-0234	GASKET-COVER, VALVE
9:6	TR
9:7	TR
9:8	TR
10	TR121-0247	PLATE-GUIDE, PUSH ROD
11	TR121-0230	HEAD-CYLINDER
12	TR121-0245	ROCKER ARM ASM
13	TR121-0244	ROTATOR-VALVE
14	TR120-4307	KEEPER-VALVE
15	TR120-4306	RETAINER-SPRING, VALVE
16	TR120-4305	SPRING-VALVE
17	TR120-4303	SEAT-SPRING, VALVE
18	TR120-4304	SEAL-STEM, VALVE
19	TR121-0328	VALVE KIT
20	TR120-4200	PIN-DOWEL
21	TR121-4102	UPPER HEAT SHROUD KIT
22	TR121-0246	ROD-PUSH
23	TR120-4298	LIFTER-VALVE
24	TR121-0304	STUD-MOUNT, MUFFLER
25	TR121-0303	STUD-MOUNT, CARBURETOR
26	TR121-0359	COMPLETE CARB SERVICE KIT
26:5	TR121-0254	GASKET-COATED, RUBBER
27	TR121-0344	PRIMER KIT
28	TR121-0360	CARBURETOR INTERNAL REPAIR KIT
29	TR121-0355	HEATER BOX KIT
30	TR121-0283	SWITCH-KEY
31	TR117-7728	KEY
