2135YP - Snapper 21" Walk-Behind Mower, 3.5 HP, Steel Deck, BBC, Serie

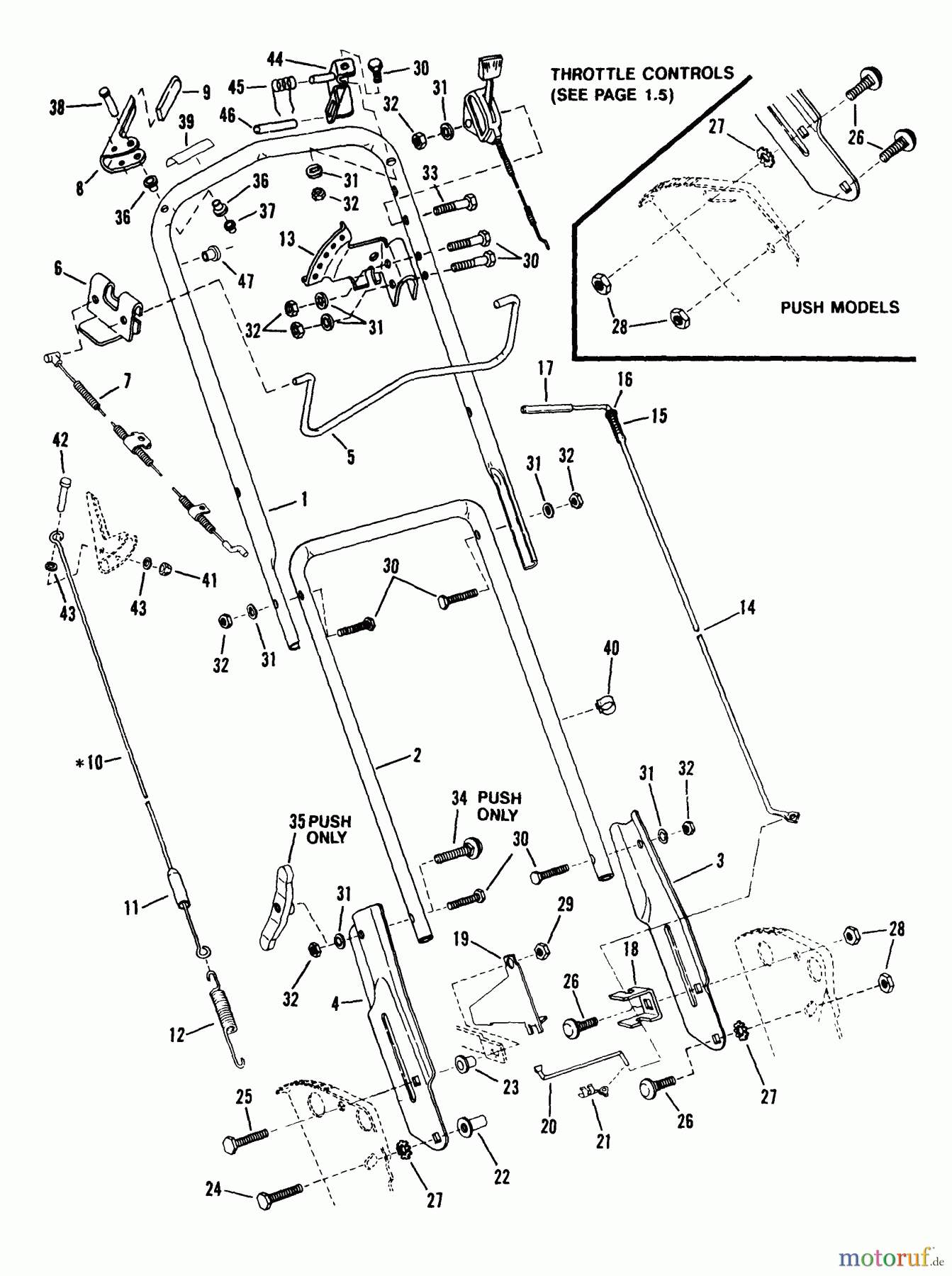

Handles & Controls (Series 2)
Handles & Controls (Series 2) 2135YP - Snapper 21" Walk-Behind Mower, 3.5 HP, Steel Deck, BBC, Series Y
Posizione
Articolo numero
Descrizione
1
BS7036141YP
UP HANDL BBC
1
BS7036141
2
BS7036037
3
BS7038247YP
HANDLE, LOWER L.H.
4
BS7038246YP
HANDLE, LOWER R.H.
5
BS7019762
6
BS7032445YP
CLIP, BLADE CONTROL,
7
BS7018841YP
CABLE, BBC
8
BS7074473BMYP
HANDLE, CLUTCH
9
BS7014307YP
GRIFF
10
BS7023134YP
CABLE, CLUTCH PULL
11
BS7012121
12
BS7012122YP
FEDER
13
BS37727
14
BS7023795
15
BS7012093YP
FEDER, V21
16
BS703350
U-SCHEIBE, 5/16
17
BS7023801YP
GRIP
18
BS7032830YP
ANCHOR, LEVER, YELLOW
19
BS7032408YP
BELT GUIDE
20
BS7023790YP
ROD, TRANSFER
21
BS7010937YP
CLIP
22
BS7090895YP
T-NUT, 5/16C
23
BS7012114SM
BUSHING, DIFF.
24
BS9357MA
SCHRAUBE, 5/16-18X .75WD
25
BS7090238SM
HHCS, 5/16F X1 GR5 BZ
26
BS7090799SM
RHSSNB, 5/16C X5/8 GR
27
BS703936
WASHER, .325IDX.850OD
28
BS703409
MUTTER, 5/16-18, GR5
29
BS7090222YP
HLN, 5/16F
30
BS7090552YP
HHCS, 1/4FX1-3/8 GR5
31
BS703462
U.-SCHEIBE, 1/4
32
BS7090095YP
NUT, HEX, 1/4
33
BS7090111YP
HHCS, 1/4F X1-3/4 GR5
34
BS7090950YP
RHSNB, 1/4C X1-7/8 GR
35
BS014X79MA
FLUGELMUTTER.25-20
36
BS7014343YP
LAGERBUCHSE
37
BS704005
PUSHNUT, CAP, 1/4
38
BS7023792YP
PIN
39
BS7023746YP
DECAL, BLADE CONTROL,
40
BS7023813SM
CLIP, WIRING HARNESS
41
BS7014734YP
DRUCKMUTTER
42
BS7014733YP
GABELSTIFT
43
BS7091552SM
FW, .219X.5X.049 BZ
44
BS7051904YP
WELD, BRKT, BBC, BLAC
45
BS7015108YP
SPRING, BLADE CONTROL
46
BS7014946YP
GRIP, PIVOT
47
BS7015092YP
BUSHING
