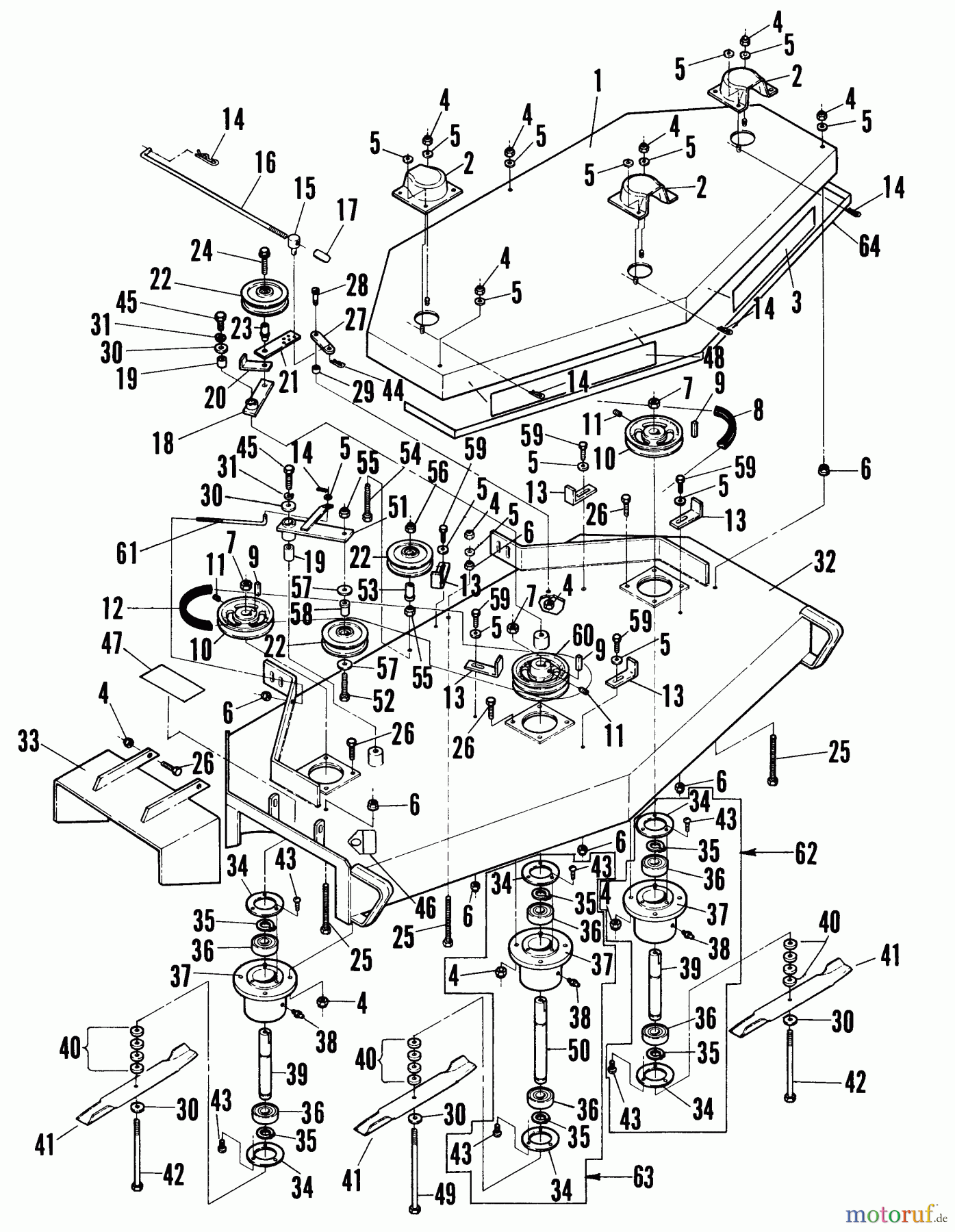

48" Mower, Front Deck W48142BV - Snapper 48" Walk-Behind Mower, 14 HP, Variable Belt Drive, Commercial Lawn & Turf Series 2

Snapper Rasenmäher für Großflächen W48142BV - Snapper 48
PosizioneArticolo numeroDescrizione
1 BS7057643YPCVR, 48 W/DCL
2 BS7076524
3 BS7023844YP(C) DECAL, 48
4 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
5 BS7090692YPFW, 5/16 X 7/8 X .083
6 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
7 BS7076980YPHN, 5/8C
8 BS7076677YP(C) BELT, E/D 48
9 BS7012757YPKEIL, VIERKANT
10 BS7076398
11 BS5025061SM
12 BS7076676YP(C) BELT, B/B 48
13 BS7032874YP(C) BELT GUIDE
14 BS7076988YP(C) HAIR PIN, 1-9/16
15 BS7077921YP(C) SWIVEL
16 BS7077940YP(C) ROD, BLADE DRIVE
17 BS7023328YP(C) S-CAP
18 BS7076646YPARM, IDLER, W/BUSH
19 BS7076452YP(C) BEARING, OILITE P
20 BS7076681YP(C) SNUBBER, BELT, PL
21 BS7076686YP(C) ARM, TIGHTENING
22 BS7076688
23 BS7076694YP(C) BUSHING, FLANGE,
24 BS7091580YPHFLB, 3/8C X1-3/4 GR5
25 BS7076969YP(C) BOLT, TAP, 5/16C
26 BS703585CAPSCREW, 5/16-18X1
27 BS7076687
28 BS7077001YP(C) SHSHB, 3/8X3/4
29 BS7076689YP(C) SPACER,.75 OD X.4
30 BS1960020SMSCHEIBE-0.625(0.65IDX1
31 BS7090333YPSLW, .634X1.072X.156
32 BS7057576YP(C) 48"DECK W/ DECAL
33 BS7077752YP(C) CHUTE, 48
34 BS7019096YP(C) CAP, CUTTER HOUSI
35 BS7023548YPRETAINING RING
36 BS7019125YP(C) BEARING
37 BS7027685YP(C) HOUSING, CUTTER
38 BS7076997
39 BS7023418YPSPINDLE, CUTTER
40 BS7076436YPSPACER, 1.0 OD X.640
41 BS7017036BMYPBLADE, 16 1/4, HL BLA
42 BS7076946YP(C) HHCS, 5/8F X7-1/2
43 BS704060SCREW,HEX, #10-24X.5
44 BS7076989YP(C) HAIR PIN, 2-1/2
45 BS7090767YPHHCS, 5/8C X1 GR5 ZP
46 BS7013010SMDECAL-DANGER, CUT FIN
47 BS7076533YPDCL, CAUTION
48 BS7044640YP(C) DECAL, SNAPPER
49 BS7076947YP(C) HHCS, 5/8F X8 GR5
50 BS7027710YP(C) SPINDLE, CUTTER
51 BS7076647YP(C) ARM, IDLER, W/BUS
52 BS7091305SMHHCS, 3/8C X2 GR5 YZ
53 BS7076836YP(C) BUSHING, IDLER FL
54 BS703873KOPFSCHRAUBE,3/8-16X2.5
55 BS703117MUTTER
56 BS703333MUTTER, 3/8-16
57 BS7090517SMFW, .438X1X.084 YZ
58 BS7076695YP(C) BUSHING, FLANGE,
59 BS7091318
60 BS7060899
60 BS7023381YP(C) BUSHING, TAPERLOC
61 BS7076683YP(C) ROD, BELT TENSION
62 BS7059759
63 BS7059964YP(C) CUTTER HOUSING AS
64 BS7023845YP(C) DECAL, STRIPE
