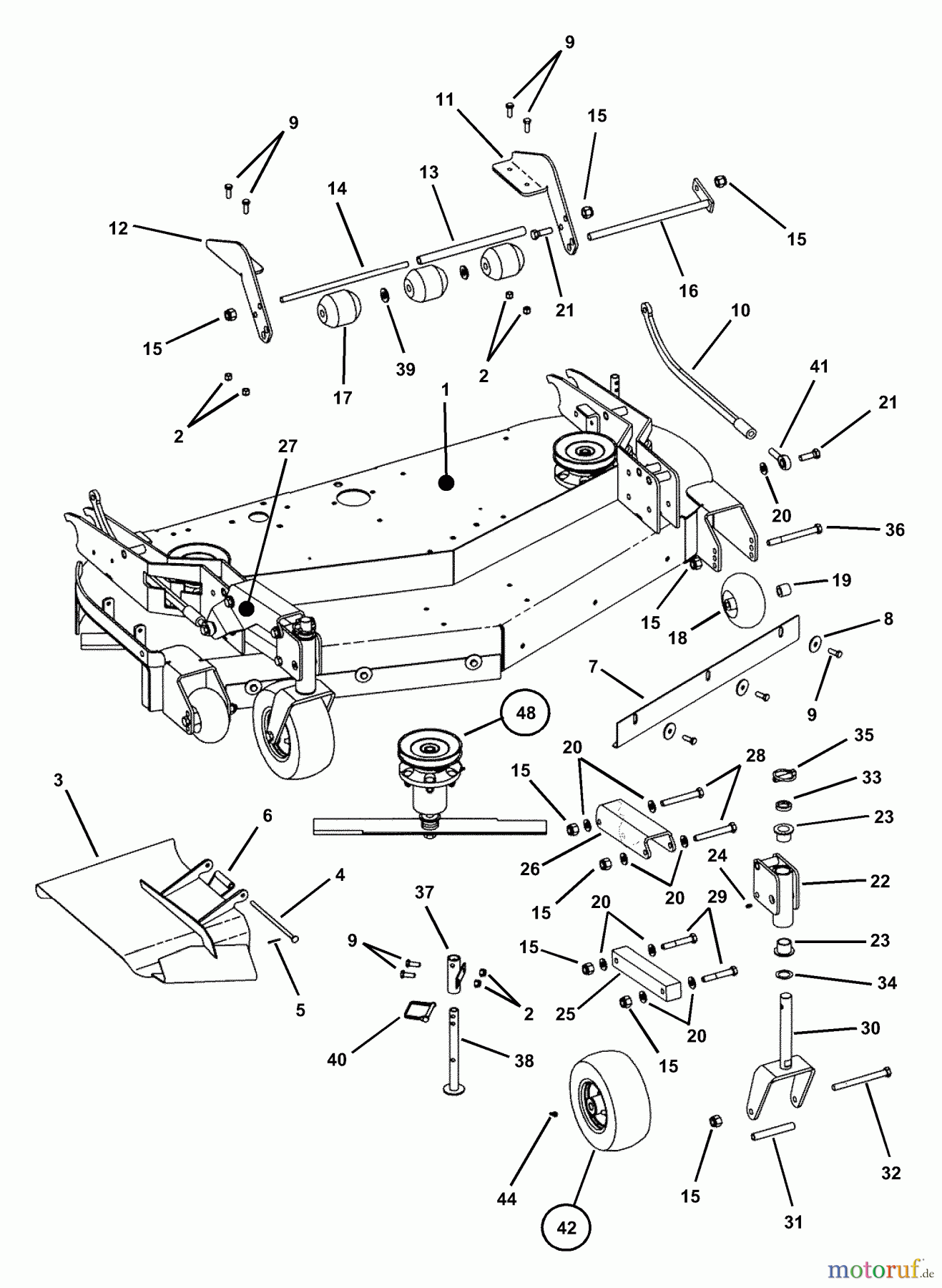

61" Mower Deck Components (Part 1) ZF2301GKU (84576) - Snapper 23 HP Zero-Turn Mower, Kubota, Out Front, Z-Rider Series 1

Snapper Nullwendekreismäher, Zero-Turn ZF2301GKU (84576) - Snapper 23 HP Zero-Turn Mower, Kubota, Out Front, Z-Rider Series 1 61
PosizioneArticolo numeroDescrizione
1 BS7042651YP(C) WELD, 61" DECK
2 BS703117MUTTER
3 BS7058291YPCHUTE, DISCHARGE
4 BS7029277YPPIN, HINGE, CHUTE
5 BS7091313YPSPLINT
6 BS7027950YPSPRING, CHUTE
7 BS7036445YP(C) BAFFLE, FRONT
8 BS7091331SMU.-SCHEIBE.406X1.5X.120 YZ
9 BS7091304SMSECHSK.SCHRAUBE, 3/8C X1 GR5 Y
10 BS7053437YPWELD, HOC BAR, OFZ, Y
11 BS7036459YP(C) MOUNT, ROLLER, LH
12 BS7036458YP
13 BS7036460YP(C) TUBE, ROLLER
14 BS7036461YP(C) ROD, THREADED ROL
15 BS7091325YPHLN, NYLON, 1/2C YZ
16 BS7027327YP(C) WELD, PIVOT PIN,
17 BS7073142YPROLLER, DECK, BLACK
18 BS1700184SMRAD - 2.60 BREIT 4.9
19 BS7036456YPSPACER, YZ
20 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
21 BS7091884YP(C) HHCS, 1/2C X1-1/2
22 BS7042652YP(C) WELD, CASTER TUBE
23 BS7023556YPBUSHING, CASTER
24 BS703153ZERK,GREASE FITTING
25 BS7036444YP(C) ARM, LOWER CASTER
26 BS7054523
27 BS7054522YPWELD, CASTER ARM, RH
28 BS7029355YPHHCS, 1/2C X3-3/4
29 BS7091821YPHHCS, 1/2C X3
30 BS7054464BMYPWELD, OFZ CASTER
31 BS7022151YP(C) SLEEVE, AXLE
32 BS7091326YPHHCS, 1/2C X5-1/2
33 BS7028641YPSPACER, ELEC CL
34 BS7023747YPBUSHING, MACH, 1
35 BS5020655SM
36 BS703886CAPSCREW, 1/2-13X5
37 BS7042657YP(C) WELD, JACKSTAND T
38 BS7042658YPJACKSTAND, YELLOW
39 BS7027344SMFW, .668X1.324X.098 Y
40 BS7091824YPLYNCH PIN, 5/16" YZ
41 BS7036465YPBALL JOINT, 1/2-20
42 BS7059065YP(C) WHEEL ASSY,4.10-4
?43 BS7059065
44 BS7046430YPMONTAGEFETT
?45 BS7059065
?46 BS7022395YP(C) BEARING, ROLLER
?47 BS7022394YP(C) BEARING, FLANGED
48 BS7054353
?71 BS7035779YP(C) STRAIN RELIEF, WI
?72 BS7042834YP(C) HARNESS, DECK LIF
?78 BS7026107
?79 BS7061865
