Zerto-Turn Mäher ENGINE, EXHAUST AND AIR INTAKE ASSEMBLY Ricambi

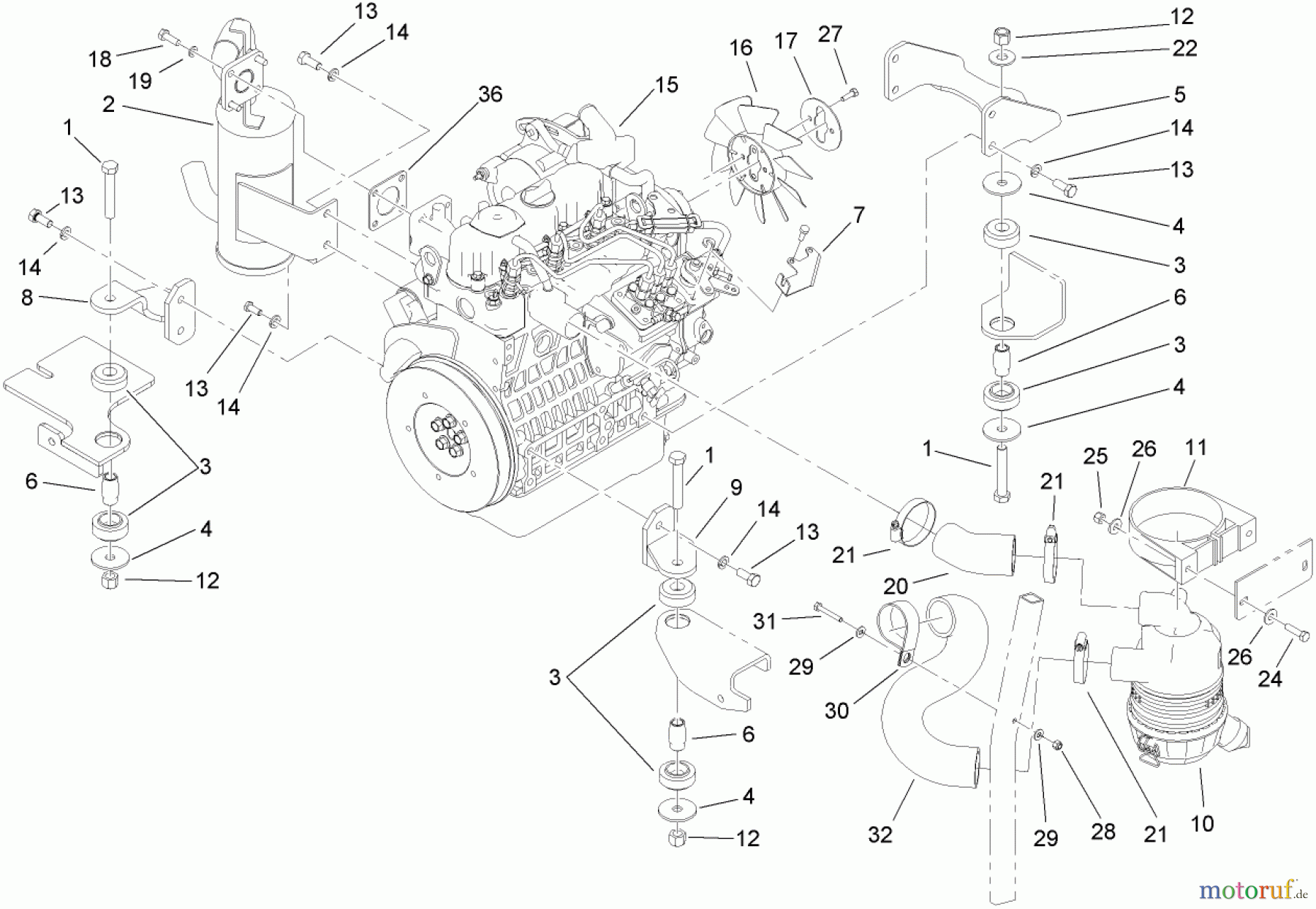

ENGINE, EXHAUST AND AIR INTAKE ASSEMBLY 74274 (Z595-D) - Toro Z Master Mower, 72" TURBO FORCE Side Discharge Deck (SN: 270000001 - 270999999) (2007)

Zerto-Turn Mäher 74274 (Z595-D) - Toro Z Master Mower, 72
PosizioneArticolo numeroDescrizione
1 TR3251-2SCHRAUBE
2 TR107-9909Simmerring
3 TR107-9914MOUNT-ISOLATION
4 TR55-7960Scheibe
5 TR107-9917-03BRACKET-ENGINE MOUNT, REAR
6 TR110-0300SPACER
7 TR112-2383BRACKET-THROTTLE
8 TR107-9920-03RH ENGINE SUPPORT ASM
9 TR107-9930-03LH ENGINE SUPPORT ASM
10 TR93-2190Luftfilter Kpl.
11 TR95-5806Rohrschelle
12 TR3296-23Mutter
13 TR43-0090Schraube
14 TR42-9600FEDERRING
15 TR112-2331114-8170
16 TR110-0814FAN
17 TR110-0816PLATE-REATAINER, FAN
18 TR33114-025SCHRAUBE
19 TR3253-4Federring
20 TR108-5371HOSE-INTAKE, AIR CLEANER
21 TR1-643009CLAMP-HOSE
22 TR3256-26WASHER-FLAT
24 TR322-6Schraube
25 Zerto-Turn Mäher MutterTR3296-29Mutter
26 TR3256-23Scheibe
27 TR33113-020SCREW-HH
28 Zerto-Turn Mäher MutterTR3296-42Mutter
29 TR3256-22Scheibe
30 TR1-643241CLIP-LOOM
31 TR321-10Schraube
32 TR108-5370HOSE-INTAKE, ENGINE
36 TR99-8343GASKET-MUFFLER
