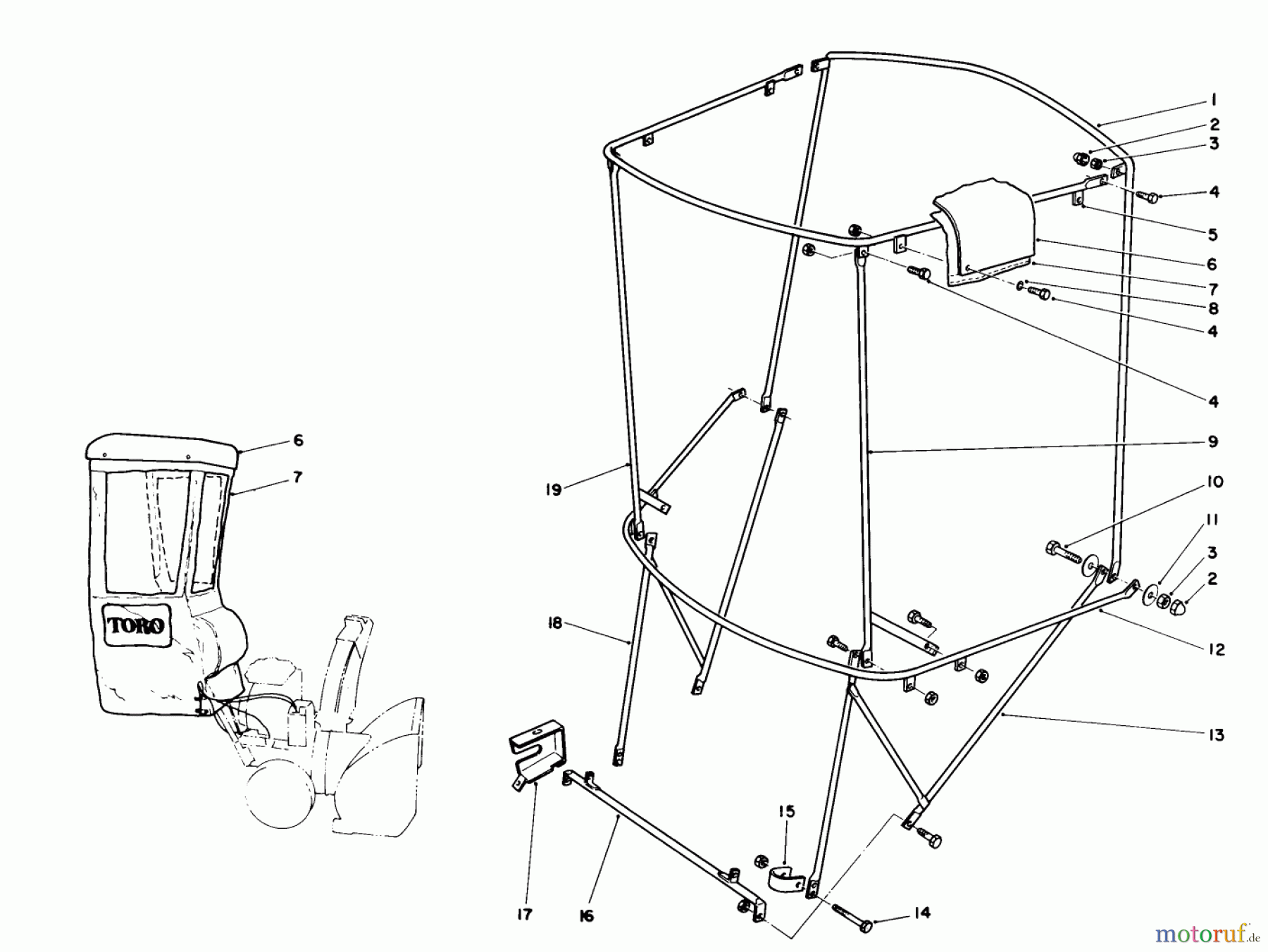

SNOW CAB ASSEMBLY NO. 68-9500 (OPTIONAL) 38545 (828) - Toro 828 Power Shift Snowthrower, 1989 (9000001-9999999)
Posizione | Articolo numero | Descrizione | |
1 | TR70-2260 | VERTICAL BOW | |
2 | TR70-2240 | CAPLUG | |
3 | TR32153-4 | Mutter | |
4 | TR321-4 | Schraube | |
5 | TR70-2250 | FRAME - TOP | |
6 | TR | ||
7 | TR | ||
8 | TR3256-1 | SCHEIBE F. KLEMME | |
9 | TR70-2220 | CORNER POST - LH | |
10 | TR321-6 | Schraube | |
11 | TR3256-58 | Scheibe | |
12 | TR70-2270 | HORIZONTAL BOW | |
13 | TR66-6230 | DISCONTINUED | |
14 | TR321-11 | Schraube | |
15 | TR66-6240 | CLAMP | |
16 | TR66-6210 | DISCONTINUED | |
17 | TR63-3330 | DISCONTINUED | |
18 | TR66-6220 | RH BRACKET | |
19 | TR70-2230 | CORNER POST - RH |
