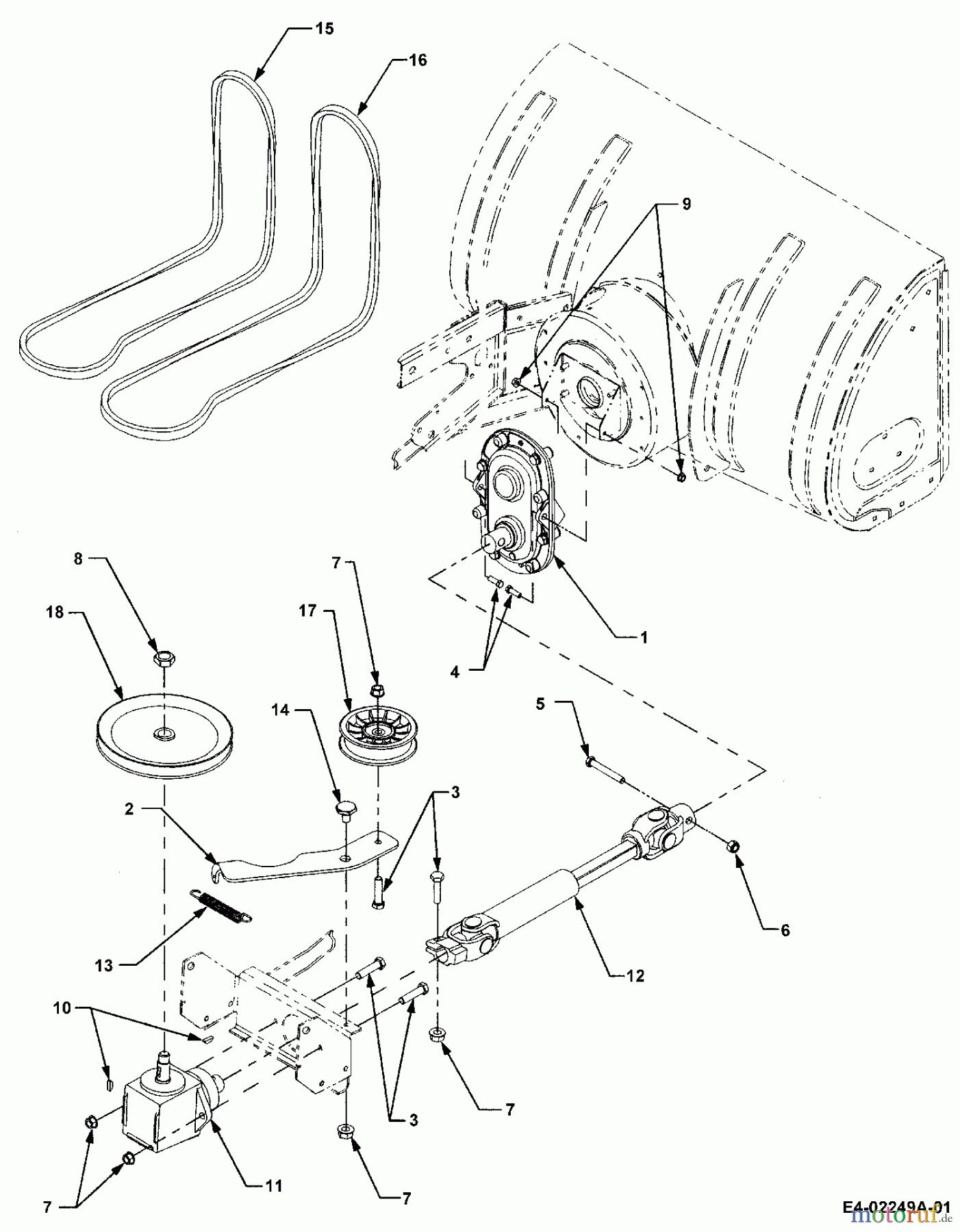

Cardan shaft, Gearbox, Belts 190-341-100 (2005)

MTD Accessories Accessories garden and lawn tractors Snow throwers for CC 2000 SD series 190-341-100 (2005) Cardan shaft, Gearbox, Belts
PosizioneArticolo numeroDescrizione
1 684-0143GEAR BOX ASSY-IMPELL
2 703-3414
3 MTD Accessories HHCS:3/8-16:1.50:GR5:STD710-0520HHCS:3/8-16:1.50:GR5:STD
4 MTD Accessories HHCS:1/4-20:.75:GR5:STD710-3015HHCS:1/4-20:.75:GR5:STD
5 710-0772HHCS:5/16-24:2.00:GR5:SPEC
6 MTD Accessories NUT:HEXLK:5/16-24 GR8:NYLON712-0411NUT:HEXLK:5/16-24 GR8:NYLON
7 MTD Accessories NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
8 712-0923NUT-HEX CENTER L
9 712-0324NUT:HEXLK:1/4-20:GR8:NYLON
10 714-0126KEY-HI-PRO:3/16 x 3/4 DIA
11 717-0250GEAR ASM RIGHT ANGLE
12 717-3506SHAFT ASSY PTO DRI
13 MTD Accessories SPR:EXTN:.50 DIA X 3.97 LG732-0429ASPR:EXTN:.50 DIA X 3.97 LG
14 738-0322SCR:SHLD:.625 DIA x .217
15 MTD Accessories V-BELT754-0441V-BELT
16 754-3075V-Belt
17 MTD Accessories PUL:IDLR:FLAT 3.5 OD756-0627PUL:IDLR:FLAT 3.5 OD
18 756-0632V-BELT PULLEA
