Kawasaki Motoren FA210V - AS02 bis FH641V - DS24 FH601V-ES25 - Kawasaki FH601V 4-Stroke Engine CARBURETOR #1 Ricambi

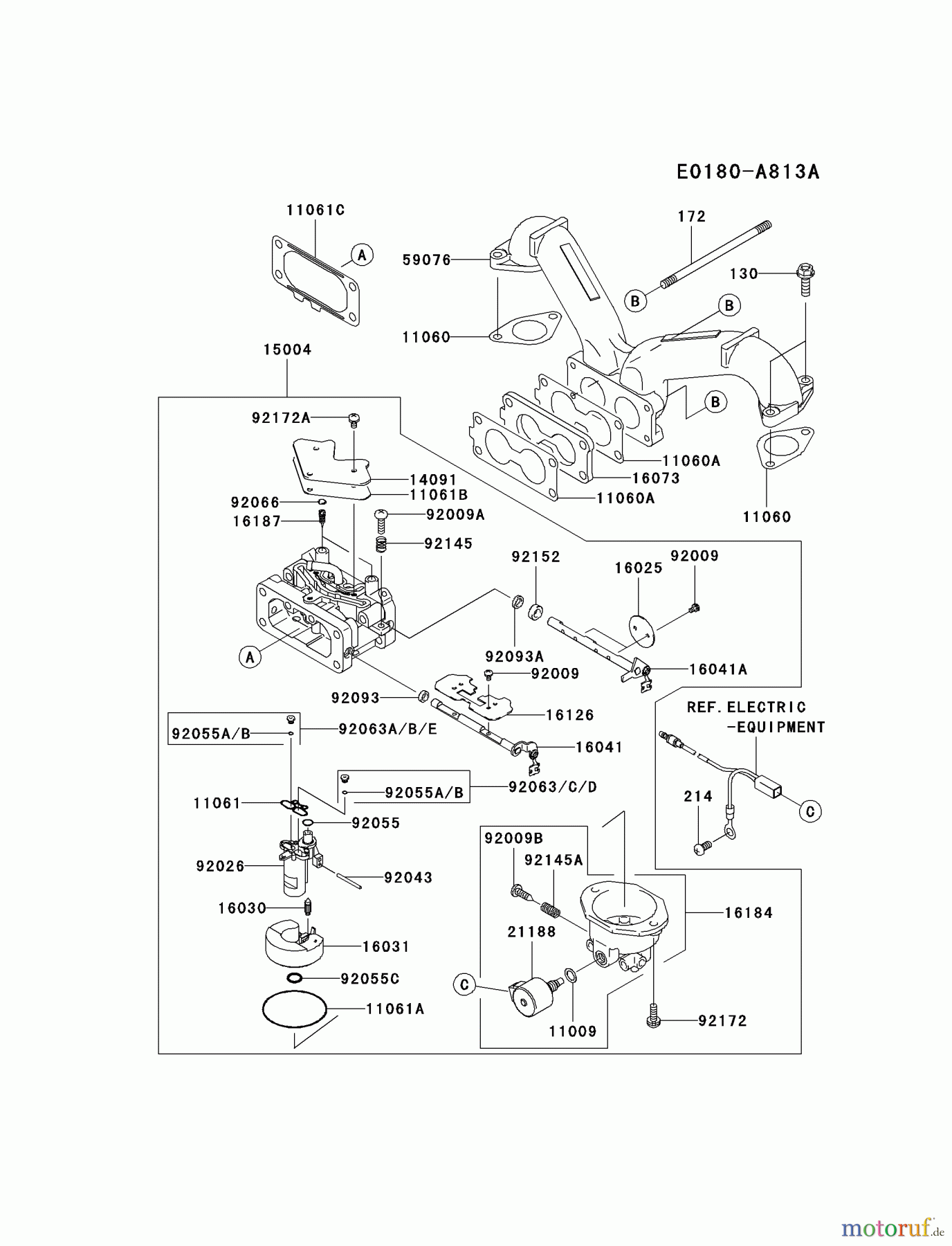

CARBURETOR #1 FH601V-ES25 - Kawasaki FH601V 4-Stroke Engine

Kawasaki Motoren Motoren Vertikal FA210V - AS02 bis FH641V - DS24 FH601V-ES25 - Kawasaki FH601V 4-Stroke Engine CARBURETOR #1
PosizioneArticolo numeroDescrizione
11009 KA110092056GASKET
11060 KA110607011DICHTUNG B2
11060A KA110607024GASKET
11061 Kawasaki Motoren GASKETKA110617037GASKET
11061A KA110617038GASKET
11061B KA110617039GASKET
11061C Kawasaki Motoren GASKETKA110617043GASKET
14091 KA140917031COVER
15004 KA150047027CARBURETOR-ASSY
16025 KA160257003VALVE-THROTTLE
16030 KA160307004VALVE-FLOAT
16031 KA160317003FLOAT
16041 KA160417021SHAFT-CARBURETOR
16041A KA160417022SHAFT-CARBURETOR
16073 KA160737005INSULATOR
16126 KA161267015VALVE
16184 KA161847022CHAMBER-ASSY-FLOAT
16187 KA161877002NEEDLE-JET
21188 KA211887003SOLENOID
59076 KA590767011MANIFOLD-INTAKE
92009 KA920097003SCREW
92009A KA920097004SCREW
92009B KA920097006SCREW,DRAIN
92026 KA920267011SPACER
92043 KA920437014PIN
92055 Kawasaki Motoren RING-OKA920557024RING-O
92055A KA920557013RING-O
92055B KA920557013RING-O
92055C Kawasaki Motoren RING-OKA920557016RING-O
92063 KA920637069JET-MAIN,#108
92063A KA920637075JET-MAIN,#101
92063B KA920637076JET-MAIN,#098
92063C KA920637077JET-MAIN,#105
92063D KA920637078JET-MAIN,#102
92063E KA920637082JET-MAIN,#104
92066 KA920667009PLUG,EXPANSION
92093 KA920937001SEAL,D=5.9
92093A KA920937002SEAL,D=6.9
92145 KA921457010SPRING
92145A KA921457011SPRING
