Spareparts

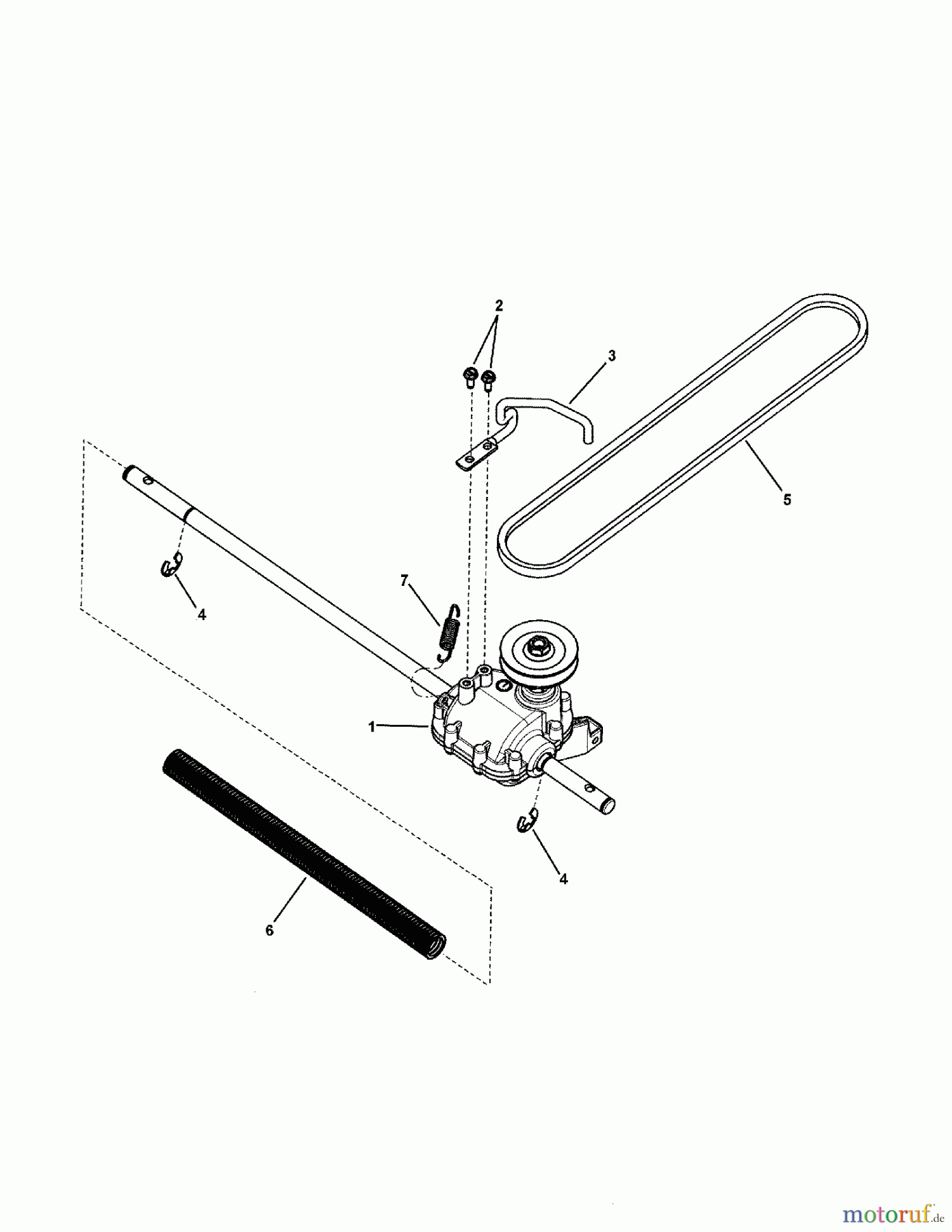

Transmission Group NSPXV2270HW (7800779) - Snapper 22" Walk-Behind Mower, 7.0 HP, 3N1 Self-Propelled High Wheel, California
Posizione | Articolo numero | Descrizione | |
1 | BS7103311YP | TRANSMISSION, VS, FWD | |
2 | BS7900055YP | HWST, PLASTITE 48-2 | |
3 | BS7103304YP | GUIDE, BELT, FWD | |
4 | BS703976 | RETAINER, RING, 1/2 | |
5 | BS7103362YP | BELT, TRAC DR FWD | |
6 | BS043649MA | ACHSSCHUTZ | |
7 | BS7104930YP | SPRING, REACT DRIVE |
