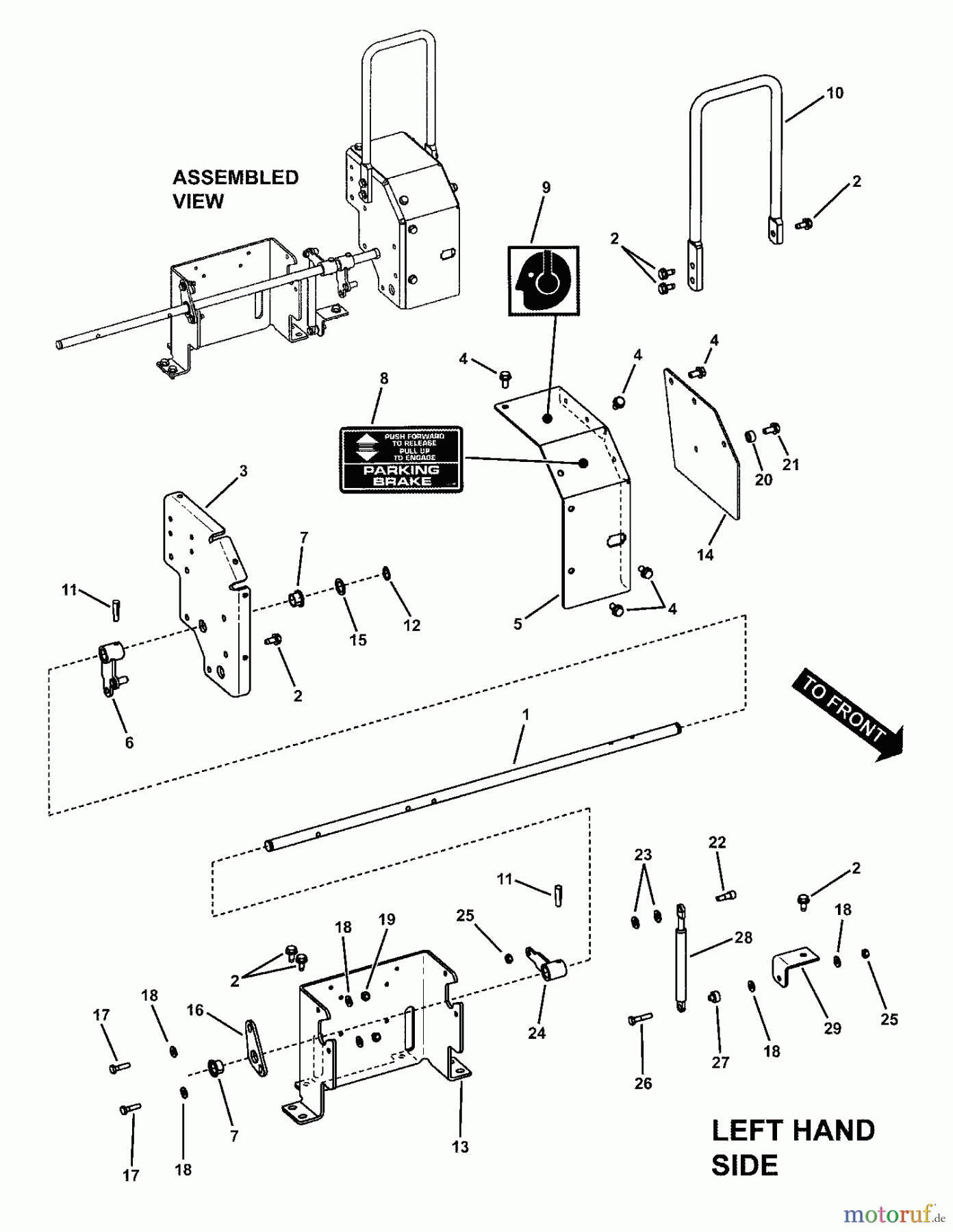

JOYSTICK CONTROL ASSEMBLY (L. H. Side) NZMJ23523KH (7800024) - Snapper 52" Zero-Turn Mower, 23 HP, Kohler, Mid Mount, Z-Rider Commercial Lawn & Turf Series 3

Snapper Nullwendekreismäher, Zero-Turn NZMJ23523KH (7800024) - Snapper 52
PosizioneArticolo numeroDescrizione
1 BS7075265YPSHAFT, PIVOT, YELLOW
2 BS703949SCHRAUBE, 5/16-18.625
3 BS7075267YP
4 BS7091867YPSCREW, 5/16-18 X 1/2
5 BS7075268YP
6 BS7053998YPWELD, BELLCRANK, YELL
7 BS7072934SM
8 BS7075040YP(C) DECAL, PARK BRAKE
9 BS7027733YP(S) DECAL, EAR PROTEC
10 BS7075654YPHANDLE
11 BS7092091SM
12 BS7010739SMRETAINING RING, EXT,
13 BS7075264YP
14 BS7043214YPCOVER, LH
15 BS7091628SMFW, .64X.99X.05 YZ
16 BS7075761YPBRKT, BEARING SUPPORT
17 BS7027230SM(C) HHCS, 1/4C X1 GR5
18 BS7091294
19 Snapper MUTTER, 1/4-20, NYLOCKBS703232MUTTER, 1/4-20, NYLOCK
20 BS7028620SMSPACER, .625 OD X .34
21 BS703228SCHRAUBE, 5/16-18 X .75
22 BS7092010YP(C) SCREW, SHOULDER,
23 BS703350U-SCHEIBE, 5/16
24 BS7059171YPWELD, BELLCRANK, DAMP
25 BS703954
26 BS7091814SM
27 BS7075026YPSPACER, TWIN STICK, Y
28 BS7075746YPDAMPENER, HYDRAULIC
29 BS7074672YP(C) BRKT, DAMPENER FR
