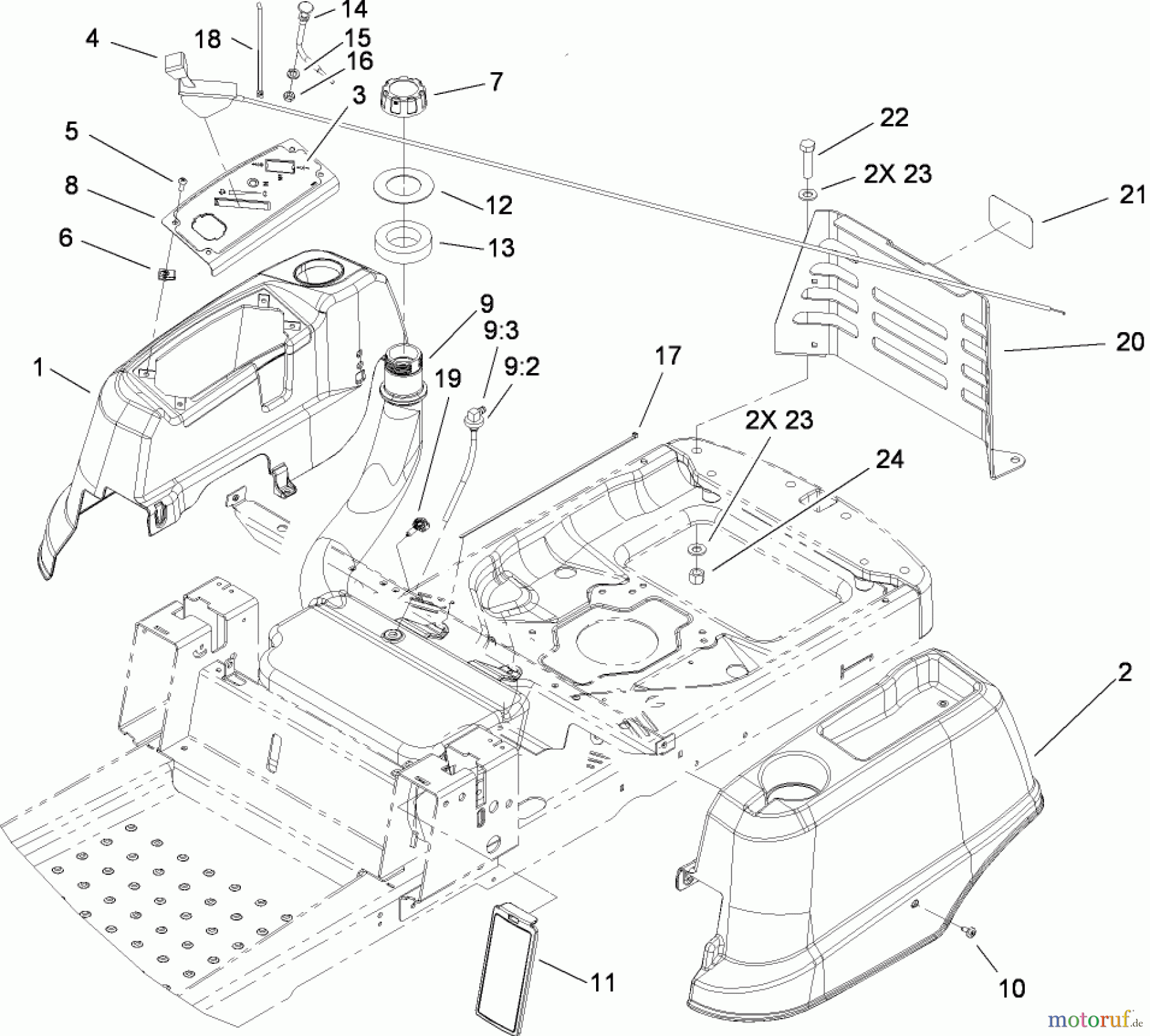

STYLING AND FUEL SYSTEM ASSEMBLY 74375 (Z5060) - Toro TimeCutter Z5060 Riding Mower, 2008 (280000001-280999999)

Toro Neu Mowers, Zero-Turn 74375 (Z5060) - Toro TimeCutter Z5060 Riding Mower, 2008 (280000001-280999999) STYLING AND FUEL SYSTEM ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR117-1219POD-RH
2 TR117-1220POD-LH
3 TR115-2501DECAL-PANEL, CONTROL
4 TR110-6653CABLE-THROTTLE
5 TR3258-166Schraube
6 TR107069Mutter (20)
7 TR93-7198GAS CAP ASM
8 TR110-1927-03PANEL-CONTROL
9 TR110-6890FUEL TANK ASM
9:2 TR46-6560BUSHING
9:3 TR95-3970FITTING-90 DEGREE
10 TR112-4004SCREW-SHOULDER
11 TR110-6786COVER-CONTROL
12 TR112-9760WASHER-RUBBER
13 TR55-9310SEAL-FOAM
14 TR110-6754CABLE-CHOKE
15 TR3253-21Federring
16 TR3220-3Mutter
17 TR100-9064Kabelband
18 TR614249Kabelband
19 TR32180-037CLIP-HARNESS
20 TR110-6685-03SUPPORT-COVER, REAR
21 TR99-2385DECAL
22 TR325-8Schraube
23 TR3256-26WASHER-FLAT
24 TR3296-23Mutter
