Engine accessories 13CA408N678 (2004)

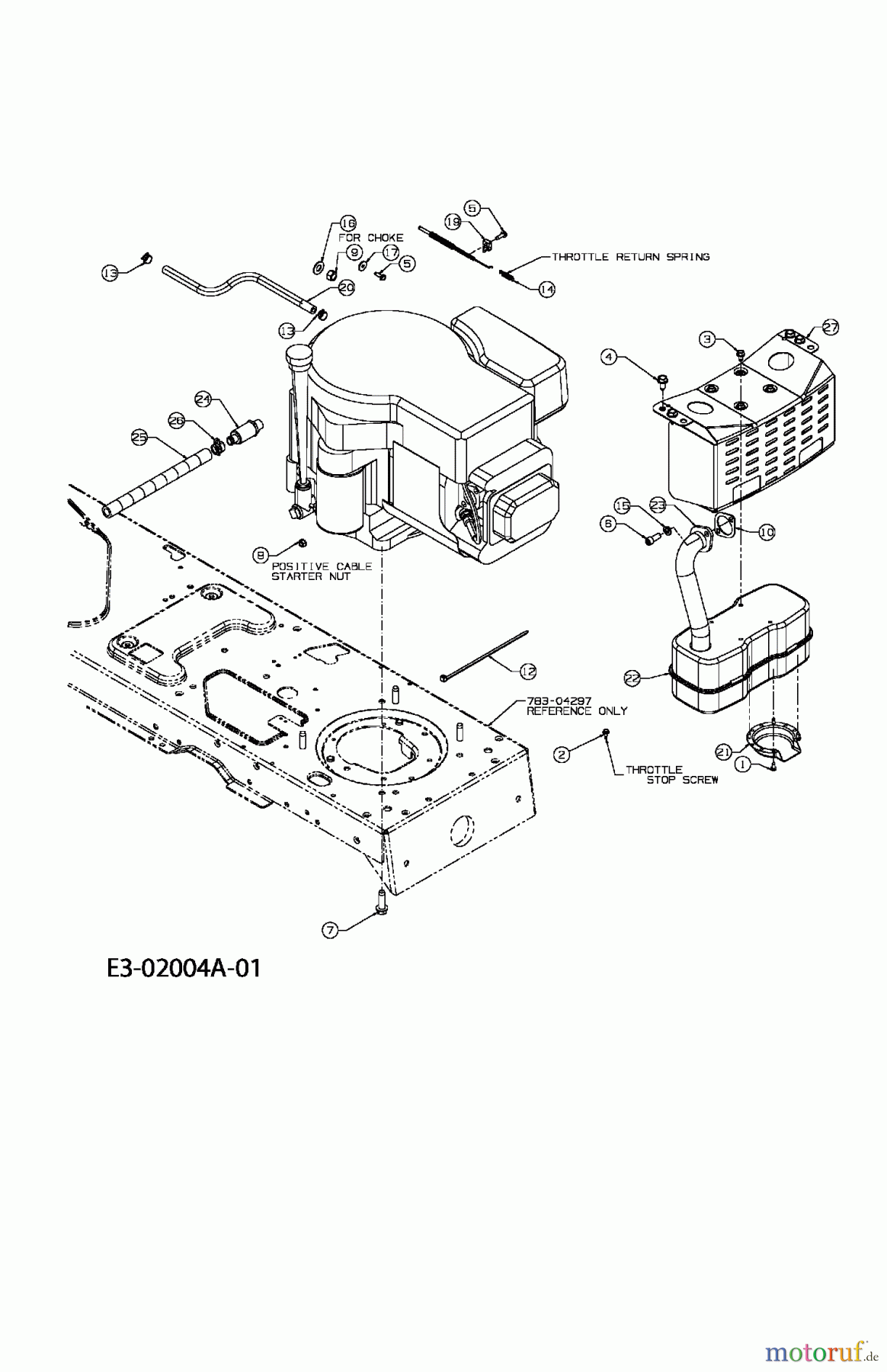

MTD Lawn tractors JN 150 A 13CA408N678 (2004) Engine accessories
PosizioneArticolo numeroDescrizione
1 MTD SCR:AB:#8-18:0.500:HXINDWH710-0227SCR:AB:#8-18:0.500:HXINDWH
2 710-0456SCR:BSD:#10-16:0.500:HXINDWSH
3 MTD SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
4 MTD SCR:AB:5/16-12:0.750:HXINDWSH710-0726SCR:AB:5/16-12:0.750:HXINDWSH
5 710-1237HEXSCREW:T:10-32:.625:HXINDWSH
6 MTD SCR:SOC HD:5/16-18:.750 GR8710-1314ASCR:SOC HD:5/16-18:.750 GR8
7 MTD SCR:TT:3/8-16:1.250:HXINDWSH:S710-1315SCR:TT:3/8-16:1.250:HXINDWSH:S
8 MTD NUT:SEMS:1/4-20712-0271NUT:SEMS:1/4-20
9 MTD NUT:JAM:3/8-16:GR5712-3017NUT:JAM:3/8-16:GR5
10 MTD EXHAUST GSKT 10 & 11 HP721-0208EXHAUST GSKT 10 & 11 HP
12 725-0157CBL:TIE: 3/16 X .05 X 7.4
13 MTD CLAMP HOSE: .490 DIA726-0205CLAMP HOSE: .490 DIA
14 732-0966SPRING-EXTENSION .275X1.25
15 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
16 MTD WASH:FLAT:.406 X .875 X.059736-0300WASH:FLAT:.406 X .875 X.059
17 736-0400WASH:FLAT:.194 x .62 x .063
19 751B213146CLAMP:CASNG:B&S THROTTLE
20 751-0535FUEL LINE HOSE BLACK
21 MTD DEFLECTOR:MuFFLER751-0564ADEFLECTOR:MuFFLER
22 751-0617AMFLR:SINGLE INLET
23 751-0619APIPE:EXH:SINGLE B&S OHV
24 751-3140DRAIN:OIL
25 751-3141HOSE:EXTN:OIL DRAIN
26 751-3142CAP:DRAIN:OIL
27 783-0615BSHLD:HEAT:MFLR
