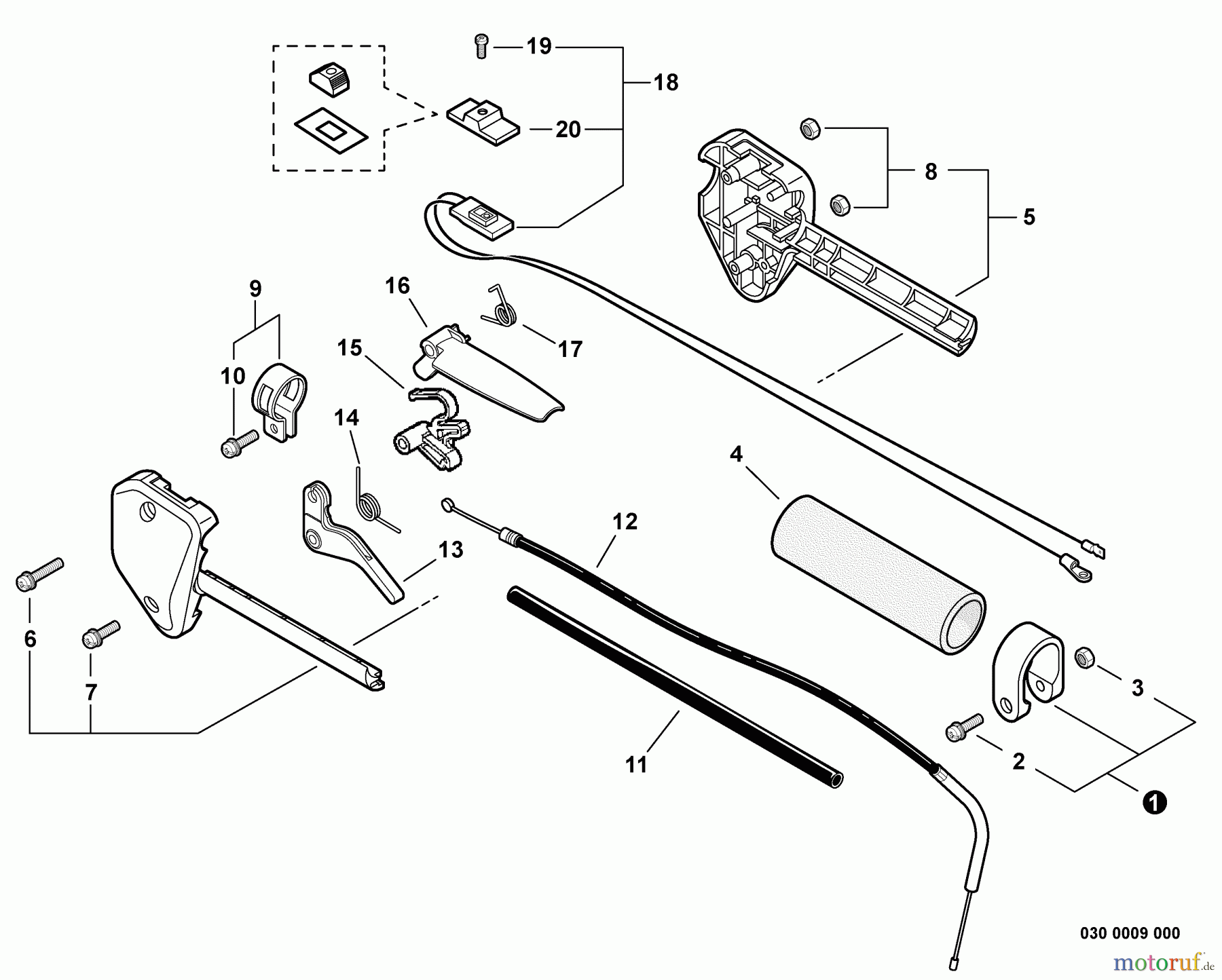

Echo SRM-210SB - String Trimmer, S/N: 08001001 - 08999999 Control Handle, Throttle Cable, Ignition Switch Ricambi

Control Handle, Throttle Cable, Ignition Switch SRM-210SB - Echo String Trimmer, S/N: 08001001 - 08999999

Echo Trimmer, Faden / Bürste SRM-210SB - Echo String Trimmer, S/N: 08001001 - 08999999 Control Handle, Throttle Cable, Ignition Switch
PosizioneArticolo numeroDescrizione
1 16-610272-52130Schelle HCA-2500, PAS-2400,
2 16-900242-05028Schraube
3 16-900500-00005Mutter PPT-300ES/T-226 EDR-
4 16-351213-52130Handgriffgummi HCA-2400 HCA-
5 16-178003-52130Plastikgehäuse, Gasgriff o.
6 16-900242-05035Schraube SRM 4000 L/ 5000 L
7 Echo Schraube CS-3500, HCA-2500,16-900242-05025Schraube CS-3500, HCA-2500,
8 16-900500-00005Mutter PPT-300ES/T-226 EDR-
9 16-301200-29431Aufhänger
10 16-900242-05014Schraube(Eisen) CS-3500, SRM
11 16-178127-50330Tülle
12 16V430000730
13 16-178010-52130Gashebel SRM-5000 SRM-4000,
14 16-178043-42230Feder SRM-4000L/SRM-5000L
15 16-178012-52730Gasfeststeller PPF-2100, HCA-
16 16-178090-52632Gashebelsperre SRM-330ES/
17 16-178013-52630Feder
18 16-163401-55631Stop-Schalter PPT-2100,PPT-
19 16-91545-03010Schraube 3x10 EA-410/PPT-300ES
20 16-A444-000020Knopf, Stopschalter SRM-4000U/
