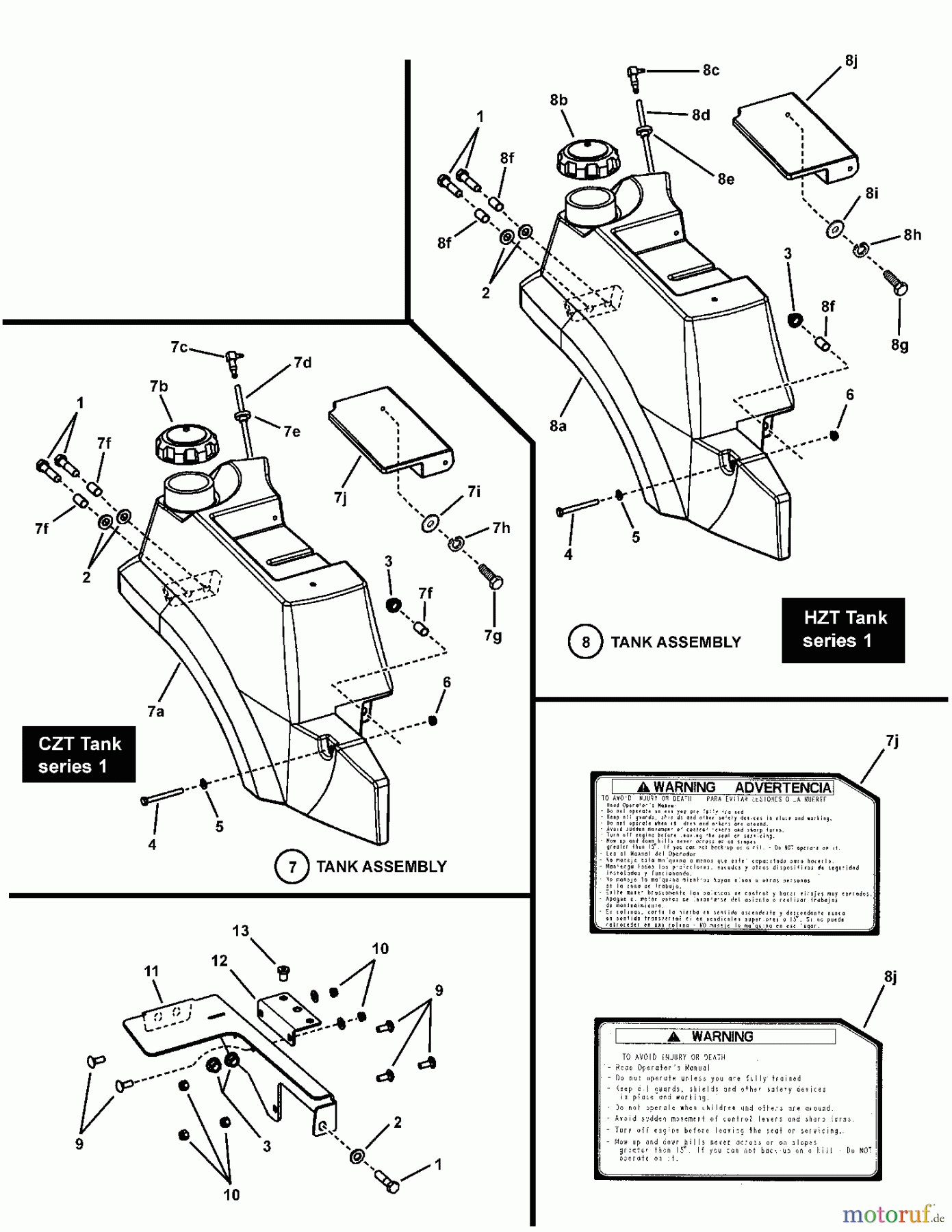

FUEL TANK ASSEMBLY, RH (Series 1) CZT19480KWV (85672) - Snapper 48" Zero-Turn Mower, 19 HP, Twin Stick, Mid Mount, Z-Rider Commercial Lawn & Turf Series 0

Snapper Nullwendekreismäher, Zero-Turn CZT19480KWV (85672) - Snapper 48
PosizioneArticolo numeroDescrizione
1 BS7092089YPHHCS, 7/16C X2 GR5 YZ
2 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
3 BS7091917YPNUT, NYLOCK, 7/16
4 BS7091046YPHHCS, 5/16C X2-1/2 GR
5 BS703350U-SCHEIBE, 5/16
6 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
7 BS7100214YPTANK ASSY, CZT, RH
7a BS7042925
7b BS5101651SMTANKDECKEL BELUFTET
7c BS7074835YPFITTING, DAPCO
7d BS7046326YPFUEL PICK-UP ASSY.
7e BS1654930SMVENTILDECKEL
7f BSEingangswelle UE 600
7g BS7090825YPHHCS, 1/4C X1-1/4 GR5
7h BS7027223SM(C) SLW, .263X.375X.0
7i BS7091294
7j BS7100211
8 BS7100216YPTANK ASSY, HZT, RH
8a BS7078036
8b BS7075135
8c BS7074835
8d BS7046804
8e BS7012337
8f BSEingangswelle UE 600
8g BS7090825
8h BS7027223
8i BS7091294
8j BS7100212
9 BS703814BOLT, RD HD, 3/8-16X1
10 BS703117MUTTER
11 BS7053518YP
12 BS7074687YP(C) BRKT, VALVE MOUNT
13 BS7091909YP(C) WELL-NUT, 1/4CX53
