Zerto-Turn Mäher LH MOTION CONTROL ASSEMBLY NO. 109-3912 Ricambi

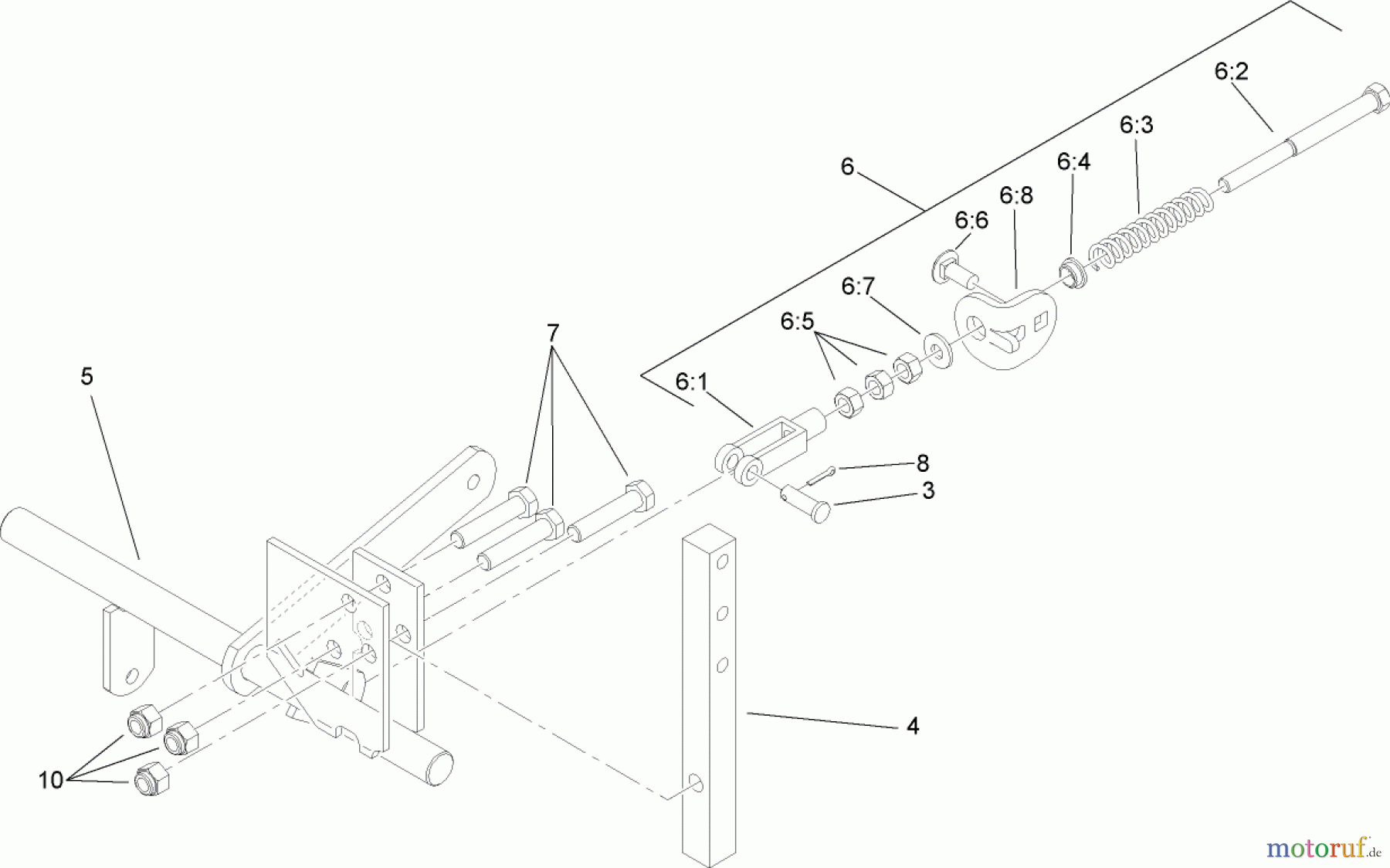

LH MOTION CONTROL ASSEMBLY NO. 109-3912 74449 (Z400) - Toro Z Master Mower, 52" 7-Gauge Side Discharge Deck (SN: 280000001 - 280999999) (2008)
| Posizione | Articolo numero | Descrizione | |
| 3 | TR1-808280 | PIN-CLEVIS | |
| 4 | TR103-0407 | ARM | |
| 5 | TR103-4774 | CONTROL-MOTION, LH | |
| 6 | TR109-3903 | NEUTRAL RETURN ASM | |
| 6:1 | TR1-303105 | YOKE-ADJUSTABLE | |
| 6:2 | TR1-603737 | BOLT-RETURN, NEUTRAL | |
| 6:3 | TR1-603807 | Druckfeder | |
| 6:4 | TR109-3769 | BUSHING-NYLON, FLANGED | |
| 6:5 | TR3219-2 | Mutter | |
| 6:6 | TR3230-23 | Schloss Schraube | |
| 6:7 | TR3256-2 | Scheibe | |
| 6:8 | TR109-3908 | TAB-ADJUSTMENT | |
| 7 | TR323-9 | Schraube | |
| 8 | TR3272-5 | Splint | |
| 10 | TR32-9639 | ||
