Stiga Baujahr 2017 ESTATE 3398 H 2T2610681/16 - Season 2017 Brake And Gearbox Controls Ricambi

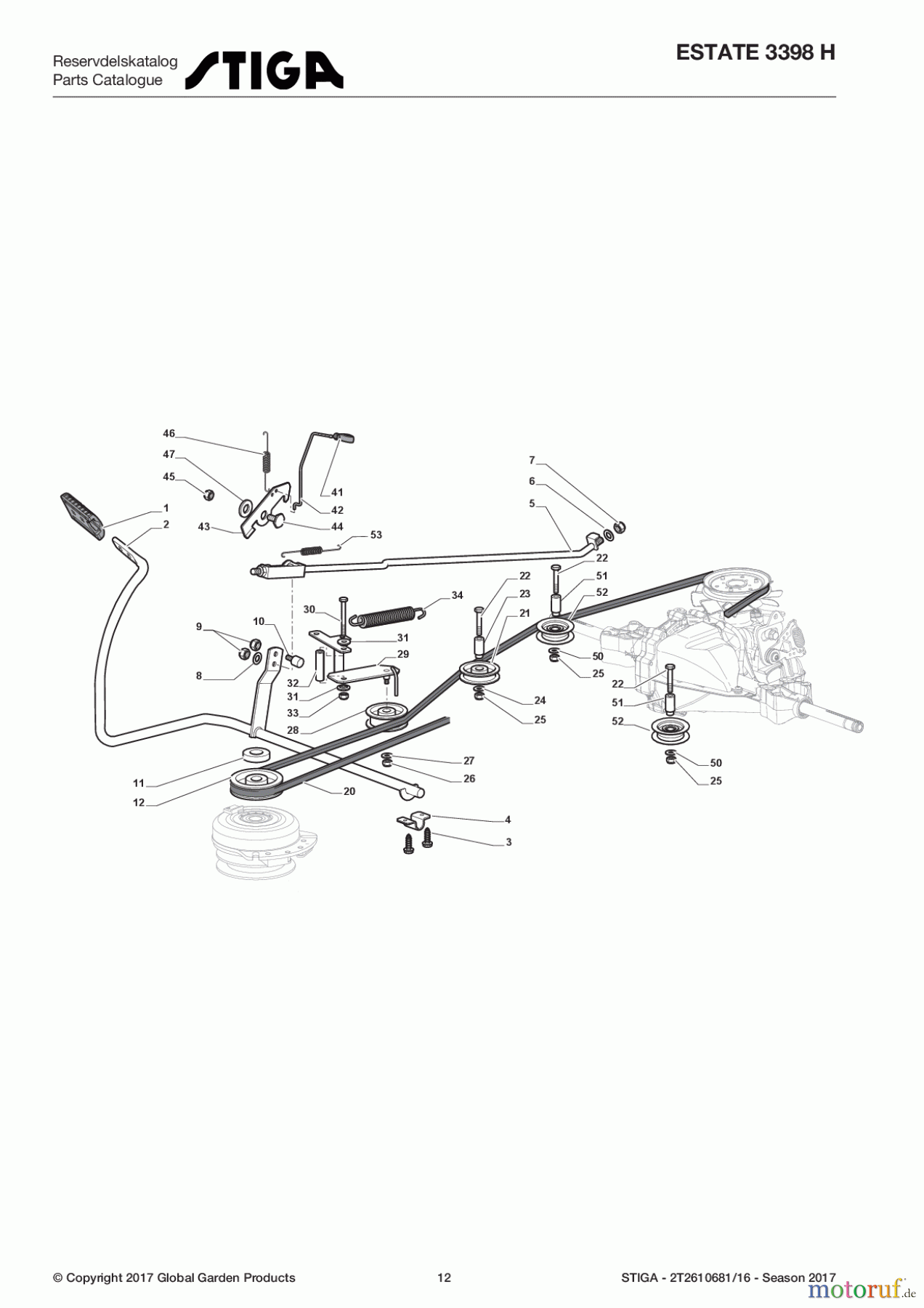

Brake And Gearbox Controls ESTATE 3398 H 2T2610681/16 - Season 2017
| Posizione | Articolo numero | Descrizione | |
| 1 | 325110409/0 | Clamp Cover | |
| 2 | 382000641/0 | Pedal | |
| 3 | 112735599/0 | Screw | |
| 4 | 325547231/0 | Plate | |
| 5 | 382000636/0 | Rod | |
| 6 | 112521360/0 | Washer | |
| 7 | 112156602/0 | Nut | |
| 8 | 325670011/0 | Antifriction Washer | |
| 9 |  | 112155000/0 | Nut |
| 10 | 125510116/0 | Pin | |
| 11 | 125160021/0 | Spacer | |
| 12 | 125601577/0 | Pulley | |
| 20 | 135062020/1 | Trapezoidal Belt | |
| 21 | 325601599/0 | Pulley | |
| 22 | 112691400/0 | Screw | |
| 23 | 125160083/0 | Spacer | |
| 24 | 112523060/0 | Washer | |
| 25 | | 112155000/0 | Nut |
| 26 | | 112155000/0 | Nut |
| 27 | 112523060/0 | Washer | |
| 28 | 125601554/0 | Pulley | |
| 29 | 382318245/0 | Lever | |
| 30 | 112691600/0 | Screw | |
| 31 | 125038002/1 | Bushing | |
| 32 | 125160027/0 | Spacer | |
| 33 | | 112155000/0 | Nut |
| 34 | 125430262/0 | Spring | |
| 41 | 125394509/1 | Knob | |
| 42 | 125033113/0 | Rod | |
| 43 | 325253011/1 | Hook | |
| 44 | 122524970/3 | Pin | |
| 45 | | 112155000/0 | Nut |
| 46 | 125430213/0 | Spring | |
| 47 | 112523060/0 | Washer | |
| 50 | 112521350/0 | Washer | |
| 51 | 125160068/0 | Spacer | |
| 52 | 125601592/0 | Pulley | |
| 53 | 125430269/1 | Spring | |
