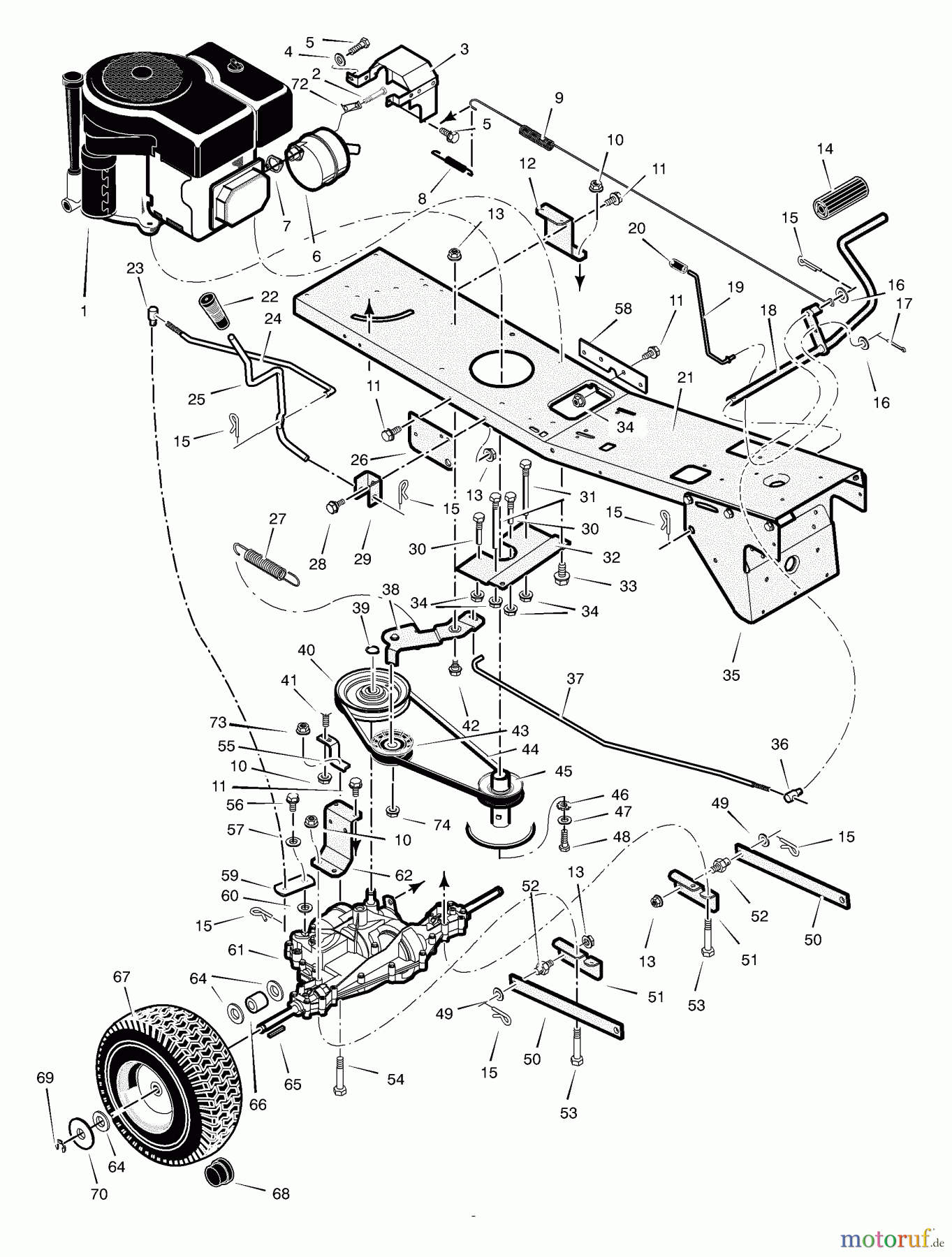

Motion Drive 309002x24A - B&S/Murray 30" Mid-Engine Rider (2004) (Meijer)

Murray Reitermäher 309002x24A - B&S/Murray 30
PosizioneArticolo numeroDescrizione
1 BSEingangswelle UE 600
2 BS01X134MABOLT-HEX.31-18X4.12 O
3 BS1401207
4 BS018X32MAWASHER.25.48X.07 SPLI
5 BS0025X2MASCREW-TRI.25-20X .50
6 BS1401251MASCHALLDAEMPFER & ABGASROHR
7 BS692236AUSPUFFDICHTUNG
8 BS165X75MASPRING,EXTENSION
9 BS165X148MAFEDERHEBEL
10 Murray NUT,CENTERLOCK Z .3BS015X88MANUT,CENTERLOCK Z .3
11 BS26X249MASCREW-.312-18X.75
12 BS1401268E701MABRACKET, LH - TRANSAX
13 BS015X84MAMUTTER, CENTERLOCK .38-
14 BS021544MACLUTCH & BRAKE PEDAL
15 BS030X20MAPIN-COTTER.09D-.750L
16 BS017X53MAWASHER.41.82 16G FLT
17 BS030X20MAPIN-COTTER.09D-.750L
18 BS1401127E701MAWS ASM. PEDAL C/B
19 BS1401112MAGRIFF, FESTSTELLBREMSE
20 BS091079MAGRIP-BLACK .207 ID X
21 BS1401256E701MAGRUNDRAHMEN
22 BS092697MAGRIP - .50 ID - BLACK
23 BS1401148ZMAEINSTELLMUTTER
24 BS1401122MALINK, DRIVE
25 BS1401111MASCHALTHEBEL
26 BS1401032E701MABRACKET, LIFT PIVOT
27 BS165X147MASPRING, EXT
28 BS009X39MAANSATZBOLZEN .38-16 X .
29 BS1401043E701MAHALTER ABDECKUNG
30 BS1401104MAFUHRUNG ANTRIEBSRIEMEN KURZ
31 BS1401105MAGUIDE, BELT LONG
32 BS1401057E701MABLECH, RIEMENFUHRUNG
33 BS0025X7MAMOTORBOLZEN 3/8 X 1.25
34 BS015X79MANUT.31-18 FLANGELOCK
35 BS1401059E701MAHALTEWINKELAUFLAGE
36 BS094815ZMANUT-ADJUSTING
37 BS1401078MAKUPPLUNGSSTANGE
38 BS1401128E701MAKUPPLUNG,ARM,ASSY
39 BS0011X7MASPRENGRING/SEEGERRING.625D.035
40 BS1401077MARIEMENSCHEIBE, 5.44 DIA. FLA
41 BS002X53MABOLT,CRG .31-18 X 0.
42 BS009X39MAANSATZBOLZEN .38-16 X .
43 BS1401252MAUMLENKROLLE - B/D
44 BS37X110MABELT, 4L MOTION DRIVE
45 BS1401066MAPULLEY,STACK SPLIT ST
46 BS019X35MAWASHER.43-0.74 X.04 S
47 BS17X170MAWASHER.46.97.25 FLAT
48 BS01X140MASECHSKANTBOLZEN.43-20X1.50 Z
49 BS17X102MAUNTERLEGSCHEIBE-MAHER
50 BS1401031E701MAARM HINTEN; RUCKARM
51 BS1401039E701MAHALTERUNG/KONSOLE, HINTEN HANG
52 BS094067MAANSATZGEWINDESTIFT
53 BS01X155MABOLT-HEX.31-18X2.50 P
54 BS01X120MABOLT-HEX.31-18X2.00 Z
55 BS1401051E701MAKONSOLE,DREHMOMENT REACTO
56 BS01X145MABOLT,HEX.25-28X0.75 Z
57 BS017X38MAUNTERLEGSCHEIBE.26.75 16G FLT
58 BS1401260E701MAVERSTARKUNGSBLECH
59 BS1401093ZMABUGEL
60 BS17X148MAUNTERLEGSCHEIBE.38 SQ 1. 16G F
61 BSEingangswelle UE 600
62 BS1401042E701MAHALTER, STUFENLOSES GETRIEBE,
64 BS17X160MAWASHER.76-1.2 16G FL
65 BS056534MAVIERKANTSCHLUSSEL
66 BS1401103MASPACER, TRANSAXLE
67 BS1401120MAHINTERRAD 15"
68 Murray HUB CAPBS094618MAHUB CAP
69 BS0011X3MARING,E .750D .050T
70 BS17X195MAUNTERLEGSCHEIBE
72 BS092378MASCHRAUBENVERSCHLUSS 223016
73 BS015X43MANUT .31-18 ST OVERLOC
74 BS015X98MAMUTTER.38-16 FLANSCHARRETIERUN
