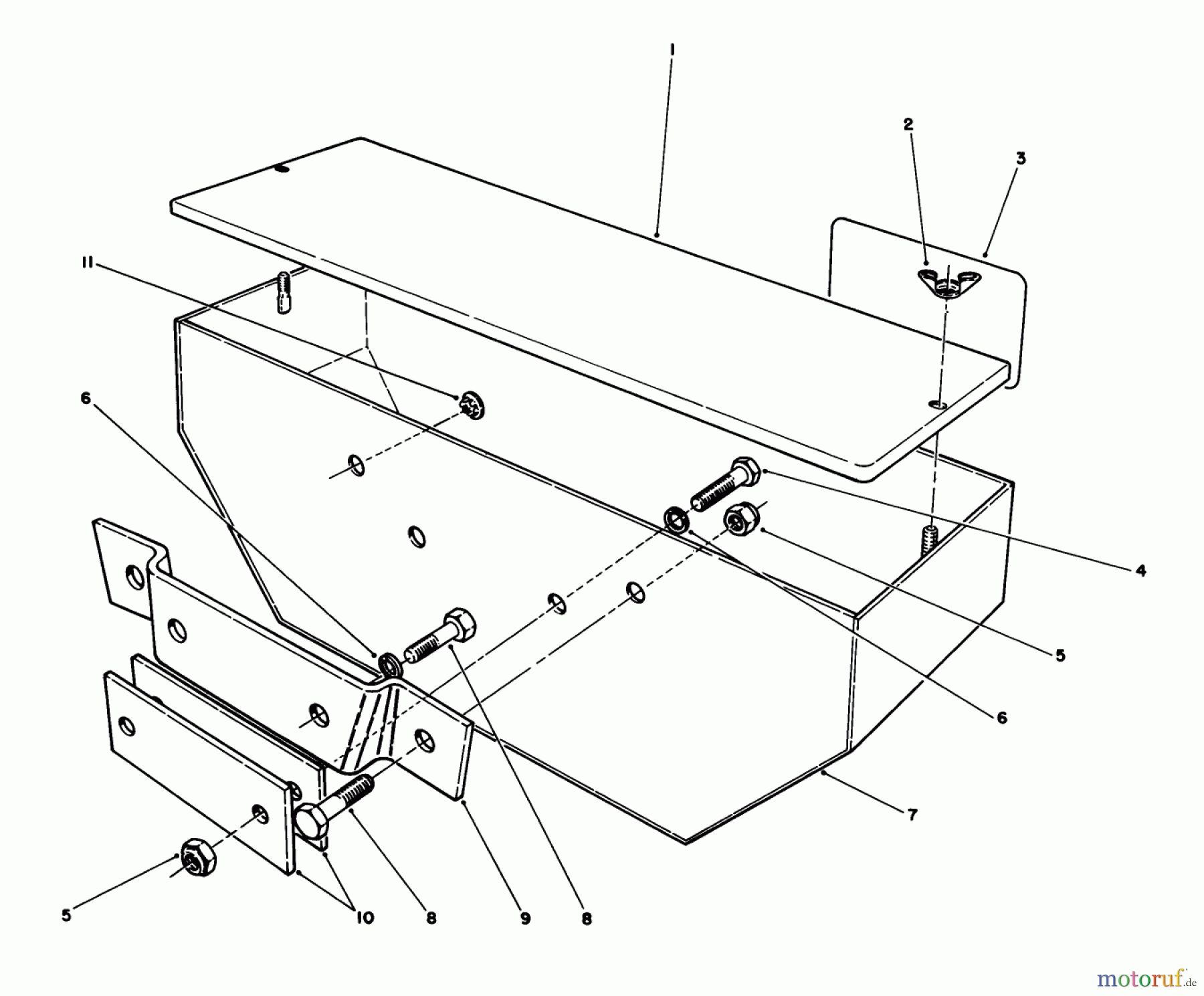

WEIGHT BOX KIT MODEL NO. 62-6590 (OPTIONAL) 30544 (120) - Toro 44" Side Discharge Mower, Groundsmaster 120, 1988 (800001-899999)
Posizione | Articolo numero | Descrizione | |
1 | TR61-4130 | WT BOX COVER *R | |
2 | TR32103-2 | NUT-WING | |
3 | TR67-1300 | Namensschild | |
4 | TR325-7 | Schraube | |
5 | TR3296-25 | Stopmutter | |
6 | TR3253-7 | Federring | |
7 | TR41-4090 | DISCONTINUED | |
8 | TR325-5 | Schraube | |
9 | TR61-4140 | MOUNT BRKT *R | |
10 | TR62-6710 | DISCONTINUED | |
11 | TR2410-67 | PLUG |
