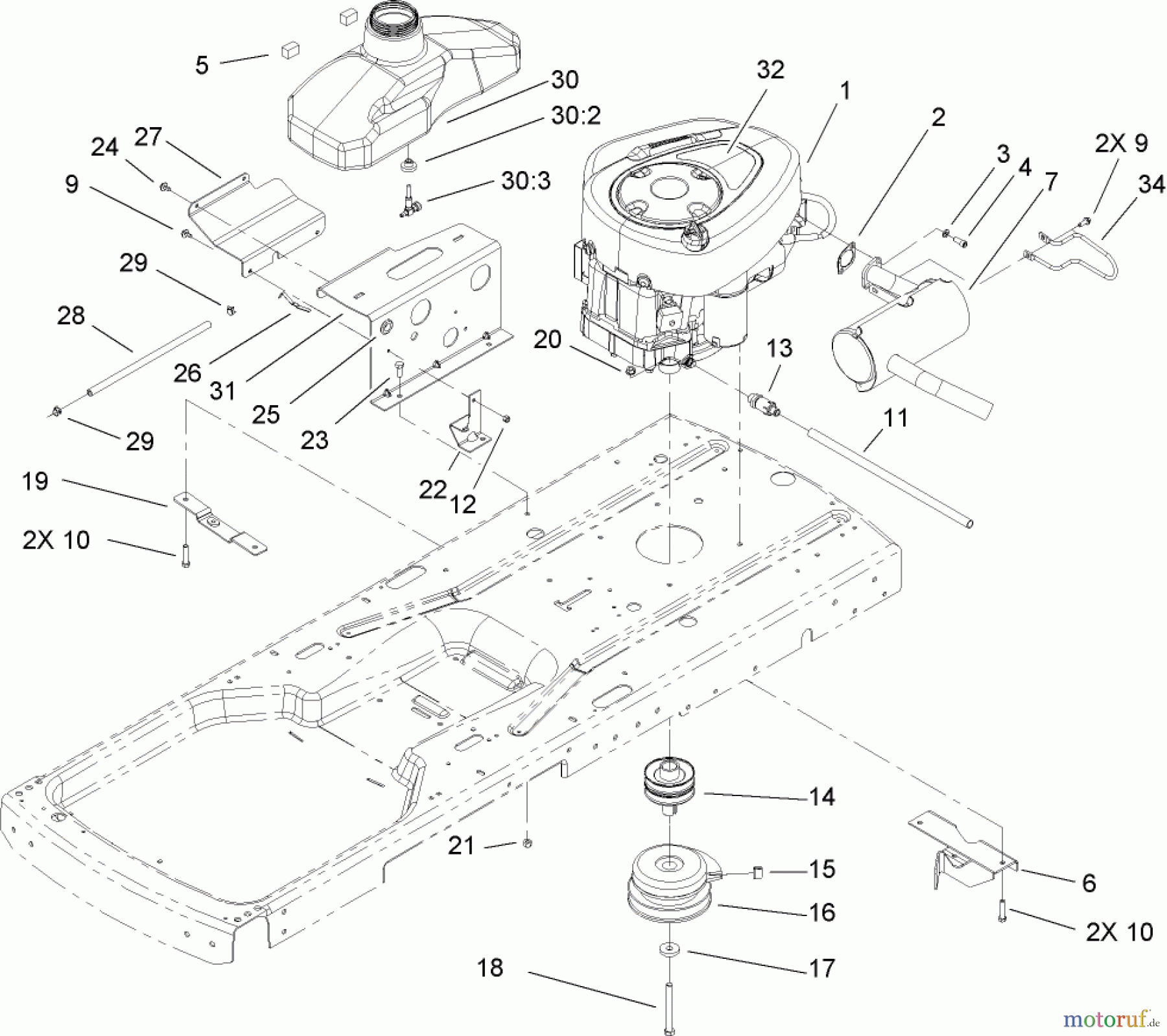

ENGINE ASSEMBLY 74353 (Z480) - Toro TimeCutter Z480 Riding Mower, 2006 (260000001-260999999)

Toro Neu Mowers, Zero-Turn 74353 (Z480) - Toro TimeCutter Z480 Riding Mower, 2006 (260000001-260999999) ENGINE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR
2 TR88-4410AUSPUFF-DICHTUNG
3 TR3253-4Federring
4 TR3274-10Schraube
5 TR104-2488DICHTUNGSPROFIL
6 TR107-4873BRACKET-PIVOT
7 TR106-7007MUFFLER
9 TR32144-44SCHRAUBE
10 TR322-7Schraube
11 TR106-7022TUBE-DRAIN, OIL
12 Toro MutterTR3296-42Mutter
13 TR92-6877Ventil
14 TR105-3472Riemenscheibe
15 TR98-5023Gummipuffer
16 TR108-9511CLUTCH-PTO, ELECTRIC
17 TR112843WASHER
18 TR3212-16SCREW-HH
19 TR106-2156PLATE-MOUNT, IDLER
20 TR32128-25NUT-HF
21 Toro MutterTR3296-29Mutter
22 TR107-2506-03MOUNT-SPRING
23 TR322-4Schraube
24 TR46-8560SCREW-HHFTF
25 TR237-124Gummituelle
26 TR609830Steckfeder
27 TR108-2315-03PLATE-SUPPORT
28 TR109-0297HOSE-FUEL
29 TR2412-98CLAMP-HOSE
30 TR105-3464Benzintank
30:2 TR46-6560BUSHING
30:3 TR110-6565VALVE-FUEL
31 TR108-2314-03PLATE-TANK
32 TR107-4906DECAL-ENGINE
34 TR108-8510GUARD-MUFFLER
