74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290004013-29

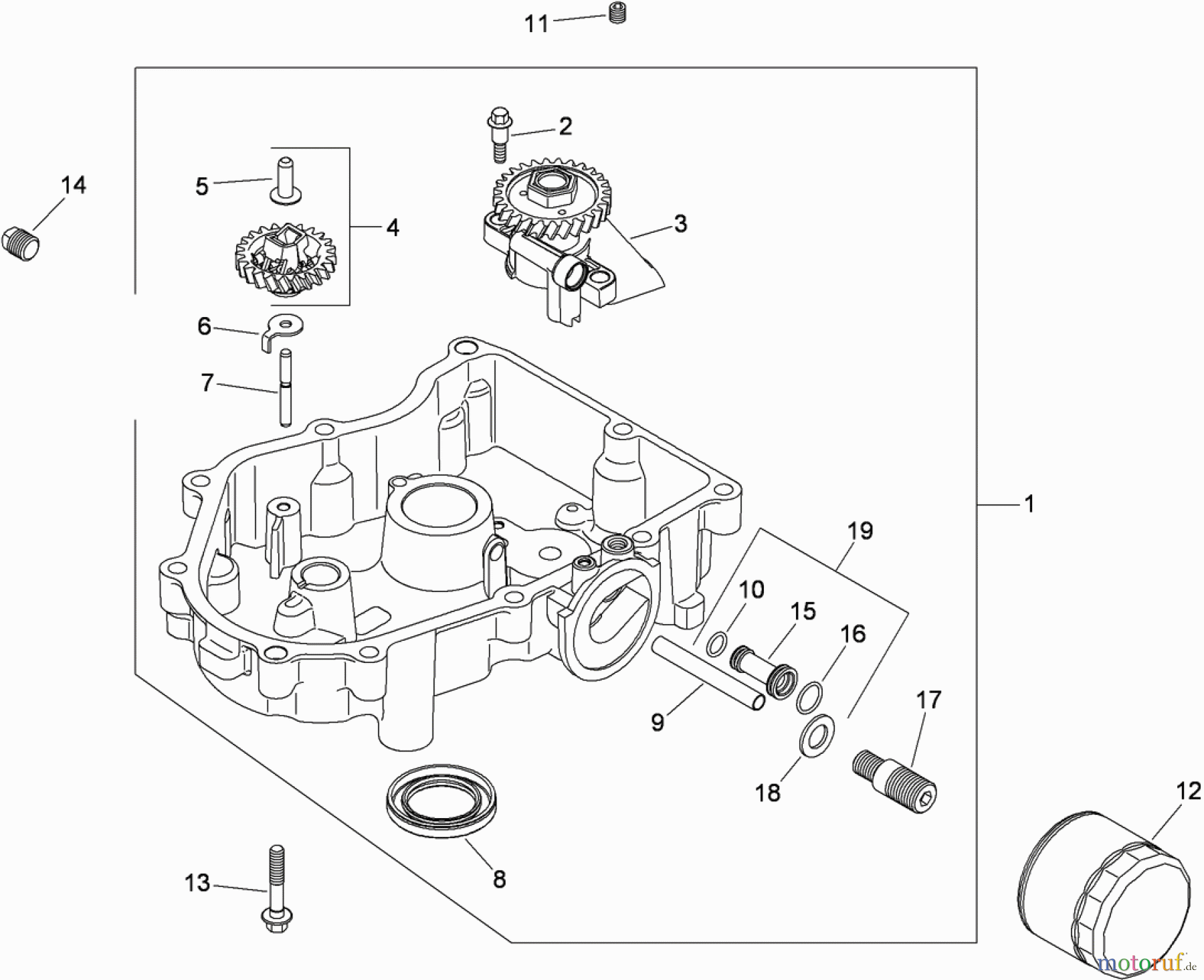

OIL PAN AND LUBRICATION ASSEMBLY KOHLER SV720-0039
OIL PAN AND LUBRICATION ASSEMBLY KOHLER SV720-0039 74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290004013-290999999)
Posizione
Articolo numero
Descrizione
1
KH3219914-S
OIL PAN ASSEMBLY
2
KH3208601-S
SCREW, SHD THD FRM M6X.0X6.5
3
KH3239310-S
PUMP ASSEMBLY, OIL
4
KH2404312-S
KIT, GOVERNOR GEAR W/PIN
5
KH1238001-S
PIN, GOVERNOR REGULATING
6
KH2444802-S
TAB, LOCKING
7
KH1214402-S
SHAFT, GOVERNOR GEAR
8
KH2503206-S
SEAL, OIL
9
KH3212301-S
TUBE, OIL FEED - FILTER TO PAN
10
KH2415301-S
O-RING, OIL PICK-UP
11
KH2513960-S
PLUG, CTSK PIPE 1/8"
12
KH1205001-S
OIL FILTER
13
KH2408617-S
SCREW, FLG M8X1.25X45
14
KH2513957-S
PLUG, SQ HD PIPE 3/8"
15
KH3212306-S
TUBE, OIL FEED
16
KH3215305-S
O-RING
17
KH3213605-S
NIPPLE, OIL FILTER
18
KH3246802-S
WASHER, FLAT
19
KH3212309-S
OIL FEED TUBE ASSEMBLY
