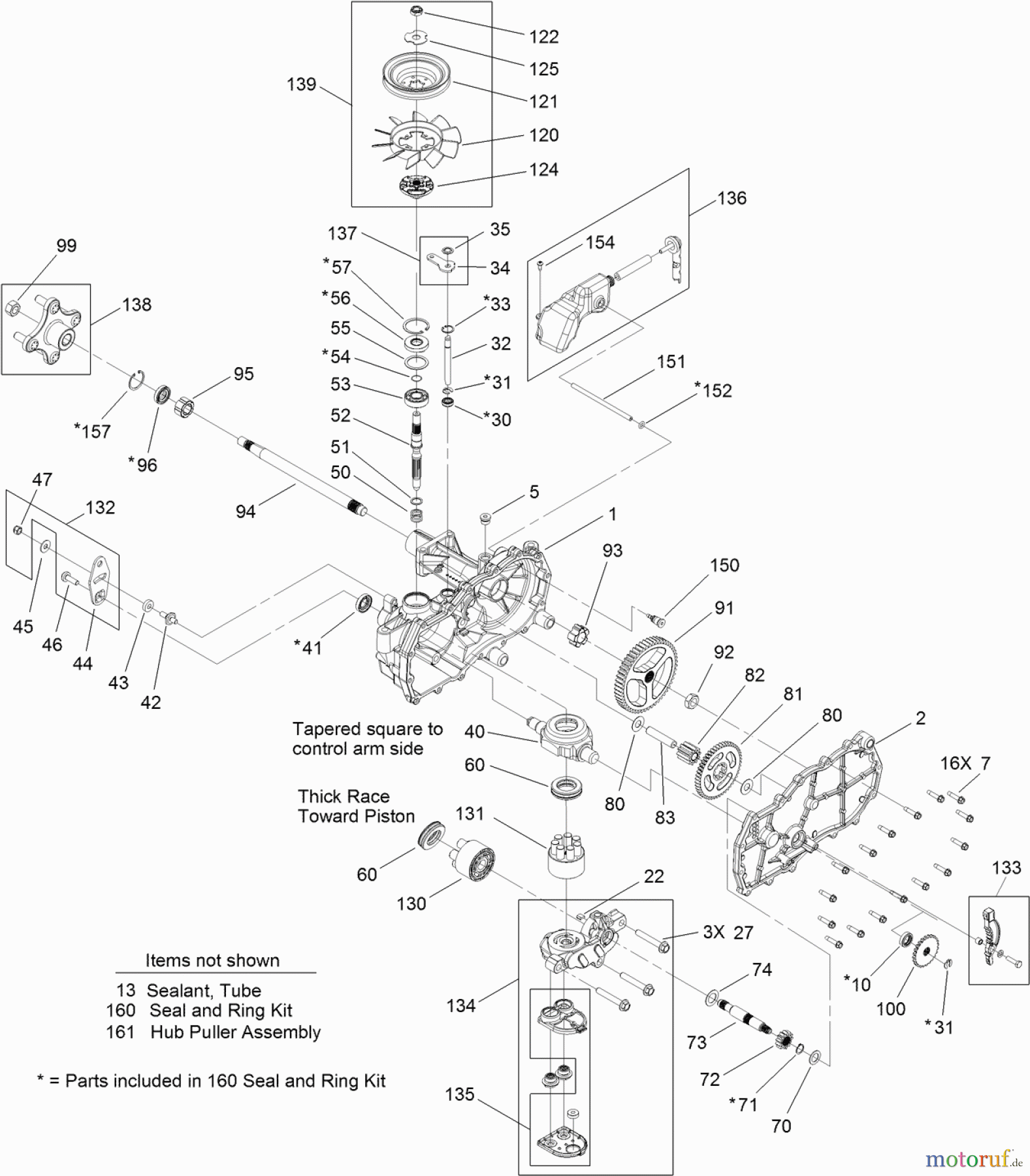

RIGHT HAND HYDRO TRANSAXLE ASSEMBLY NO. 119-3331 74386 (ZS 4200) - Toro TimeCutter ZS 4200 Riding Mower, 2011 (311000001-311999999)

Toro Neu Mowers, Zero-Turn 74386 (ZS 4200) - Toro TimeCutter ZS 4200 Riding Mower, 2011 (311000001-311999999) RIGHT HAND HYDRO TRANSAXLE ASSEMBLY NO. 119-3331
PosizioneArticolo numeroDescrizione
1 TR120-5531MAIN HOUSING ASM
2 TR120-5533HOUSING SIDE KIT
5 TR104-2189PLUG-THREAD, STRAIGHT
7 TR117-5359SCREW-HHF
10 TR120-5535120-7103
13 TR104-2147Dichtungsmasse
22 TR114-1680PLATE-BYPASS
27 TR120-5536BOLT-HEX FLANGE
30 TR106-8676SEAL-LIP
31 TR106-8677Sicherungsring
32 TR106-8678ROD-BYPASS
33 TR106-8679RING-RETAINING, INT
34 TR107-2490Schaltarm
35 TR106-8681RING-RETAINING, EXT
40 TR104-5304SWASHPLATE-TRUNNION
41 TR104-5313SEAL-LIP
42 TR104-2116STEHBOLZEN
43 TR112-9853PUCK-FRICTION
44 TR106-8747ARM-CONTROL
45 TR114-8491WASHER
46 TR107-2488Schraube
47 TR105-1872NUT
50 TR120-5537SPRING-COMPRESSION
51 TR120-5538WASHER
52 TR104-5306Zahnwelle
53 TR104-5311Kugellager
54 TR104-5307RING-RETAINING
55 TR104-5308Distanzscheibe
56 TR104-5310SEAL-LIP
57 TR104-5309Seegerring
60 TR94-6922BEARING-THRUST
70 TR104-5339SCHEIBE
71 TR104-5340RING-RETAINING
72 TR104-5316ZAHNRAD
73 TR106-8683SHAFT-MOTOR
74 TR104-5360WASHER
80 TR119-5541
81 TR104-5317ZAHNRAD
82 TR104-5318GEAR-JACKSHAFT, 10T
83 TR104-5329PIN-JACKSHAFT
91 TR120-5539GEAR-BULL
92 TR104-2142NUT-HJ
93 TR115-8314
94 TR120-5540SHAFT-AXLE
95 TR120-5541BEARING-SLEEVE
96 TR120-5542120-7103
99 TR120-5543NUT-HEX LOCK
100 TR106-8694Scheibe
120 TR121-5729FAN PULLEY KIT
121 TR120-5545
122 TR105-1875NUT-LOCK
124 TR120-5546121-5729
125 TR107-9122WASHER-SLOTTED
130 TR103-2666CYLINDER BLOCK KIT
131 TR110-8561PUMP BLOCK ASM
132 TR117-5362ARM CONTROL KIT
133 TR106-8688Bremsarm
134 TR112-9862CENTER SECTION FILTER KIT
135 TR114-1634FILTER KIT
136 TR121-5735LH EXPANSION TANK KIT
137 TR107-2489BYPASS ARM KIT
138 TR121-5731HUB KIT
139 TR105-1928Luefterkit
150 TR104-5349FITTING
151 TR115-8302HOSE
152 TR104-5361O-Ring
154 TR120-7100BOLT-SELF TAPPING
157 TR120-7102121-5729
160 TR120-7103SEAL AND RING KIT
161 TR114-8467HUB-PULLER, 4 BOLT
