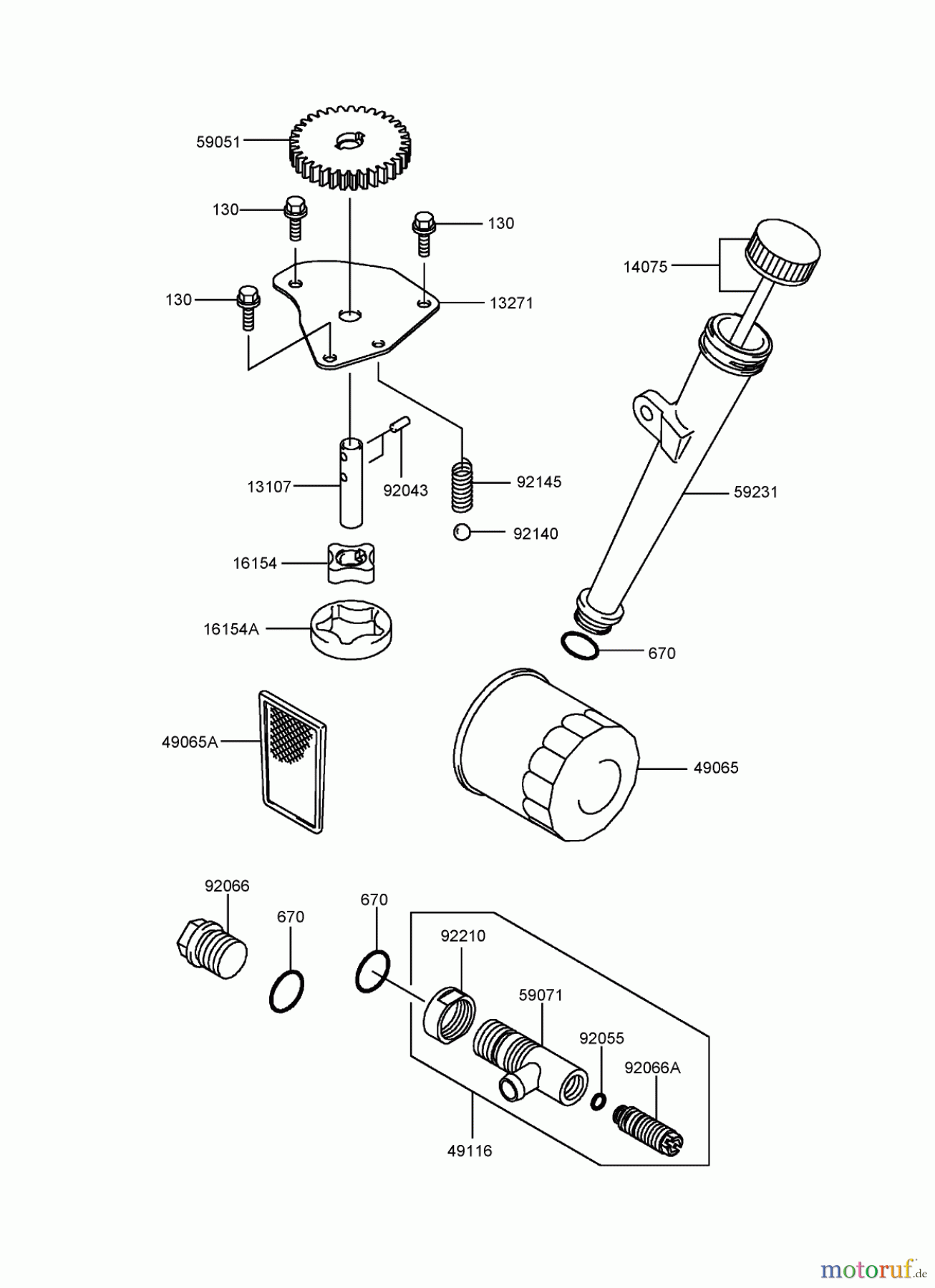

LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH580V-CS13-R 74806 (ZX525) - Toro TimeCutter ZX525 Riding Mower, 2006 (260000001-260999999)
| Posizione | Articolo numero | Descrizione | |
| 13107 | KA131070749 | SHAFT | |
| 13271 | KA132717017 | PLATE | |
| 14075 | KA140757009 | CAP-ASSY | |
| 16154 | KA161542053 | ROTOR-PUMP,IN | |
| 16154A | KA161542054 | ROTOR-PUMP,OUT | |
| 49065 | KA490657010 | FILTER-OIL | |
| 49065A | KA490657004 | FILTER-OIL | |
| 49116 | KA491167001 | VALVE-ASSY | |
| 59051 | KA590517011 | GEAR-SPUR | |
| 59071 | KA590717008 | JOINT | |
| 59231 | KA592317005 | FILLER | |
| 92043 | KA920437003 | PIN | |
| 92055 | KA920557002 | RING-O | |
| 92066 | KA920667003 | PLUG | |
| 92066A | KA920667007 | PLUG | |
| 92140 | KA921407003 | BALL | |
| 92145 | KA921457002 | SPRING | |
| 92210 | KA922107012 | NUT | |
| 130 | KA130AA0612 | BOLT-FLANG | |
| 670 |  | KA670D2016 | O-RING 16MM |
