Mowing deck S (42"/107cm) 13AD77KS309 (2018)

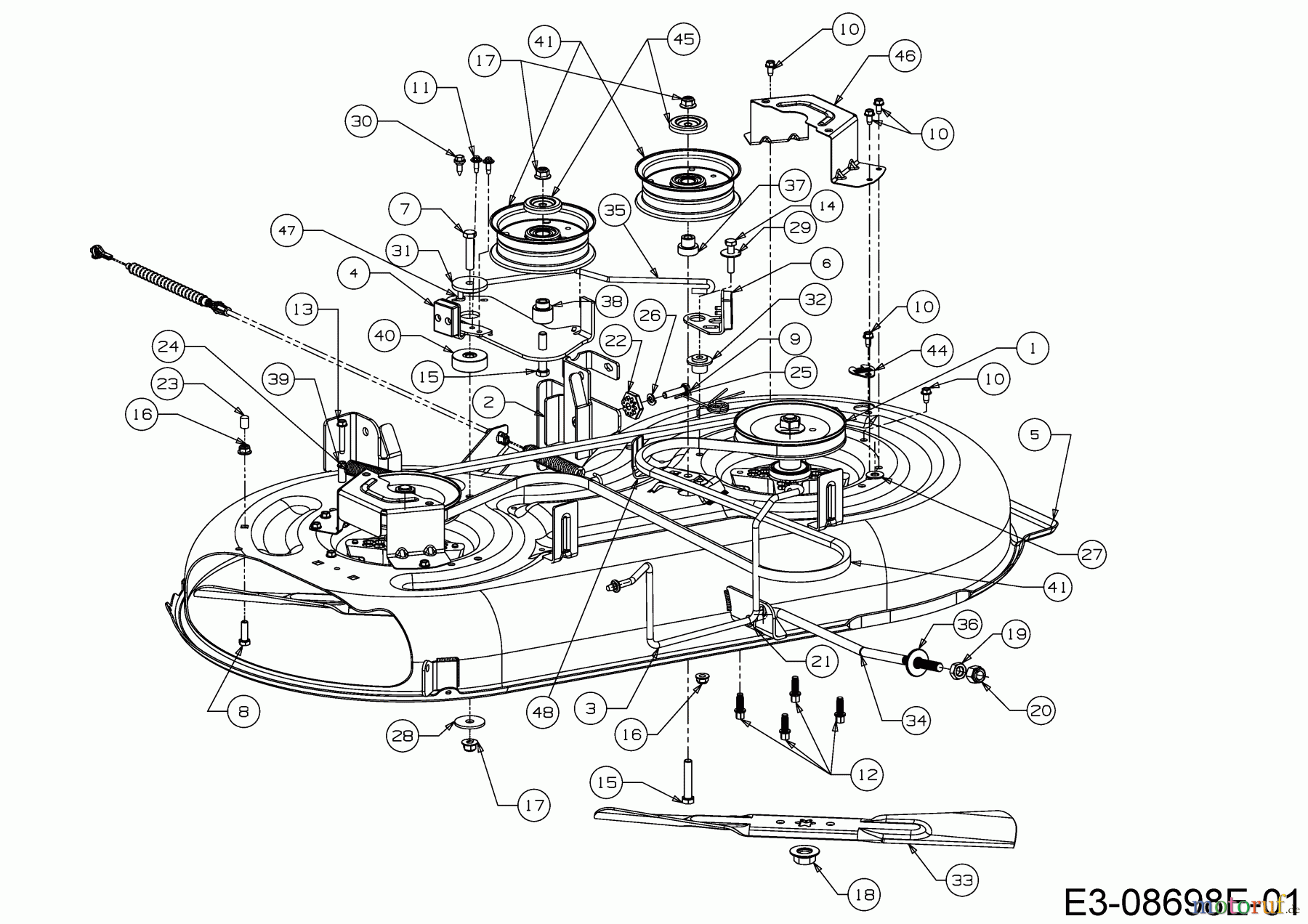

Troy-Bilt Lawn tractors Pony 42 13AD77KS309 (2018) Mowing deck S (42
PosizioneArticolo numeroDescrizione
1 618-06991SPINDLE ASM
2 683-0254BBRKT:ASM:DECK:HNGR LH LT
3 683-04443ROD ASM:KEEPR:BELT 42":PAINT
4 683-05182A
5 683-05185A
6 683-05396
7 Troy-Bilt HHCS:3/8-16:1.75:GR5:STD710-0347HHCS:3/8-16:1.75:GR5:STD
8 Troy-Bilt HHCS:5/16-18:1.00:GR5:STD710-0376HHCS:5/16-18:1.00:GR5:STD
9 Troy-Bilt HHCS:5/16-18:1.25:GR5:STD710-0528HHCS:5/16-18:1.25:GR5:STD
10 Troy-Bilt SCR:TT:1/4-20:0.500:HXINDWSH710-0599SCR:TT:1/4-20:0.500:HXINDWSH
11 710-06133SCR:TAP:CF:M6-1.00:HXACRN
12 710-06322SCR:TT:5/16-18:0.875:HEX
13 Troy-Bilt SCR:TT:1/4-20:1.500:HXINDWISH710-0778SCR:TT:1/4-20:1.500:HXINDWISH
14 710-0805ASCRE.HHCS:5/16-18:1.50:GR5:STD
15 710-3096HHCS:3/8-16:2.00:GR8:STD
16 Troy-Bilt FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
17 Troy-Bilt NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
18 Troy-Bilt NUT:FLG:5/8-18712-0417ANUT:FLG:5/8-18
19 712-3048NUT:JAM:1/2-13:GR5
20 Troy-Bilt NUT:HEXLK:1/2-13:GRB:NYLON712-3083NUT:HEXLK:1/2-13:GRB:NYLON
21 Troy-Bilt PIN COTTER:BOW - TIE 91714-04043PIN COTTER:BOW - TIE 91
22 Troy-Bilt GEAR:DECK:ADJUSTMENT717-04074GEAR:DECK:ADJUSTMENT
23 720-05010CAP:VINYL: .290 x .500
24 732-04629SPR:EXTN:HOOK:.750 X 4.77
25 732-05151ASPR:TORSN:BRAKE:LH
26 Troy-Bilt WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
27 Troy-Bilt WASH:FLAT:.406 X .875 X.059736-0300WASH:FLAT:.406 X .875 X.059
28 736-3039WASH:FLAT:.406 x 1.5 x .105
29 736-3078WASH:FLAT:.344 x 1.00 x 063:HD
30 Troy-Bilt SCR:SHLDR:.368x.113:TT:1/4-20738-04184ASCR:SHLDR:.368x.113:TT:1/4-20
31 738-05082SPCR:SHLDR:.970 x .190
32 738-05272
33 742-04308A
34 747-05141BROD:LIFT:DECK:FRT:13.0
35 747-06538ROD:BRAKE
36 Troy-Bilt CUP:PIVOT:DECK LIFT748-04069ACUP:PIVOT:DECK LIFT
37 Troy-Bilt SPCR:SHLDR:IDLR748-05029ASPCR:SHLDR:IDLR
38 748-05037BSPCR:SHLDR:IDLR PIVOT
39 Troy-Bilt SPCR:0.255 X 0.376 X 1.030 LG750-0566ASPCR:0.255 X 0.376 X 1.030 LG
40 750-06184SPCR:.385 ID x 1.75 OD x .585
41 754-04060CBELT:V:A:96.5:ARAM:C2
42 756-05034APUL:IDLR:4.50" DIA
44 Troy-Bilt PLUG:DECK WASH783-06464PLUG:DECK WASH
45 Troy-Bilt CAP:PULLEY:HD783-08389CAP:PULLEY:HD
46 783-08510A
47 783-08654CBRACKET IDLER
48 783-08690A
