Engine accessories 13AX604G643 (2002)

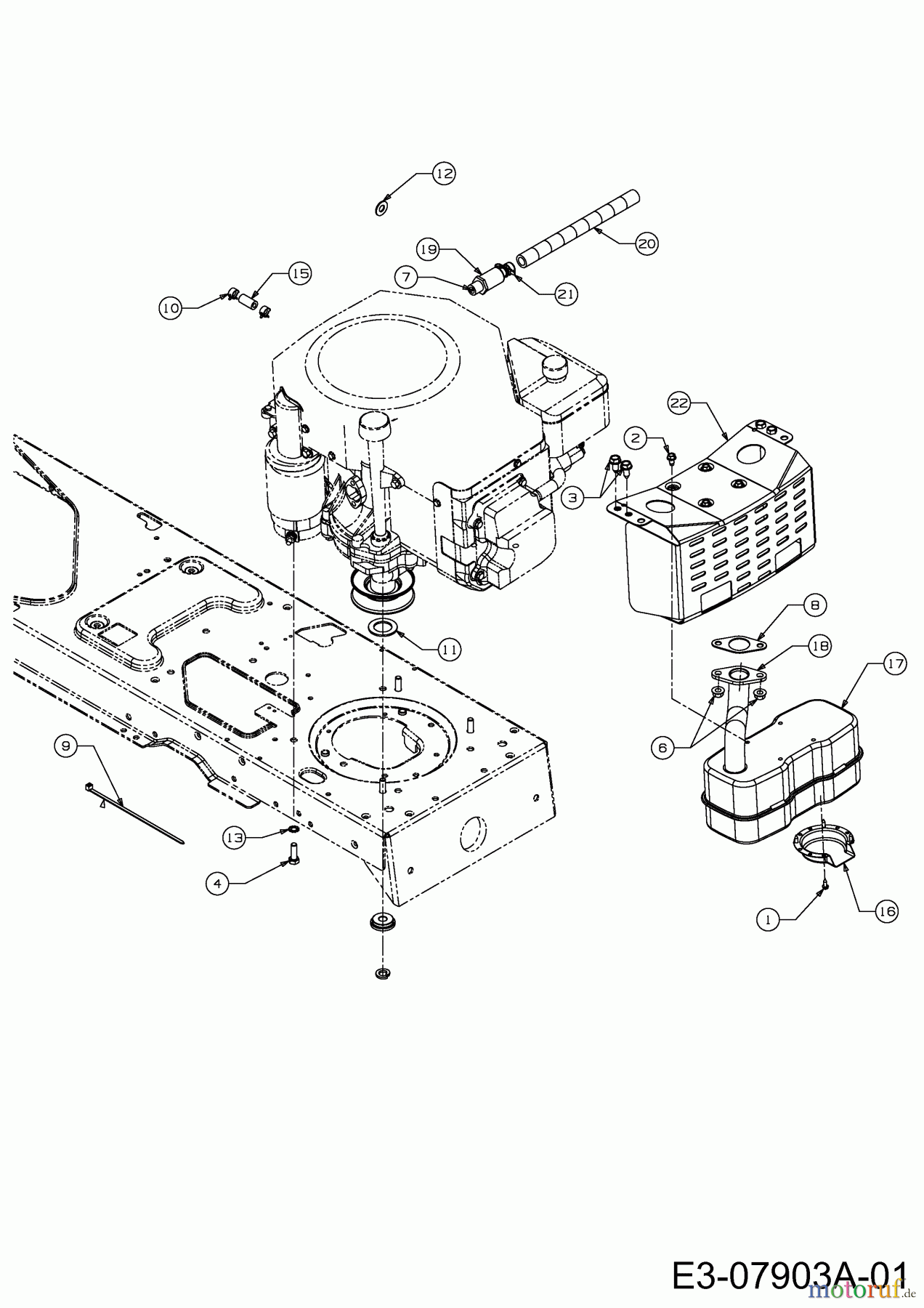

Yard-Man Lawn tractors X 604 G 13AX604G643 (2002) Engine accessories
PosizioneArticolo numeroDescrizione
1 Yard-Man SCR:AB:#8-18:0.500:HXINDWH710-0227SCR:AB:#8-18:0.500:HXINDWH
2 Yard-Man SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
3 Yard-Man SCR:AB:5/16-12:0.750:HXINDWSH710-0726SCR:AB:5/16-12:0.750:HXINDWSH
4 710-3206AHHCS:M8-1.25:25.0:GR8.8:STD
5 Yard-Man NUT:JAM:3/8-16:GR5712-3017NUT:JAM:3/8-16:GR5
6 712-3086NUT:FLANGE:M8-1.25
8 721-0375GSKT:EXH:KOHLER SINGLE
9 725-0157CBL:TIE: 3/16 X .05 X 7.4
10 Yard-Man CLAMP HOSE: .490 DIA726-0205CLAMP HOSE: .490 DIA
11 736-0277WASH:FLAT:1.031 x 1.620 x.095
12 Yard-Man WASH:FLAT:.406 X .875 X.059736-0300WASH:FLAT:.406 X .875 X.059
13 736-0607WASH:LOCK:5/16 EXT TOOTH
15 751-0535FUEL LINE HOSE BLACK
16 Yard-Man DEFLECTOR:MuFFLER751-0564ADEFLECTOR:MuFFLER
17 751-0617AMFLR:SINGLE INLET
18 751-0621A
19 Yard-Man DRN:OIL751-10517ADRN:OIL
20 751-3141HOSE:EXTN:OIL DRAIN
21 751-3142CAP:DRAIN:OIL
22 783-0615CBRKT:MFLR
